Jonker Sailplanes JS Series User Manual

Type: JS Series
Technical Note
Rev: 1.0
Model/s: JS3
No: TN.03-057
Date of Issue: 22/07/2021
Title: Rudder Pedal Footplate Replacement
Page No: 3 of 5
Jonker Sailplanes Pty. Ltd. • Private Bag X1293 • Potchefstroom • South Africa, 2520
MO Number: M667 • DO Number: D667 • AMO Number: AMO1179
Reg No: 2013/134247/07 • VAT No: 494 023 1477
Web: jonkersailplanes.co.za • Technical Support Portal: portal.jonkersailplanes.co.za
3. SPECIAL TOOLS
None.
4. REFERENCES
• MD10-AMM-00-001 - JS-MD 3 Aircraft Maintenance Manual
• MD10-AMM-00-002 - JS-MD 3 Jet Sustainer Maintenance Manual Supplement
5. INSTRUCTIONS
5.1 Part A - Replacement of the Rudder Pedal Footplates

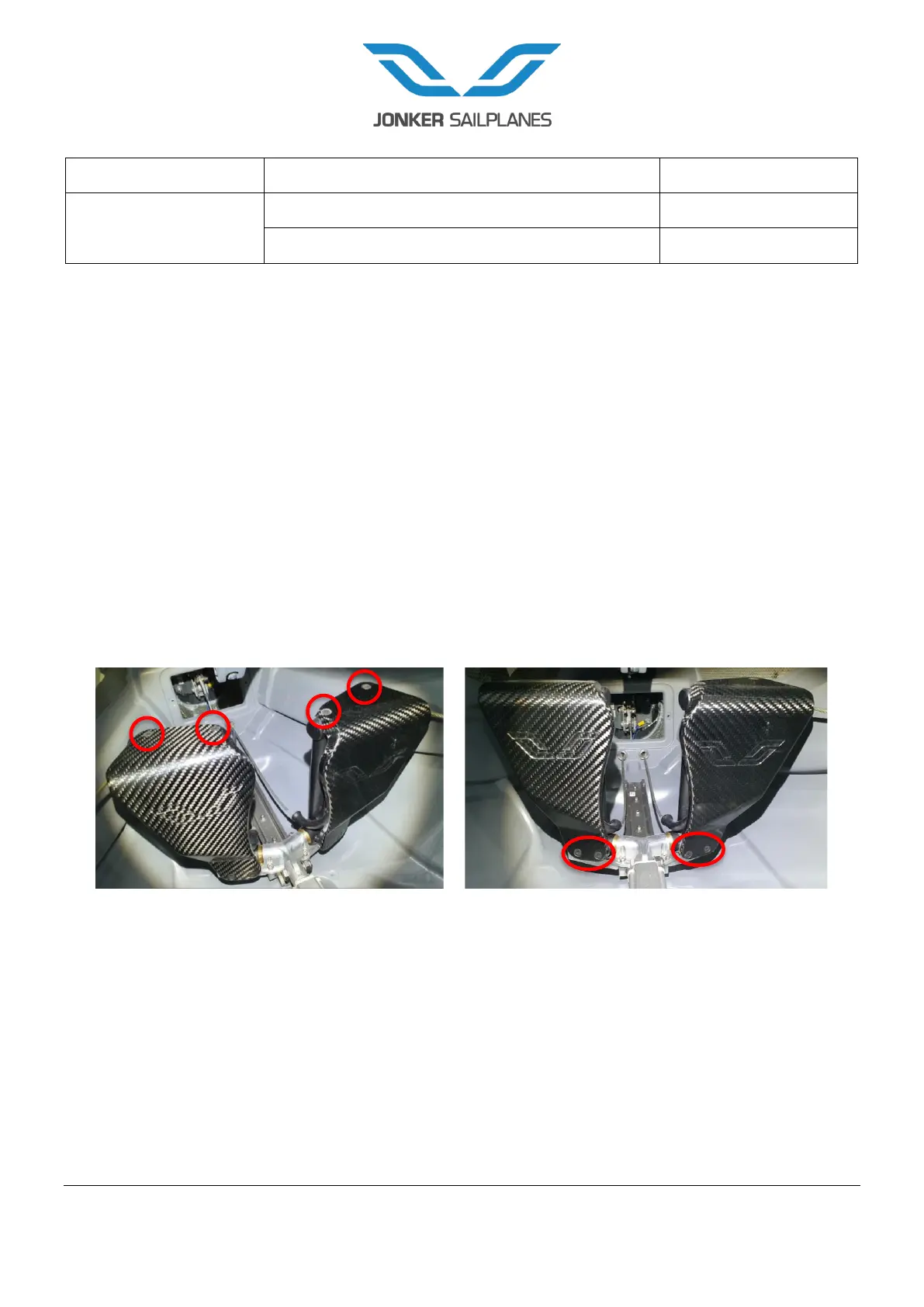

1. Loosen the four M4x10 countersink Allen cap screws located at the top and bottom of each pedal.
2. Remove the old pedals and replace them with the new ergonomically improved version.
3. Apply a small amount of Loctite 243 on each of the M4x10 countersink Allen cap screws used to secure the
pedals in place. Ensure all screws are installed.
4. If required (pilots’ preference) the angle of the rudder pedals can be adjusted slightly forward to improve
the comfort level of the new pedals.
See section “5.2 Part B - Adjustment of the Rudder Pedal Angles”.
