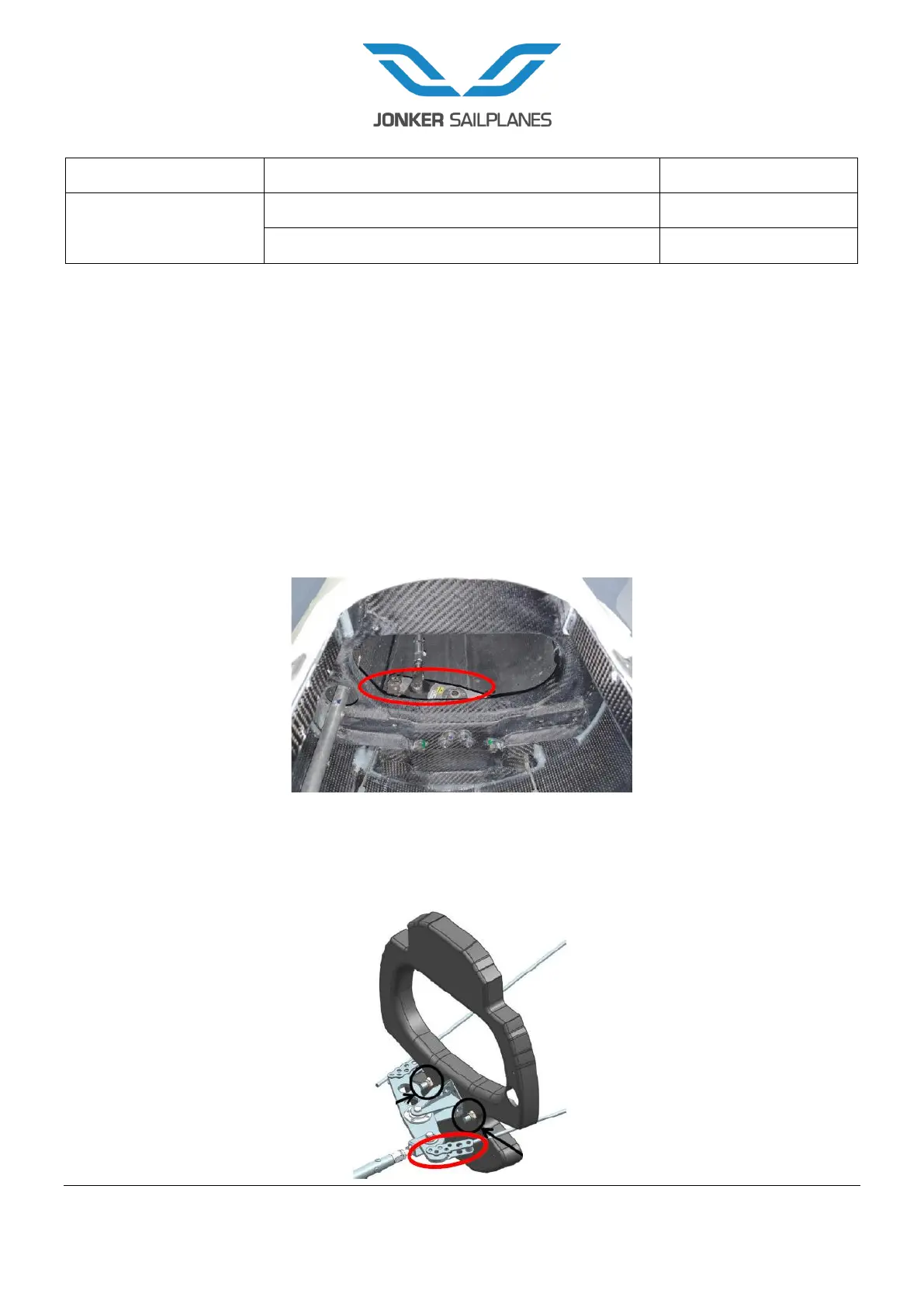

5.2 Part B - Adjustment of the Rudder Pedal Angles
NOTE: Part B is affecting the control systems and must be signed off by an Approved Maintenance
Inspector and be certified in the sailplane inspection documents and/or sailplane logbook.
This part is only required if the angle of the rudder pedals needs to be adjusted to improve the
comfort to the pilot.
1. If installed, remove the Jet engine box and Jet ECU as described in the Jet Sustainer Maintenance Manual.
2. Locate the rudder bell crank BC1R behind the B9 bulkhead in the engine bay area.
3. The adjustment can be made by relocating the rudder cable adjustment plates connected to the rudder bell
crank.
