MAINTENANCE
A
2 cm

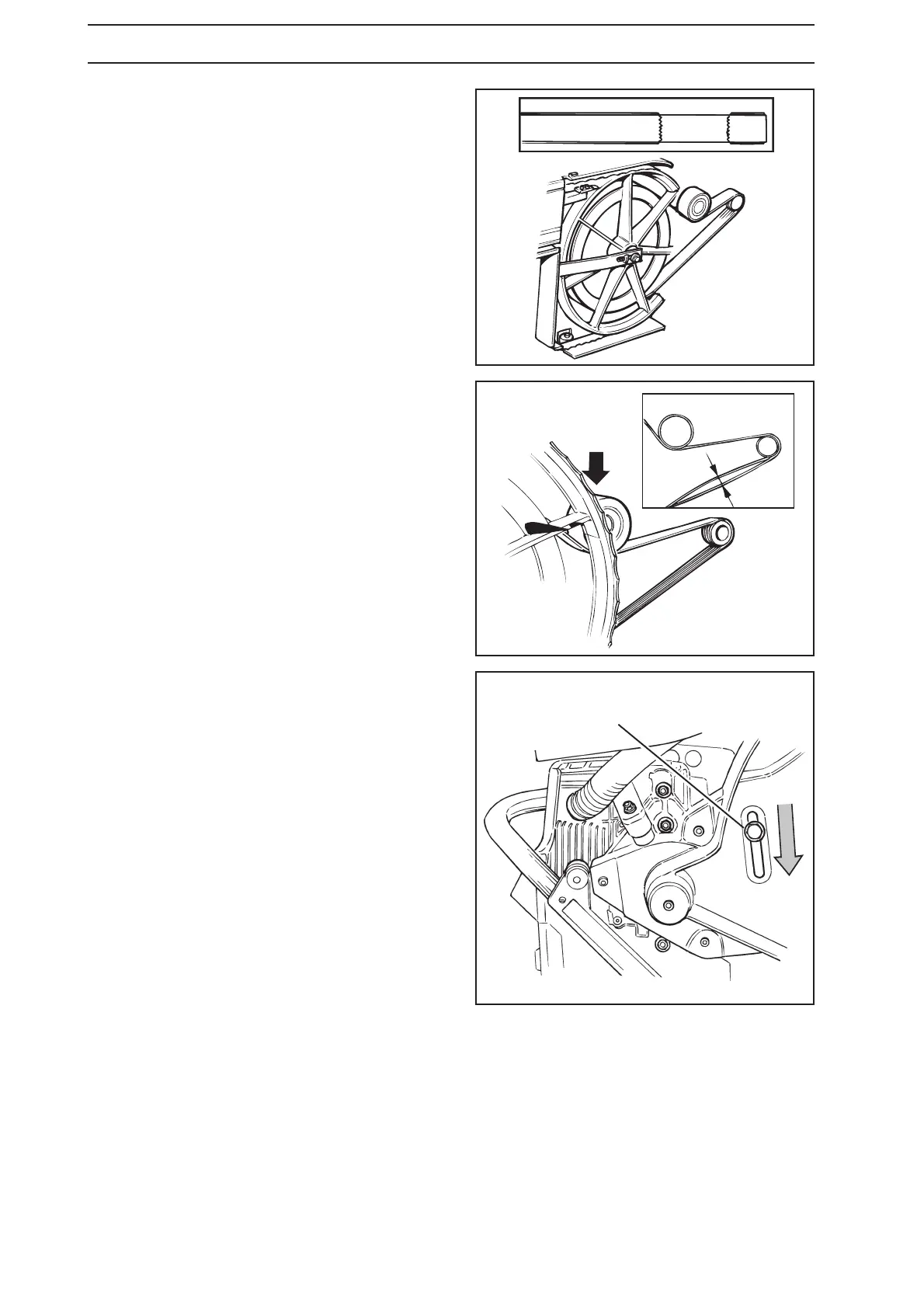

To adjust the drive belt
Adjust the drive belt according to the following
instructions:
1. Check that the belt is resting in position on
the two pulleys and on the tensioning pulley.
2. Tension the belt by pressing the tensioning
pulley over the belt and tighten screw (A).
When the belt is correctly tensioned, the
longer (lower) section of the belt should
deflect (pushing it with a finger) one centime-
tre in either direction.
