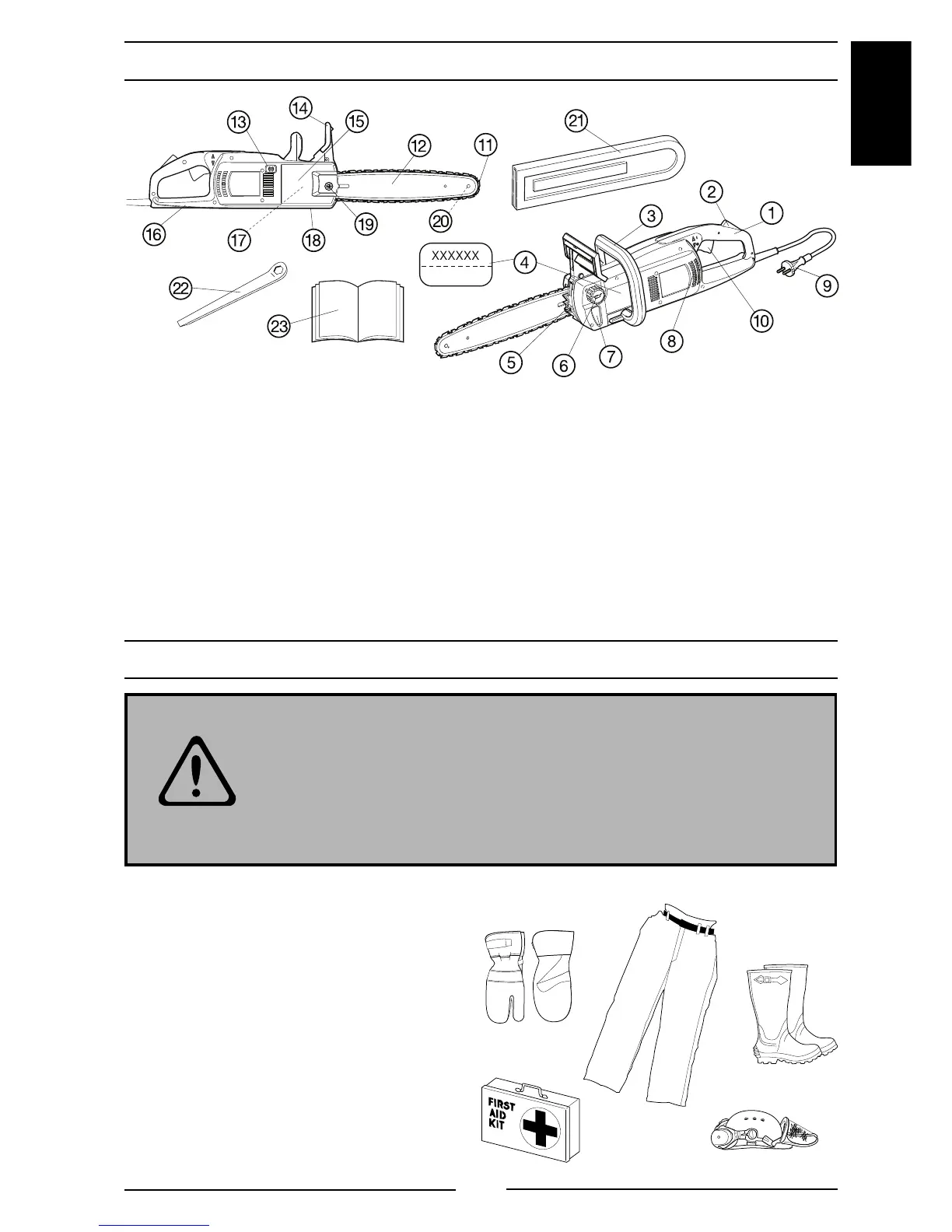

1. Rear handle
2. Power trigger lockout
3. Front handle
4. Serial No. plate
5. Chain tensioner
6. Chain oil reservoir
7. Chain oil level
8. Ventilation slots
9. Power cable
10. Power trigger
11. Chain
12. Guide bar
13. Chain brake release button
14. Kickback guard
15. Chain drive cover
16. Right hand guard - protects right hand
in case chain breaks or derails
17. Drive sprocket
- concealed by chain drive cover
18. Chain catcher - defl ects chain in case
chain breaks or derails
19. Guide bar nut
20. Nose sprocket
21. Scabbard
22. Combination tool
23. Operator’s manual
CHAIN SAW PARTS
• Dress safely. Avoid jewellery and loose-fitting clothing,
which may be caught in moving parts. Approved safety mitts
and sturdy footwear which gives a good footing are recom-
mended (also for helpers).
Wear: - Approved face mask or safety goggles
- Approved hearing protection
- Approved helmet
- Approved safety boots with protective rein-
forcement, steel toecap and non-slip soles
- Clothing which is snug without hampering
movement
- Approved gloves with protective reinforcement
Always keep a fi rst-aid kit on hand!
SAFE USE
CAUTION!
Never operate a chain saw with one hand only. Doing so may lead to i serious injury to operator,
helpers or bystanders. An electric chain saw is designed for operation with both hands.
Use of accessories not conforming to the recommendations outlined in the Operating
Instructions could lead to injury.
The chain saw must not be modifi ed in any way under any circumstances without the
permission of the manufacturer. Use only original accessories. Unauthorized modifi cations and/
or accessories may cause serious or fatal injury of the operator or others.
