26 – English
Repair instructions
4

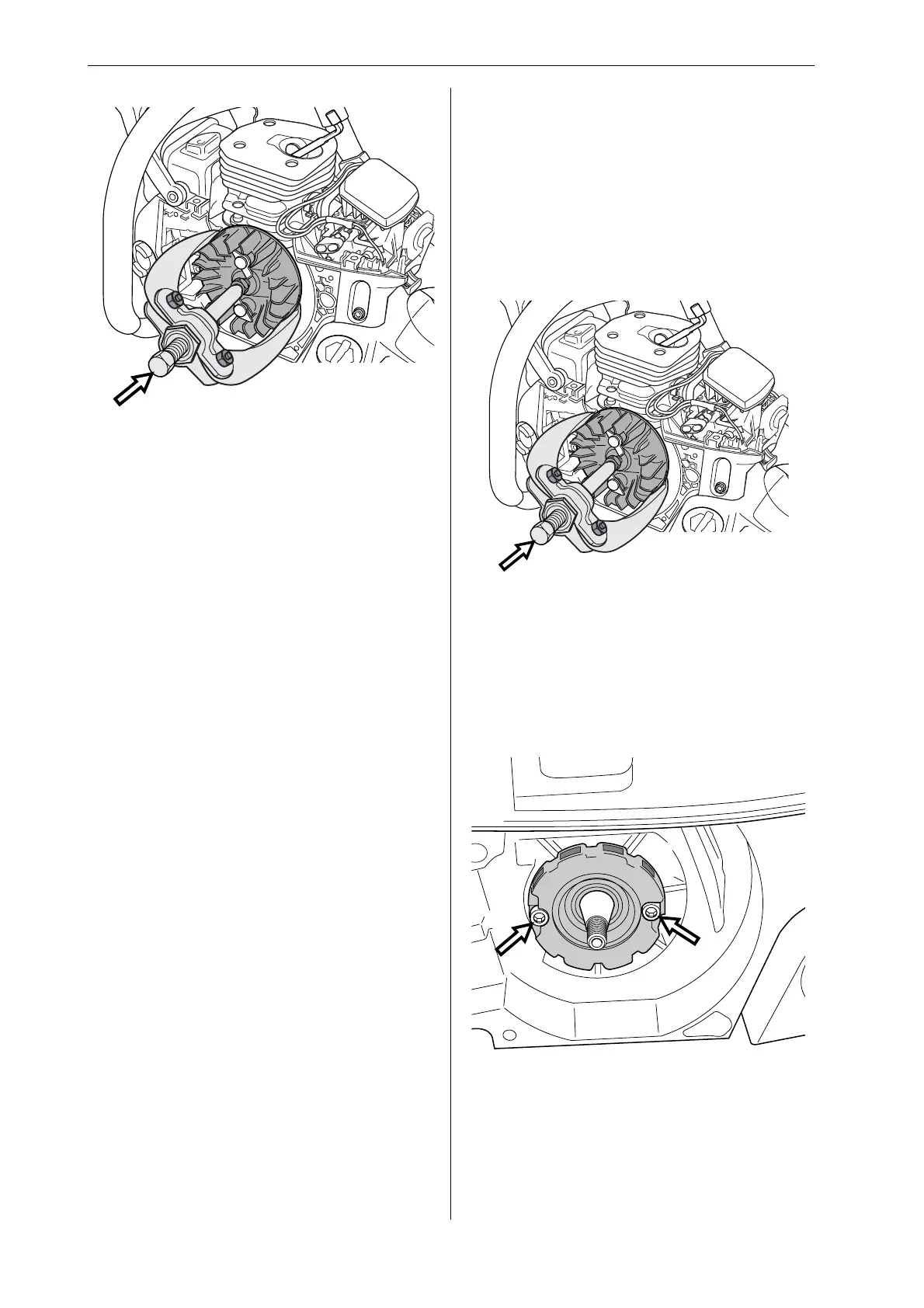

Position puller 504 90 90-02 over the magnets and
counterweight on the fl ywheel. Tighten 2–3 turns
and tap the head of the puller with a metal mallet
to release the fl ywheel. Remove the puller, nut and
washer. Lift off the fl ywheel.
Cleaning and inspection
• Clean all parts, especially the tapers on the
fl ywheel and shaft.
• Check that the fl ywheel is not cracked or dam-
aged in any other way.
Replacing the generator, model
CS 2147 W, CS 2149 W, CS 2152 W,
CS 2156 W, CS 2159 W
1
Remove the cylinder cover. Disconnect the HT lead,
remove the spark plug and fi t piston stop 502 54
15-01 in its place. Take off the starter assembly,
release the leads from the cable guide and remove
it. Remove the cover from the hand grip.
2
Loosen the fl ywheel nut using a suitable socket
and unscrew it until it is fl ush with the end of the
shaft. Position puller 504 90 90-02 over the mag-
nets and counterweight on the fl ywheel. Tighten
2–3 turns and tap the head of the puller with a
metal mallet to release the fl ywheel. Remove the
puller, nut and washer. Lift off the fl ywheel.
3
Unscrew the two bolts from the generator but leave
the generator in place.
