ASSEMBLY
English – 19
115 11 98-95 Rev.1 2009-01-20

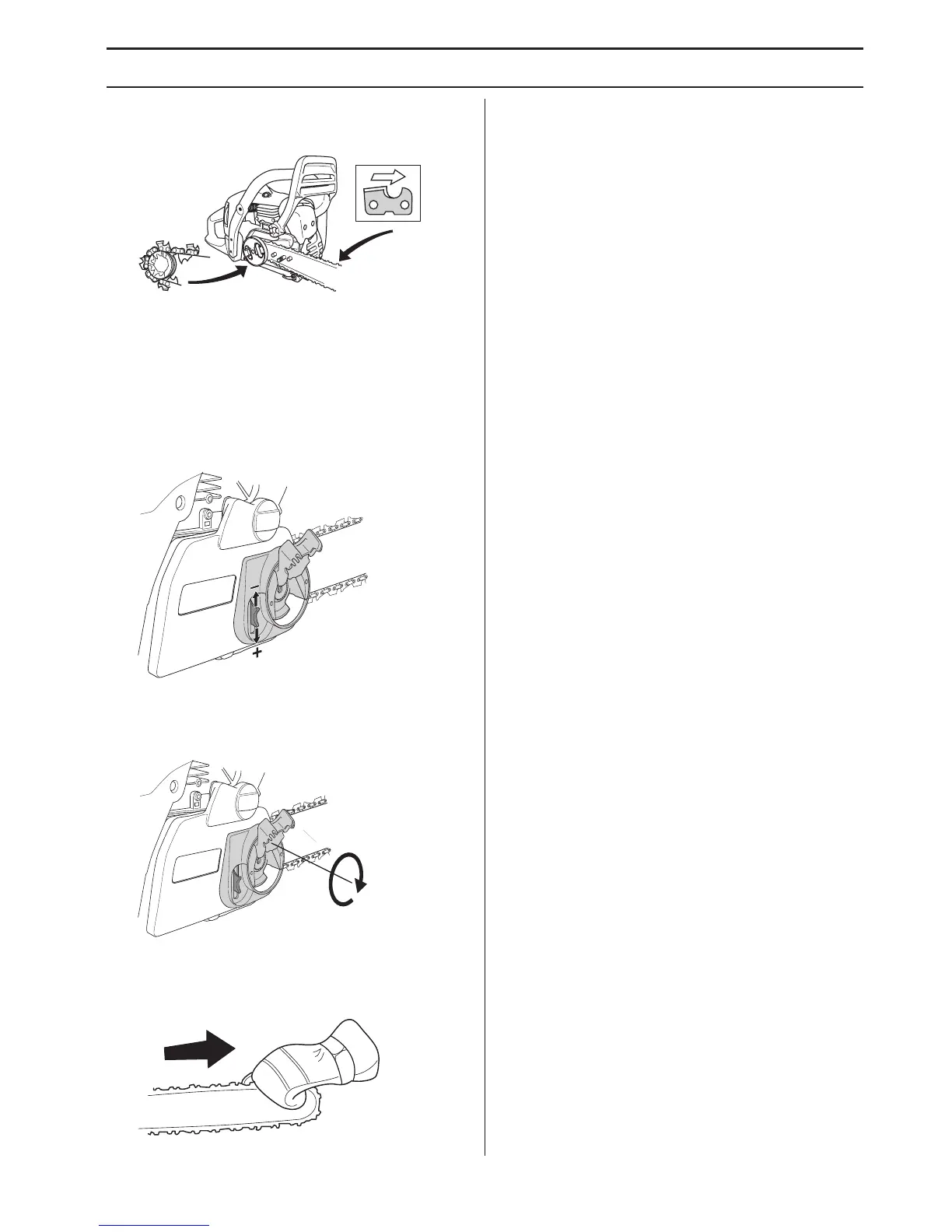

Fit the bar over the bar bolts. Place the bar in its rearmost
position. Place the chain over the drive sprocket locate it
in the groove on the bar. Begin on the top edge of the bar.
Make sure that the edges of the cutting links are facing
forward on the top edge of the bar.
Mount the clutch cover and remember to fit the chain
adjuster pin in the hole in the bar. Check that the drive
links of the chain fit correctly over the drive sprocket and
that the chain is correctly located in the groove in the bar.
Tension the chain by turning the wheel down (+). The
chain should be tensioned until it does not sag from the
underside of the bar.
The chain is correctly tensioned when it does not sag from
the underside of the bar, but can still be turned easily by
hand. Hold up the bar tip and tighten the bar knob by
turning the knob clockwise.
When fitting a new chain, the chain tension has to be
checked frequently until the chain is run-in. Check the
chain tension regularly. A correctly tensioned chain
ensures good cutting performance and long life.
