Jonsered CS 2240 User Manual

6 – English
WHA T IS WHA T?
115 11 98-95 Re v .1 2009-01-20

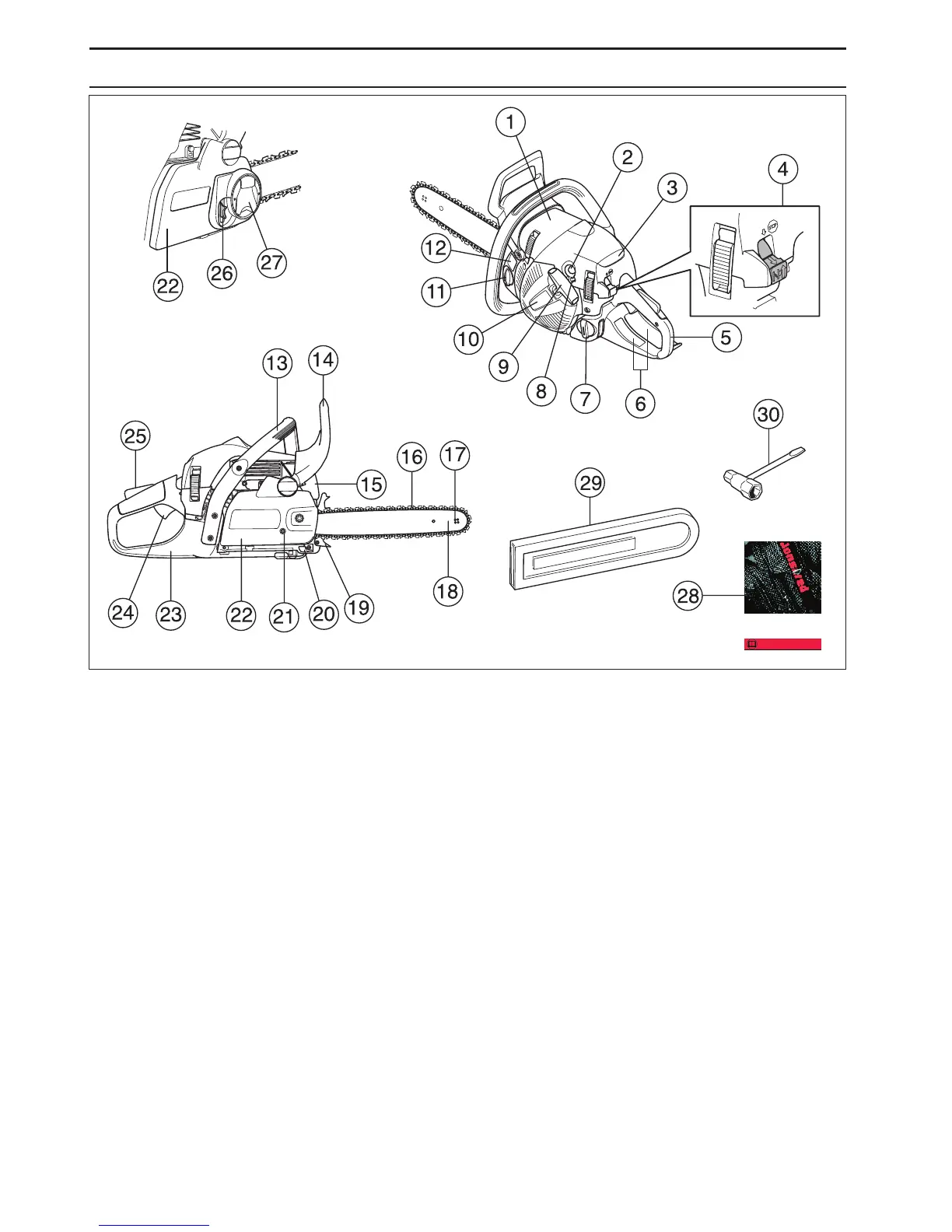

What is what on the c hain saw?
1 Cylinder cover
2 Air purge
3 Start reminder
4 Combined start and stop switch
5 Rear handle
6 Information and warning decal
7 Fuel tank
8 Adjuster screws carburetor
9 Starter handle
10 Starter
11 Chain oil tank
12 Product and serial number plate
13 Front handle
14 Front hand guard
15 Muffler
16 Chain
17 Bar tip sprocket
18 Bar
19 Bumper spike
20 Chain catcher
21 Chain tensioning screw
22 Clutch cover
23 Right hand guard
24 Throttle control
25 Throttle lockout
26 Chain tensioner wheel (CS 2240S)
27 Knob (CS 2240S)
28 Operator’s manual (EPA)
29 Bar guard
30 Combination spanner

Jonsered CS 2240 Specifications

General

Engine Displacement	40.9 cm³
Power Output	1.8 kW
Weight (excluding cutting equipment)	4.4 kg
Chain Pitch	3/8"
Fuel Tank Volume	0.37 liters
Oil Tank Volume	0.25 liters
