Jonsered CS 2252 Workshop Manual

14 - English

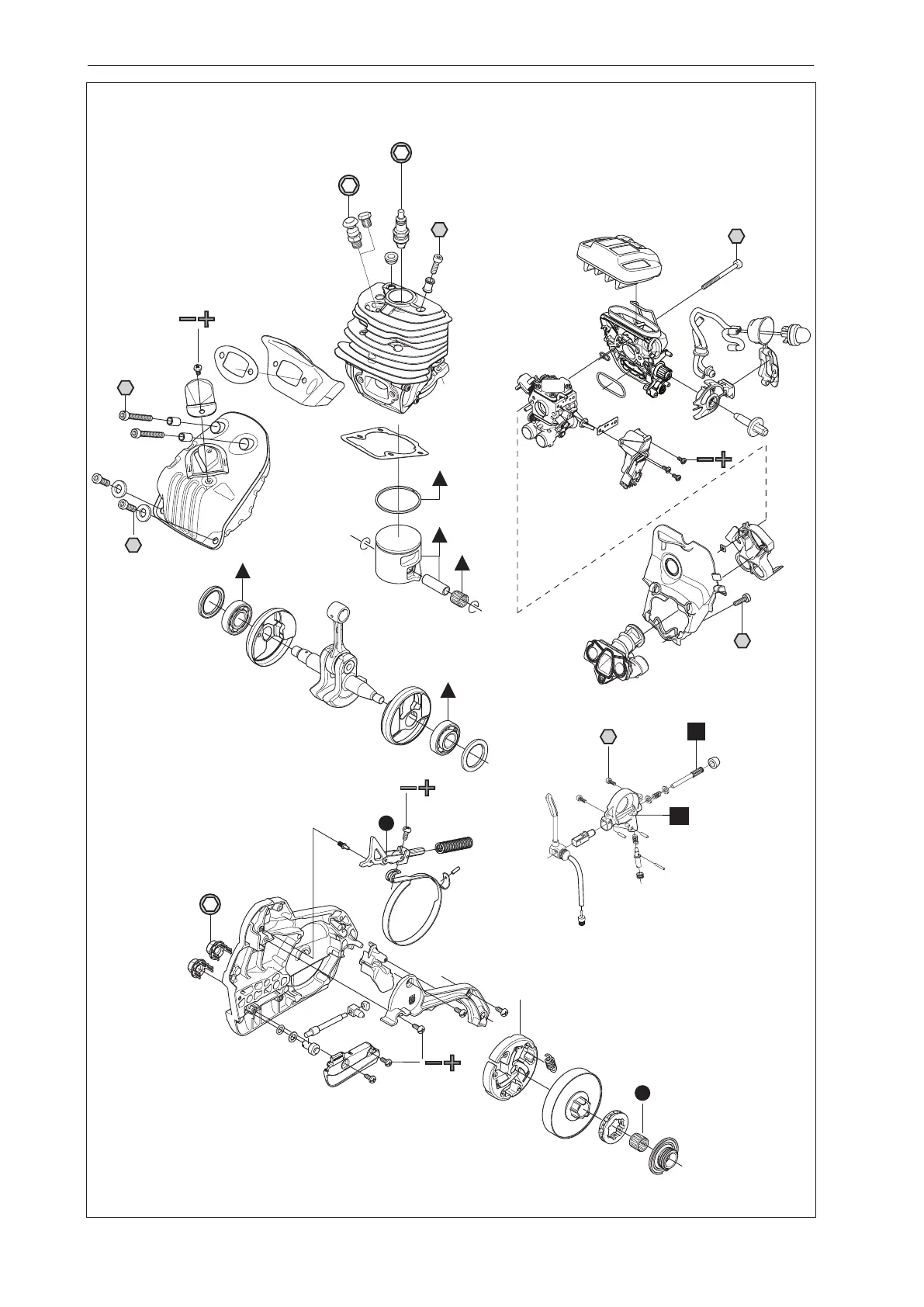

5 Service data
Service data
14-16Nm 5mm
1,5-2Nm 4mm
5-6Nm 4mm
25Nm
1-2Nm
8-10Nm 4mm
4-5Nm 4mm
18-20Nm 16mm
16-20Nm 5mm
11-13Nm 13mm
12-14Nm 13mm
1-2Nm
1-3Nm
1-2Nm
s = Lubricate using two-stroke oil.
n = Lubricate using chain oil.
l = Lubricate using grease.
The numbers by the components to be
assembled with screws state the tightening
torque in Nm.
Key
