English - 19
NOTE!
After repairing, the chain brake must be in-
spected in line with the instruction below.

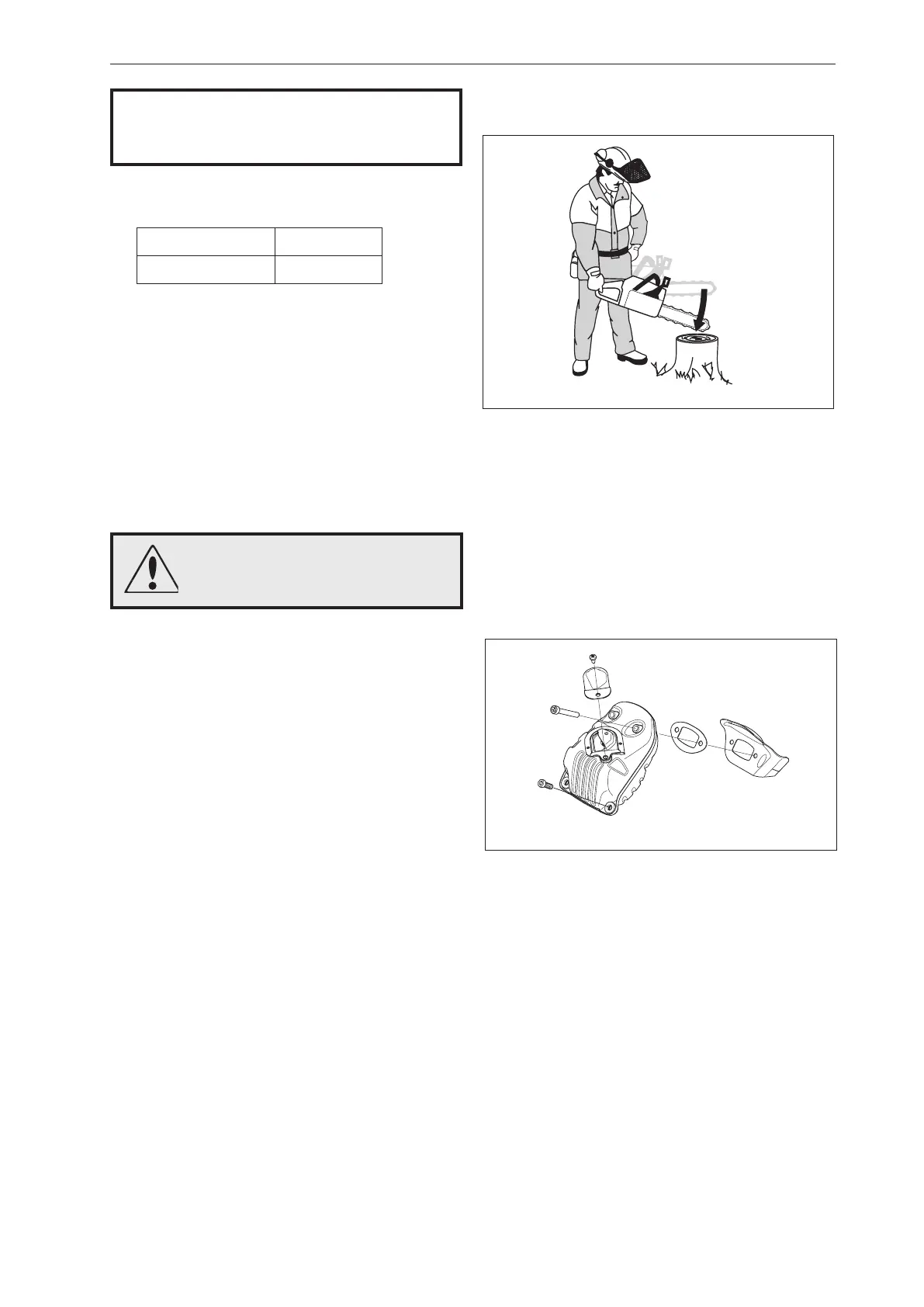

Functional inspection:
Do not turn on the motor when carrying out this
inspection.
Bar length Height
38 cm/15” 50 cm/20"
• Hold the chain saw over a stable surface. The
distance between the bar and the surface is
shown in the table above.
• Let go of the front handle and let the chain saw
drop toward the surface underneath.
• When the bar hits the surface the chain brake
must trigger.
Safety equipment
Fig 11
WARNING!
Do not touch the muffler until it
has cooled. Risk of burns.
6.3 Dismantling the muffler
1
Remove the cylinder cover, mufer, gasket and
cooling n.
2
The saw is tted with spark arrestor mesh, which is
removed. If necessary, use the combination span-
ner to push down the plate edge and remove the
spark arrestor mesh. See gure 12.
Cleaning and inspection
• Clean and check all components carefully.Parts
must be replaced if cracked or show signs of
other defects. Always use original spare parts.
• The spark arrestor mesh is best cleaned with a
wire brush.
• The mesh must be replaced, if damaged. The
saw will overheat if the mesh is clogged resul-
ting in damage to the cylinder and piston.
• Never use a saw with a clogged or defective
mufer.
Fig 1
