36 - English
Repair Instructions

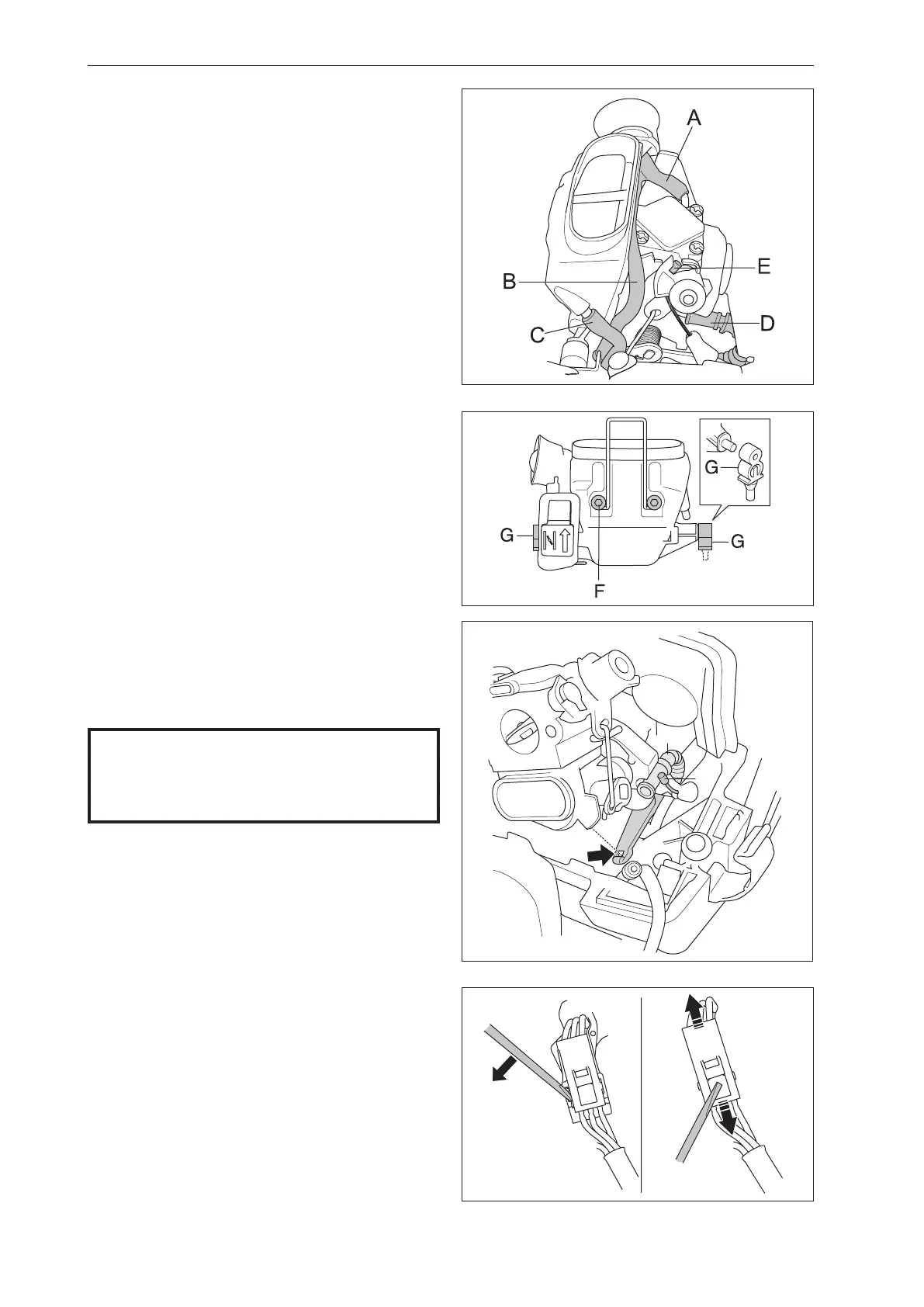

Dismantling the carburettor
1
Dismantle the cylinder cover and the air lter.
2
Loosen the screws, F. Unhook the rubber attach-
ment G on both sides. See Figure 35.
Fig 35
Fig 34
6
Use a small at screwdriver to snap open the con-
nector from the black attachment. Separate the
connector by pressing down the catch with a at
screwdriver and then pulling the unit apart. See
gure 37.
3
Loosen the suction hose A, the return hose B, and
the tank bleeding hose C. See gure 34.
4
Remove the air lter holder. Let the air lter holder
remain in place in the cabling for the stop button.
Loosen the fuel hose, D. Unhook the throttle cable,
E. See gure 34.
5
NOTE! Press down the lug to release the carburet-
tor. Lift out the carburettor. See gure 36.
D
E
Fig 36
NOTE!
The lug on the carburettor is securely
attached to the partition wall.
Fig 37
