NOTE: Make sure unit is assembled cor-
rectly as shown in this manual.

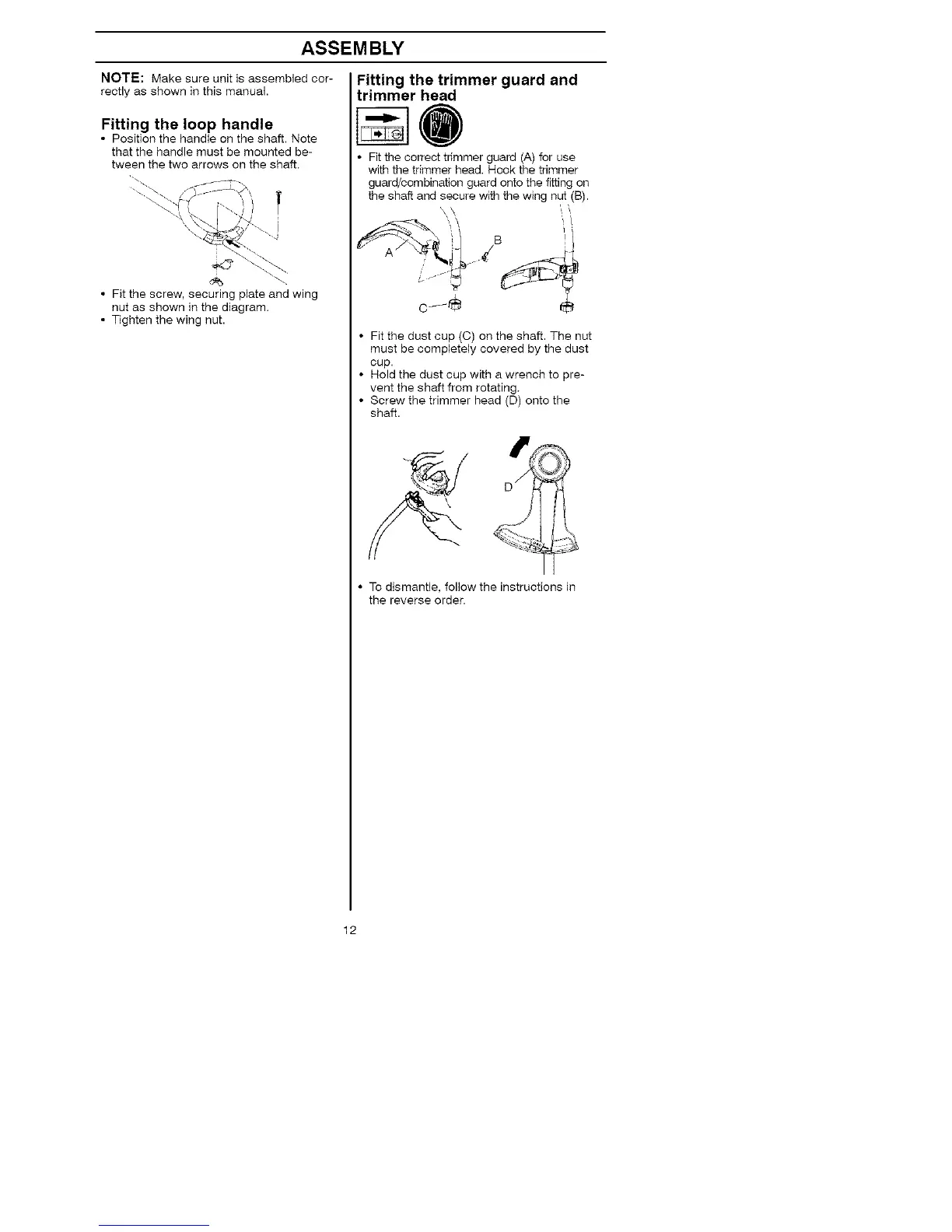

ASSEMBLY
Fitting the trimmer guard and
trimmer head
Fitting the loop handle
• Position the handle on the shaft. Note
that the handle must be mounted be-
tween the two arrows on the shaft,
f
I
• Fit the screw, securing plate and wing
nut as shown in the diagram.
• Tighten the wing nut.
• Fit the correct trimmer guard (A) for use
with the trimmer head. Hook the trimmer
guard/combination guard onto the fitting on
the shaft and secure with the wing nut (B).
_-._. "_\ _"_'i
';2;
• Fit the dust cup (C) on the shaft. The nut
must be completely covered by the dust
cup.
• Hold the dust cup with a wrench to pre-
vent the shaft from rotating.
• Screw the trimmer head (D) onto the
shaft.
• To dismantle, follow the instructions in
the reverse order.
