OPERATION
KNOW YOUR TRACTOR
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

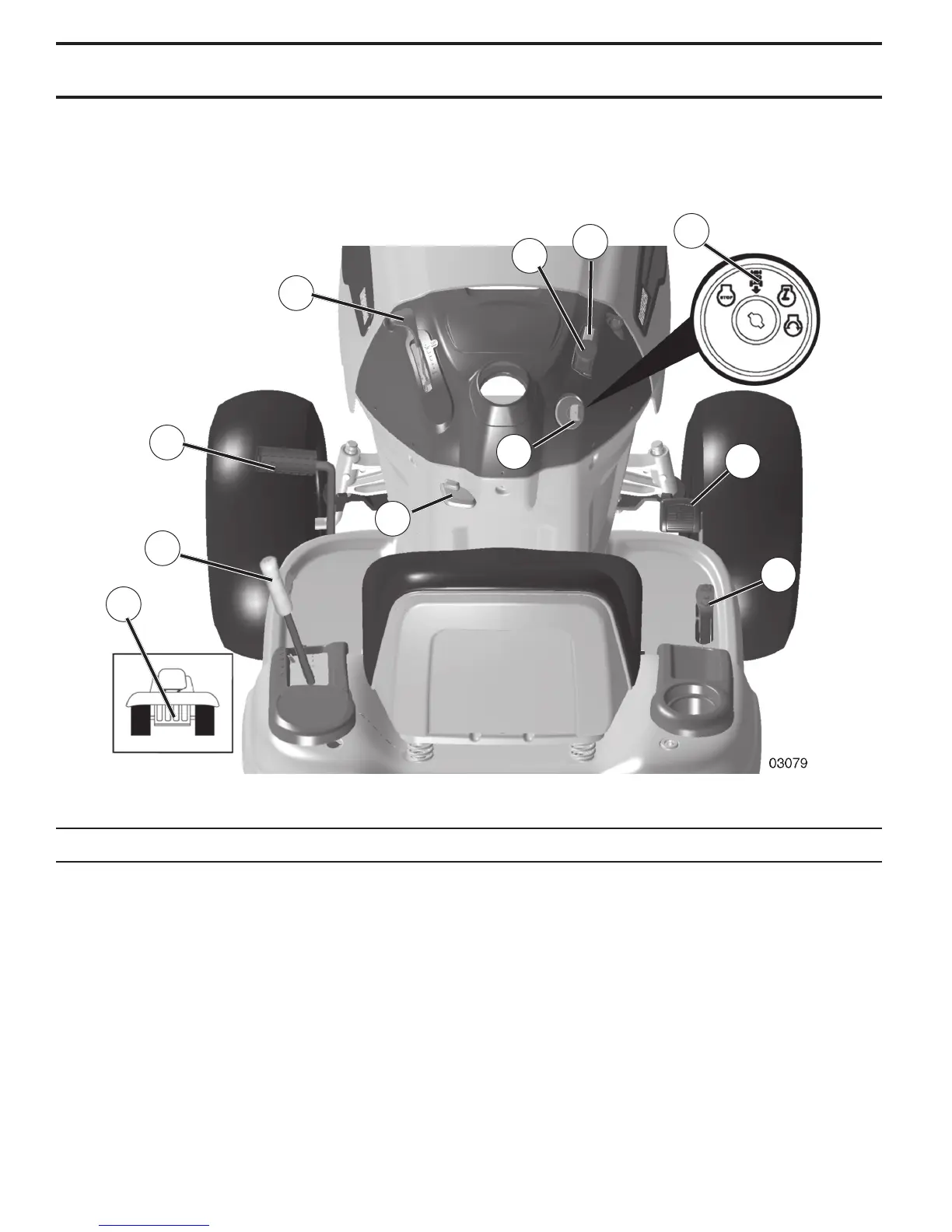

Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments.
Save this manual for future reference.
Our tractors conform to the safety standards of the American National Standards Institute.
Fig. 5
F
A
D
B
C
H
G
E
M
K
L
(A) ATTACHMENT LIFT LEVER - Used to raise, lower,
and adjust the mower deck or other attachments mounted
to your tractor.
(B) BRAKE PEDAL - Used for braking the tractor and
starting the engine.
(C) PARKING BRAKE LEVER - Locks brake pedal into
the brake position.
(D) THROTTLE/CHOKE CONTROL - Used for starting
and controlling engine speed.
(D) THROTTLE CONTROL - Used to control engine speed.
(E) ATTACHMENT CLUTCH SWITCH - Used to en gage the
mower blades or other attachments mounted to your trac tor.
(F) IGNITION SWITCH - Used for starting and stopping
the engine.
(G) ROS “ON” POSITION - Allows operation of mower
deck or other powered attachment while in reverse.
(H) LIGHT SWITCH - Turns the headlights on and off.
(L) REVERSE DRIVE PEDAL- Used for reverse move-
ment of tractor.
(M) FREEWHEEL CONTROL - Disengages transmission for
pushing or slowly tow ing the trac tor with the engine off.
