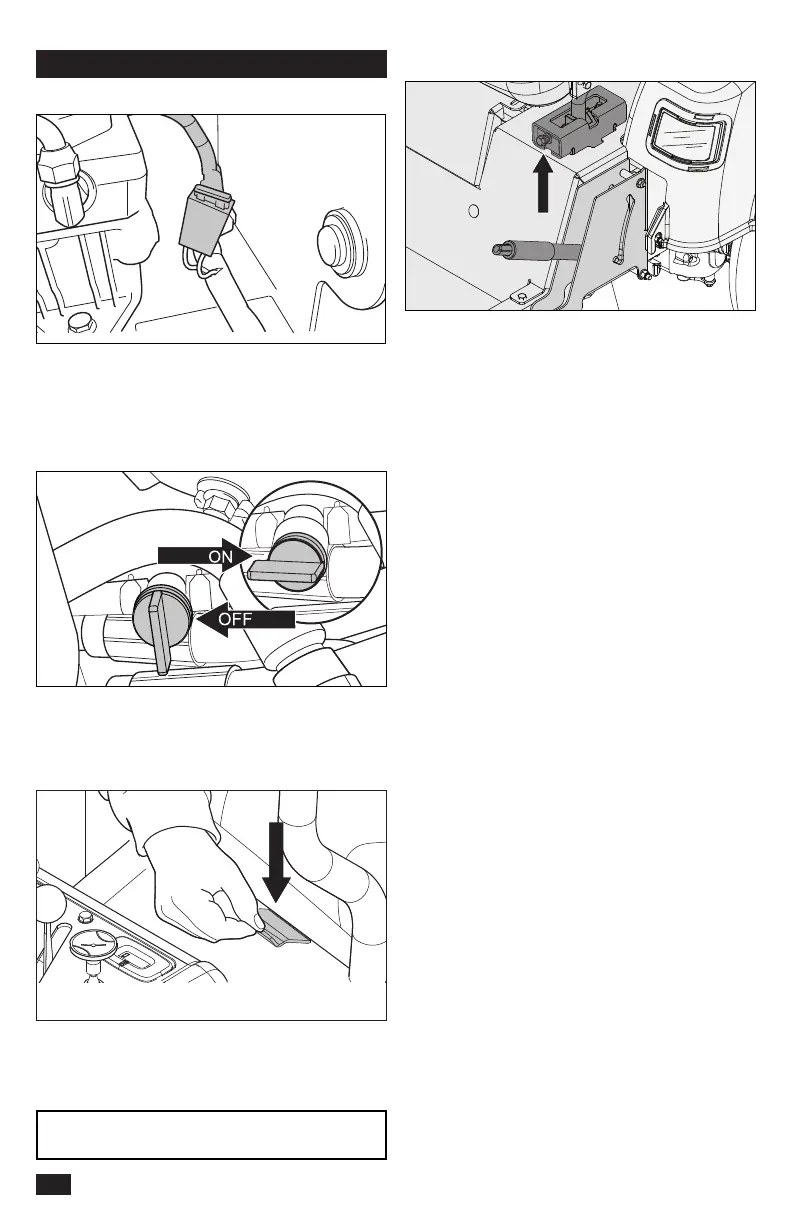

The 20 amp primary fuse is located on the left
hand side of the machine. It is accessed by tilting
the seat forward. The fuse is a at pin type used
in automobiles.
Fuel Shut Off Valve
The fuel shut off valve is located at the left rear of
the seat. The valve is off when the handle tab is
turned perpendicular to the fuel line.
Tracking
If the mower is not tracking straight, check the
air pressure in both rear tires. Recommended air
pressure for the rear tires is 15 psi (1 bar).
1. Tracking adjustments are made using the
tracking bolts. The bolts act as limiting devices
for the motion control levers when in the full-
forward position.
2. For preliminary tracking adjustment, move
unit to an open, unobstructed area such as an
empty parking lot or open eld.
3. Back the bolts out until ush with nut.
4. Test operate unit by driving it at full throttle and
the full forward position on both motion control
levers. Gradually turn in the tracking bolt on
the right hand side until the unit noticeably
starts drifting right.
5. Drive forward at full throttle with both motion
control levers in the full forward position.
Gradually turn in the left tracking bolt until unit
tracks straight.
Fuse
Seat Adjustment Lever
The seat can be adjusted lengthways. When
making adjustments, the lever under the right side
of the seat is pulled up, after which the seat can
be moved backward or forward.
IMPORTANT INFORMATION The seat must
not be adjusted while unit is in motion.
14
CONTROLS
