6 Functional description
Tron AIS-SART consists of a housing sealed at the lower end with a bottom
lid. It may be split into the following main parts:
• Transmitter module
• Battery module
• Bottom lid
• LED indicator

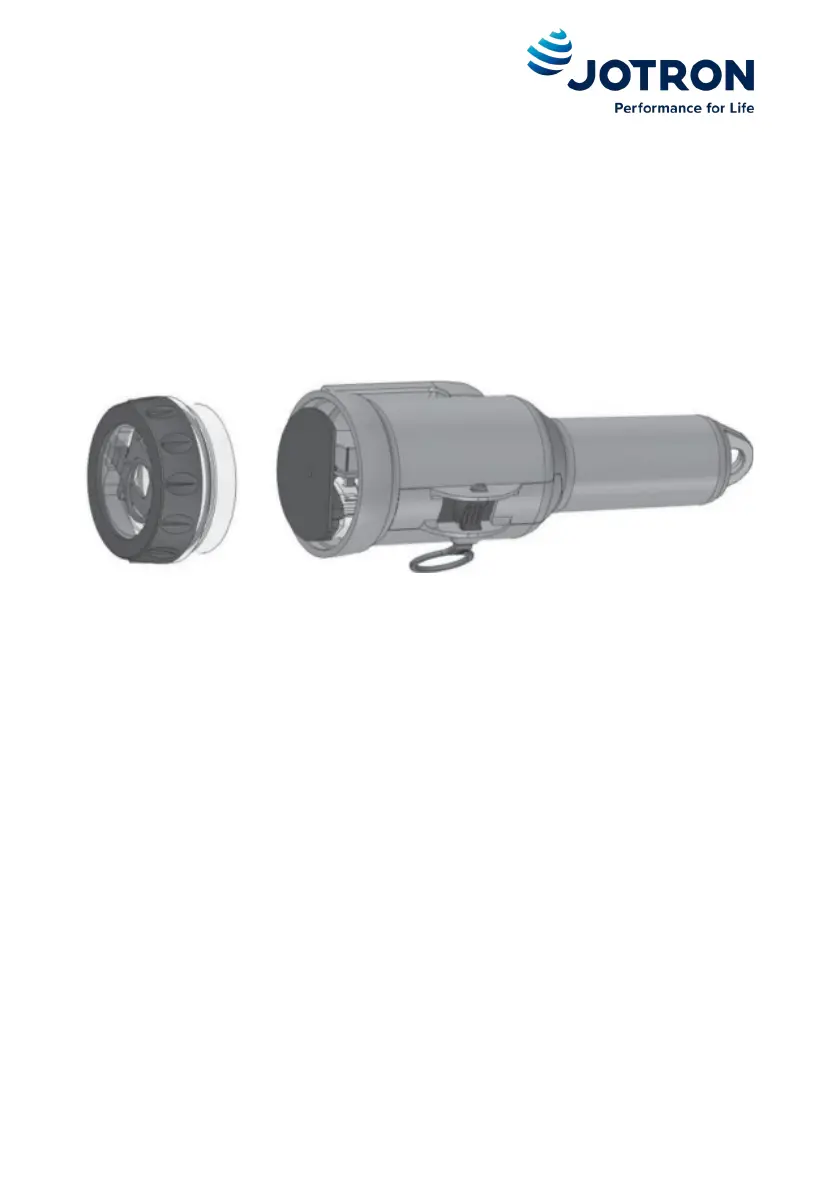

Figure 2 Illustration: Tron AIS-SART disassembled
6.1 Transmitter module
Tron AIS-SART transmitter module is inserted into the Tron AIS-SART
housing. It consists of the main board, antenna and two screen boxes
which is mounted in the housing. It can be divided into the following
sections:
1. Transmitter module
2. Antenna
3. Screen boxes
4. Base of antenna
