Top outlet
The product is factory-fitted for a top outlet. The inner rear heat
shield should be raised to protect the rear wall against heat from
the flue pipe.

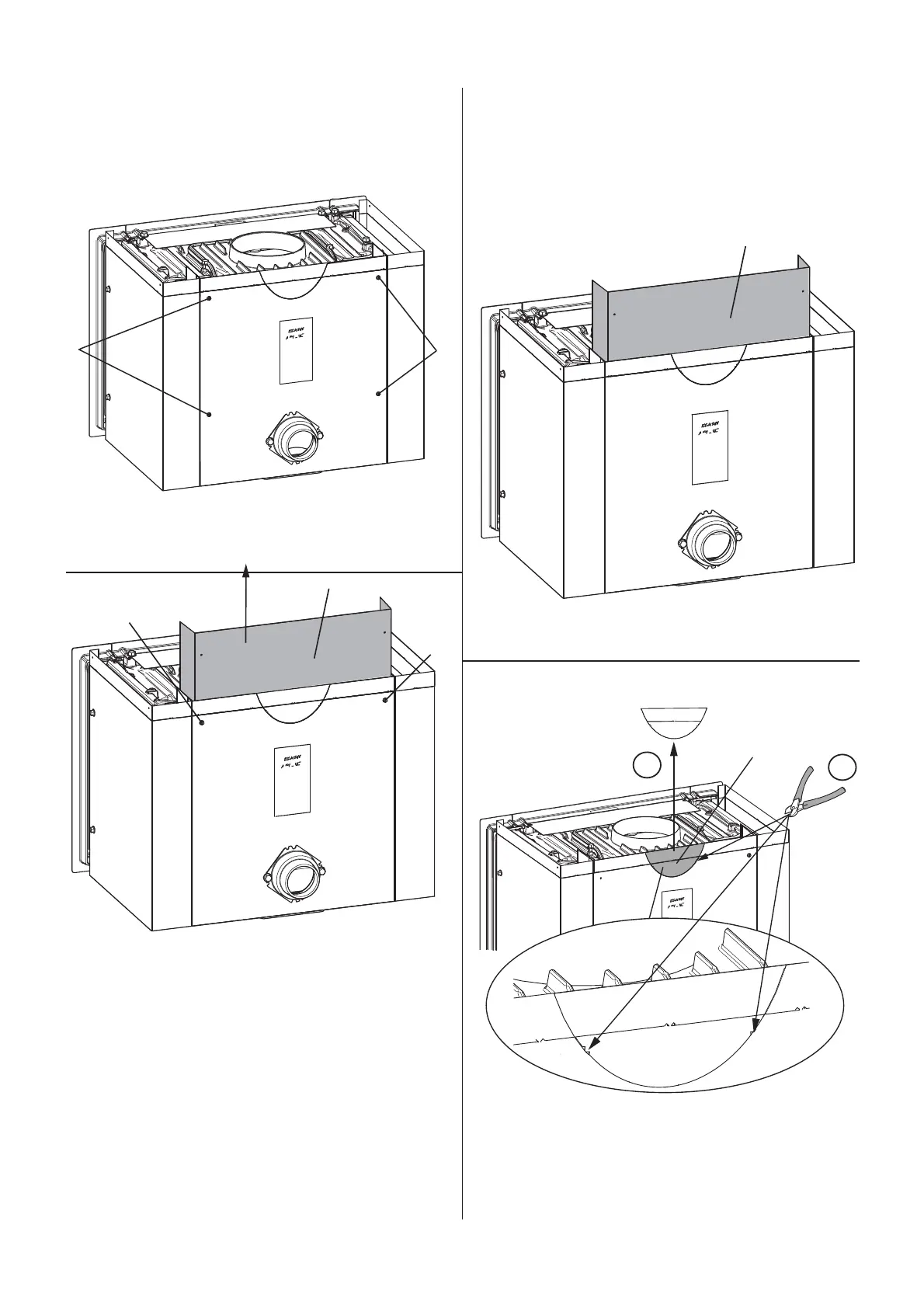

Fig. 6
A
A
1. Loosen the four screws (A).
Fig. 7
B
B
A
2. Pull the inner heat shield (A) up.
3. Secure it in place using the two upper screws (B).
Converting to a rear outlet
The smoke outlet can be converted to a rear outlet if necessary.
The smoke bell can also be installed from the inside if the space
where the burn chamber is to be installed is confined.
Remove the four screws that were mentioned in Fig. 6.
Fig. 8
A
1. Remove the inner heat shield (A).
Fig. 9
A
1
2
B
B
2. If using a rear outlet, the curved section (A) must be removed
first. Cut along the knock-out holes (B). Then snap off the
knock-out section.
