Jøtul 520 Series User Manual

16

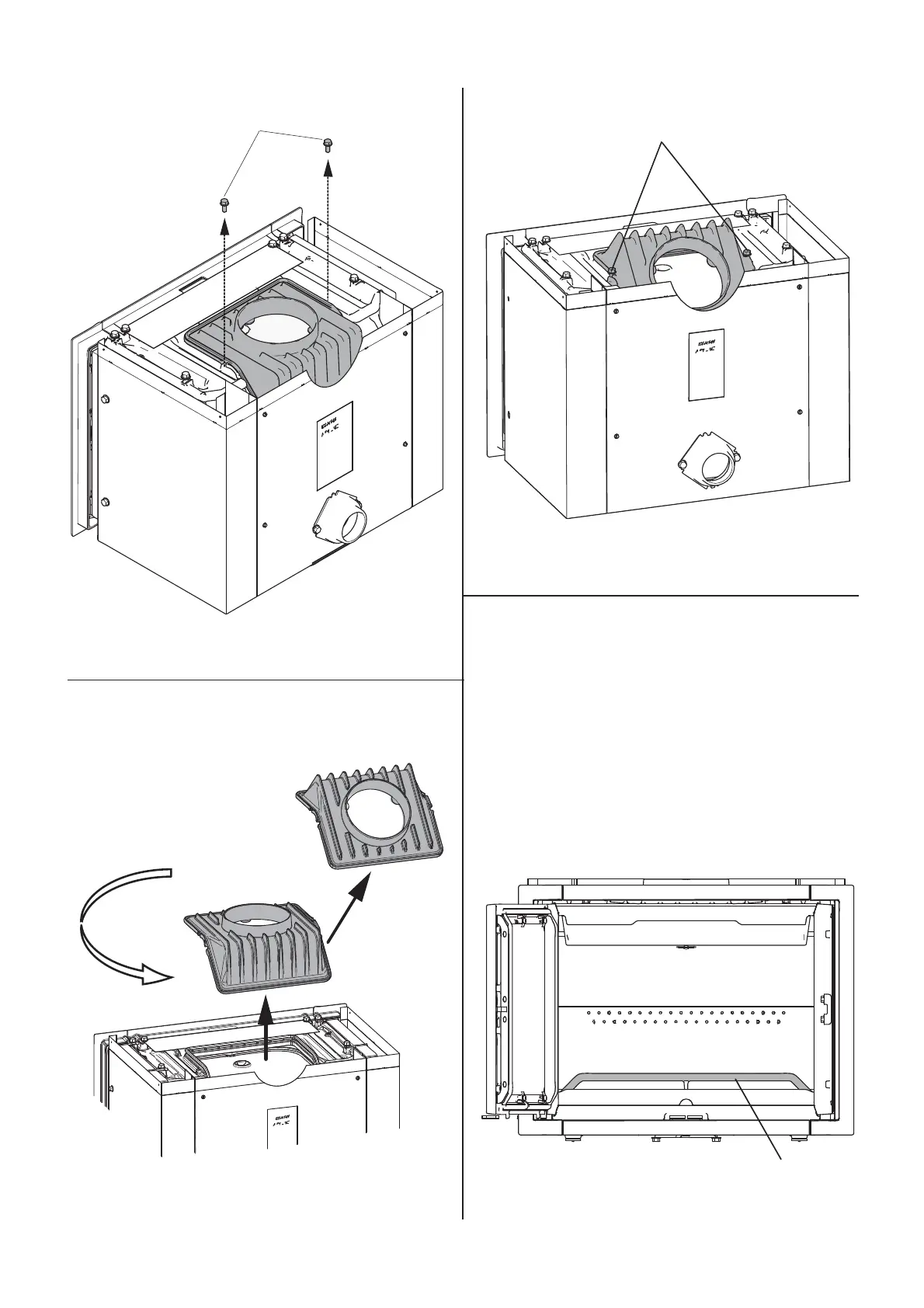

Fig. 10
A
3. Remove the two screws (A) that are holding the smoke bell
to the burn chamber.
Fig. 11
180
o
Top outlet
Rear outlet
4. Lift the smoke bell up and rotate it 180°.
Fig. 12
A
5. Screw the smoke bell onto the burn chamber again using the
same two screws (A).
4.9 Installation
Installation of internal smoke bell
The product comes in four different models. The installation
procedure depends on which model is being fitted:
For the following three models, follow Figures 13 to 20.
• For the Jøtul I 520 F (glass in the front), Jøtul I 520 FL (glass in
the front and left side) and Jøtul I 520 FR (glass in the front
and right side).
• For the Jøtul I 520 FRL (glass in front and on both sides), follow
Figures 14 to 20.
Fig. 13
A
1. Open the door and remove the log retainer (A).
ENGLISH

Jøtul 520 Series Specifications

General

Material	Cast Iron
Fuel Type	Wood
Log Grate Included	Yes
Ash Pan Included	Yes
Finish	Black Paint, Blue/Black Enamel, Ivory Enamel
Efficiency	75%
Emissions	2.5 g/h
Burn Time	Up to 8 hours
