Jøtul 520 Series User Manual

17
ENGLISH

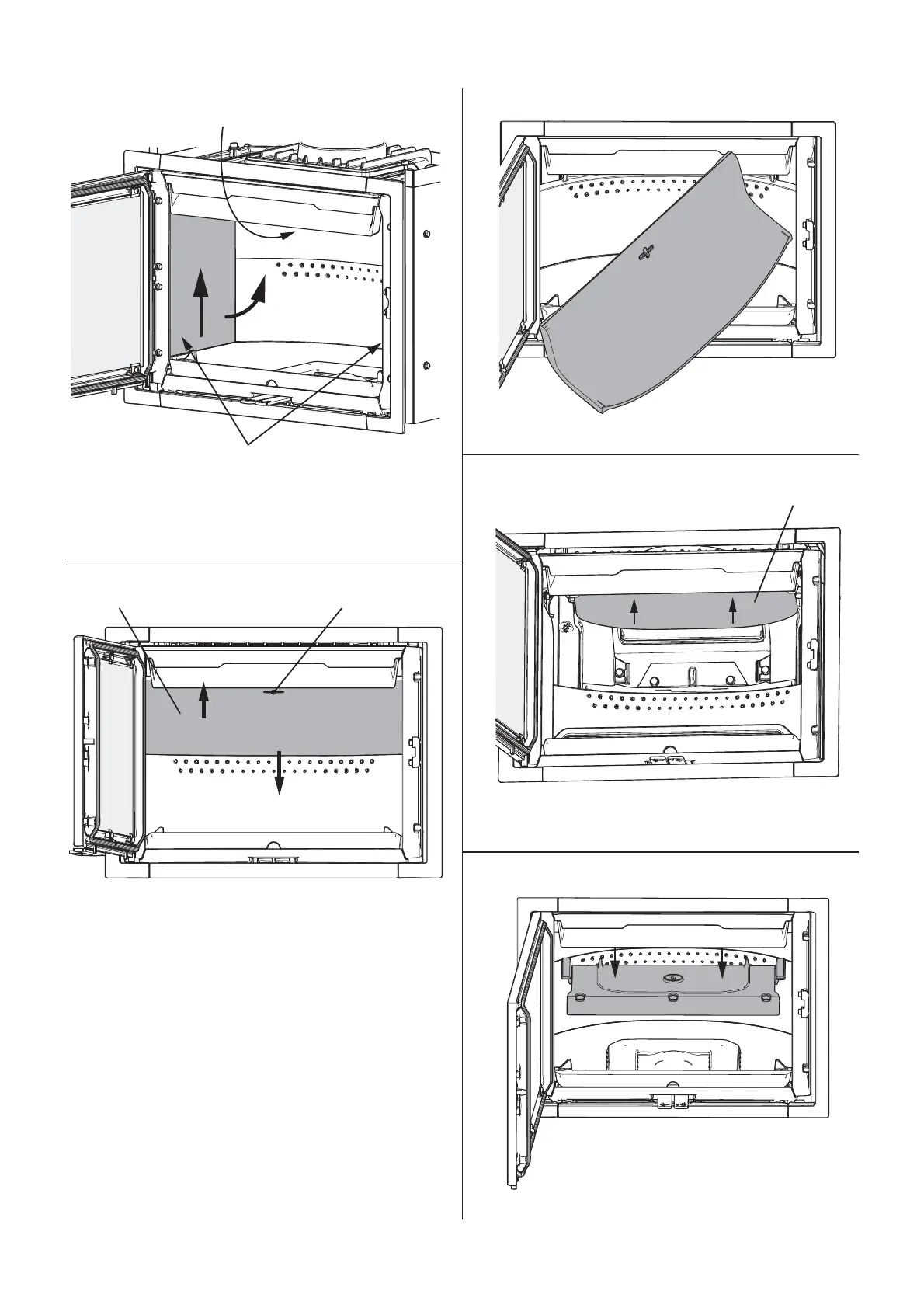

Fig. 16
4. Turn one corner towards you and pull it out sideways.
Fig. 17
1
A
5. Then remove the exhaust deflector (A) by raising it slightly
to begin with. Then push the exhaust deflector backwards.
Fig. 18
2
6. Lower the exhaust deflector and lift it out.
Fig. 14
1
2
B
A
2. Remove the side burn plate (A) by lifting it up slightly while
holding the baffle (B) up. Pull the side burn plate out at the
bottom and pull it out. Then remove the other side burn
plate in the same way.
Fig. 15
A
B
1
2
3. First lift the baffle (A) up. Turn the key (B) 90° and then remove
the key. Pull the back edge of the baffle down.

Jøtul 520 Series Specifications

General

Material	Cast Iron
Fuel Type	Wood
Log Grate Included	Yes
Ash Pan Included	Yes
Finish	Black Paint, Blue/Black Enamel, Ivory Enamel
Efficiency	75%
Emissions	2.5 g/h
Burn Time	Up to 8 hours
