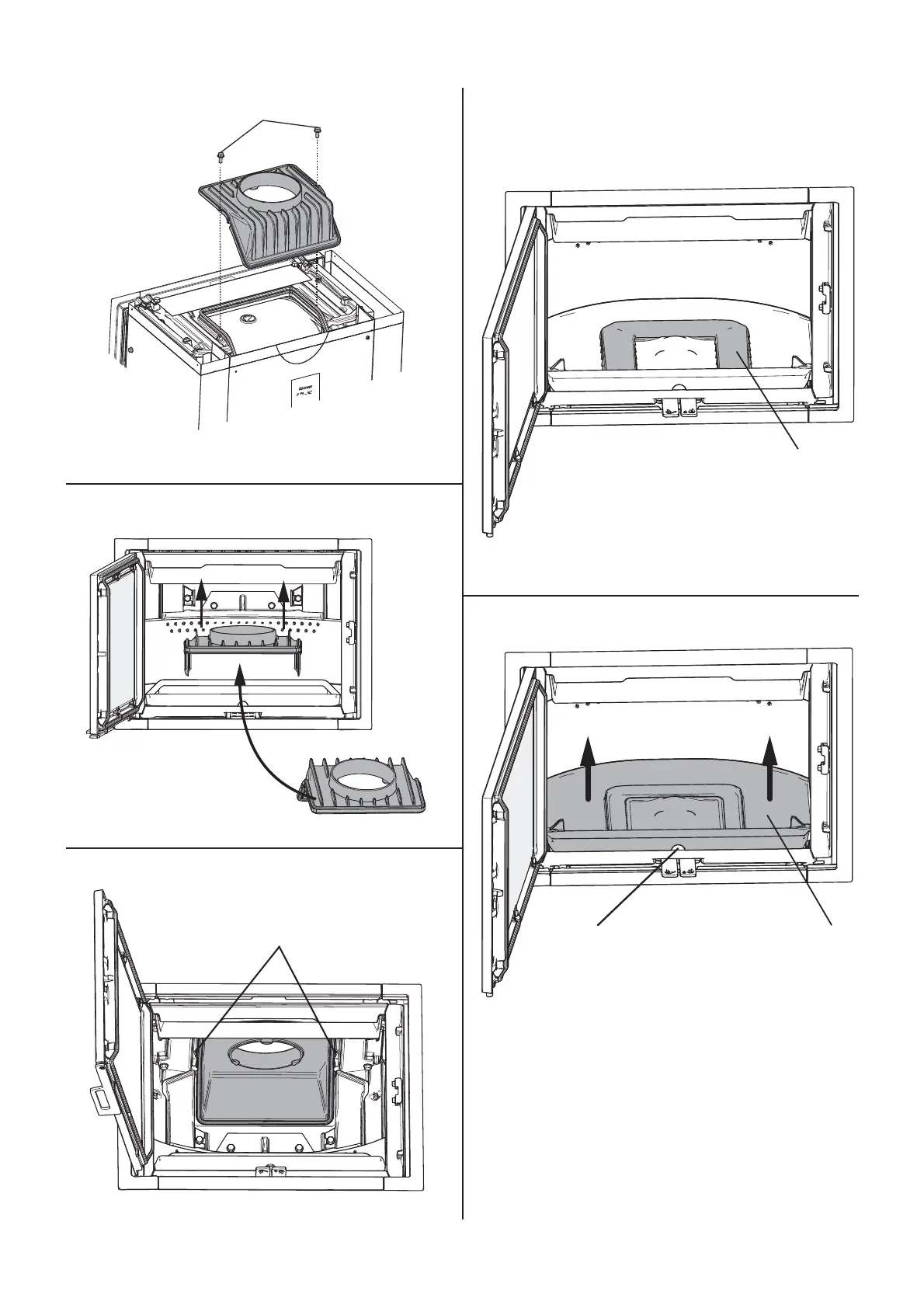

Fig. 19
A
7. Remove the two screws (A) on either side of the smoke bell
and lift it off.
Fig. 20
8. Secure the smoke bell from the inside.
Fig. 21
A
9. Screw the same screws (A) in from the inside.
Levelling the insert
It is important that the insert is level when installing it inside a
brick or prefabricated surround and hearth/open fireplace.
Fig. 22
A
1. Lift the air duct (A) up and remove it.
Fig. 23
A
B
2. Take hold of the hole (B) at the front edge of the inner bottom
(A) and lift it up.
ENGLISH

Jøtul 520 Series Specifications

General

Material	Cast Iron
Fuel Type	Wood
Log Grate Included	Yes
Ash Pan Included	Yes
Finish	Black Paint, Blue/Black Enamel, Ivory Enamel
Efficiency	75%
Emissions	2.5 g/h
Burn Time	Up to 8 hours
