Jøtul F 100 Installation Instructions

16
Table of contents
Installation manual with technical data
1.0 Relationship to the authorities ...................16
2.0 Technical data ...............................................16
3.0 Installation .................................................. 17
4.0 Service ...........................................................19
5.0 Optional Equipment ....................................19
Figures ...................................................................40
Table of contents
General use and maintenance manual
6.0 Safety precautions
7.0 Choice of fuel
8.0 Use
9.0 Maintenance
10.0 Operational problems - troubleshooting
1.0 Relationship to the
authorities
Installation of a fireplace must be according to local codes and
regulations in each country.
All local regulations, including those which refer to national
and European standards, must be observed when installing the
product.
Both an installation manual with technical data and a manual
on general use and maintenance are enclosed with the product.
The installation can only be used after it has been inspected by
a qualified inspector.
A name plate of heat-resistant material is affixed to the
product. This contains information about identification and
documentation for the product.
2.0 Technical data
Material: Cast iron
Finish: Enamel or black paint
Fuel: Wood
Log length, max.: 40 cm
Flue outlet: Top and rear
Flue pipe dimension:
- inside : Ø125 mm/123 cm
2
cross
section
- outside : Ø 150mm/177 cm
2
cross
section
Approx. weight: 97 kg
Optional equipment: Enamelled floor plate,
long legs, extra heat shield
Dimensions, distances etc.: See fig. 1
Technical data according to EN 13240
Nominal heat output: 5,0 kW
Flue gas mass flow: 5,0 g/sec
Recommended chimney draught: 12 Pa
Efficiency: 78%@6,1 kW
CO emission (13% O
2
): 0,18%
Flue gas temperature: 298
o
C
Operational mode: Intermittent
Intermittent combustion in this context means normal use of the
fireplace, i.e. fuel is added as soon as the fuel has burnt down to
a suitable amount of embers.

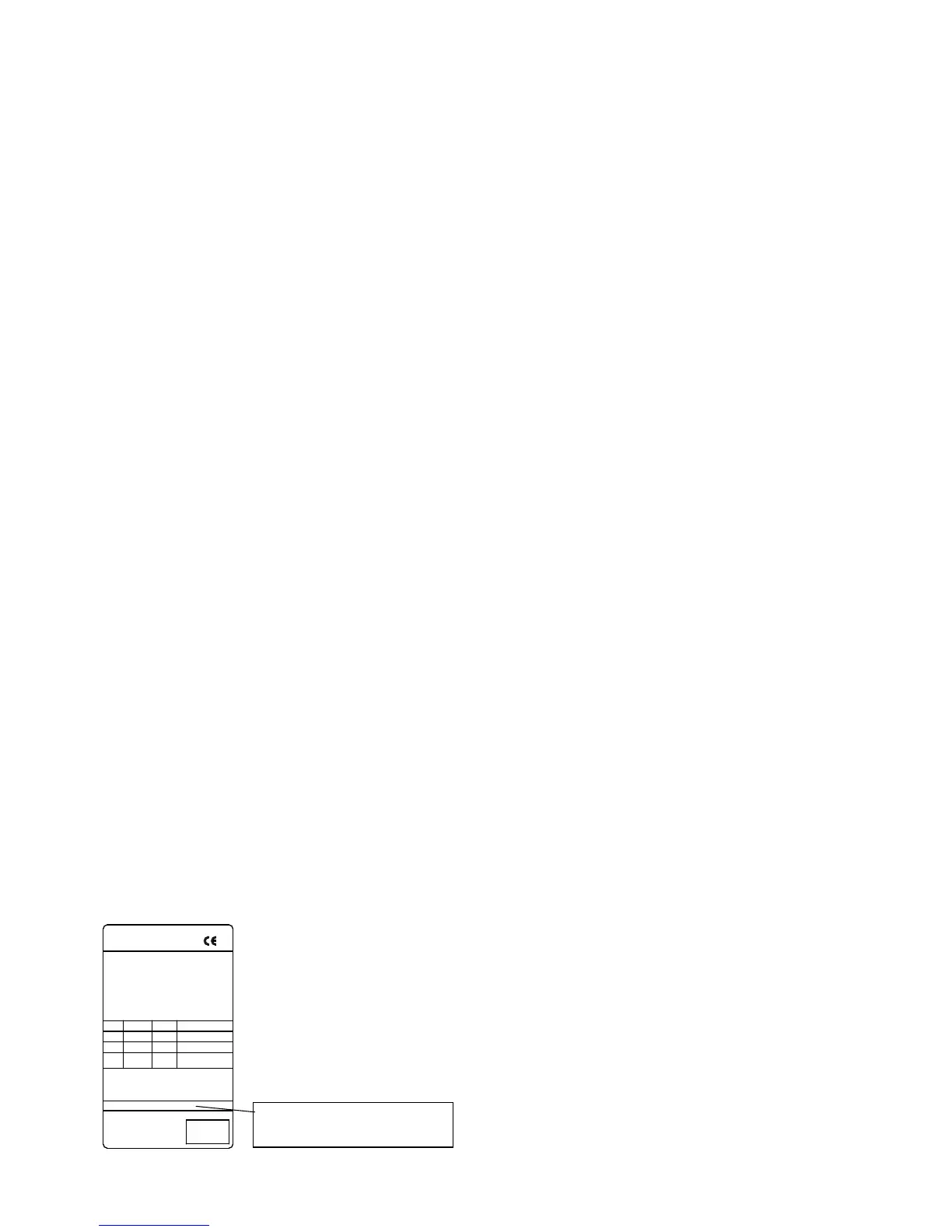

On all our products there is a label
indicating the serial number and
year. Write this number in the
place indicated in the installation
instructions.
Always quote this serial number when
contacting your retailer or Jøtul.
les combustibles recommandés.
Respectez les consignes d'utilisation. Utilisez uniquement
Verwenden Sie nur empfohlenen Brennstoffen.
Montage- und Bedienungsanleitung beachten.
Follow user`s instructions. Use only recommended fuels.
standard
Certificate/
The appliance can be used in a shared flue.
Minimum distance to adjacent combustible materials:
Emission of CO in combustion products
Serial no: Y-xxxx, Year: 200x
Manufacturer:
N-1602 Fredrikstad
Norway
Jøtul AS
POB 1441
Sweden
EUR Intermittent
Nominal heat output
Norway
Country
Operational type
Fuel type
Operation range
Efficiency
Klasse II
Classification
Standard
Flue gas temperature
Room heater fired by solid fuel
Product:
Jøtul
SP Sveriges Provnings- och
221546
Forskningsinstitut AB
SP Swedish National
Testing and Research
Institute
:
Approved by
:
:
:
:
:
:
:
Minimum distance to adjacent combustible materials:
OGC
SP
EN
Serial no.
ENGLISH

Jøtul F 100 Specifications

General

Material	Cast Iron
Max Log Length	16 inches
Efficiency	75%
EPA Certified	Yes
Type	Wood-burning stove
Flue Outlet	6 inches
Emissions	2.5 g/hr
Heating Capacity	Up to 1, 200 square feet
