7.0 Service
Any unauthorised modifi cations to the product are prohibited!
Only original spare parts may be used!
7.1 Service / replacing parts of the
burnchamber
Note! If you use tools, be aware that the vermiculite plates
may be damaged by rough treatment.

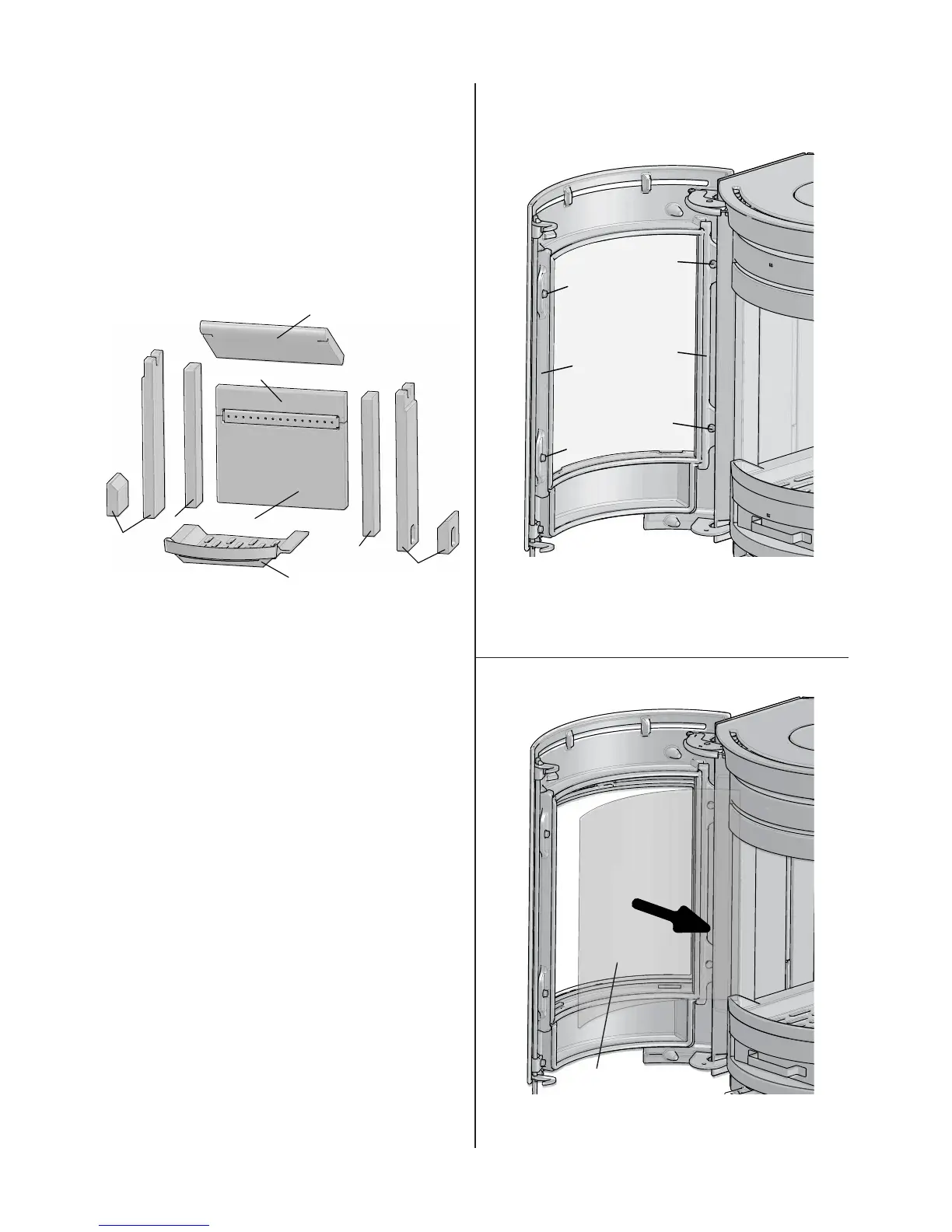

Fig. 30
C
D
E
B 1
B 2
A
E
D
1. Baffl e: Lift the rear edge of the baffl e (A) up and down and
twist it out of the burn chamber.
2. Lift up the ash grate (C) and remove it from the burn
chamber.
3. Remove the side burn plate(s) (D).
4. Remove the side burn plate(s) (E) (the tall side burn
plates are for models without side windows, while the short
ones are for models with side windows).
5. Remove the rear burn plate (B).
7.2 Replacing glass and gaskets in
the door
Fig. 31
A
A
A
A
A
B
B
6. Remove the four screws (A) that attach the brackets (B)
to the door.
7. Remove the brackets.
Fig. 32
A
8. Carefully lift the glass door (A) out.
.
