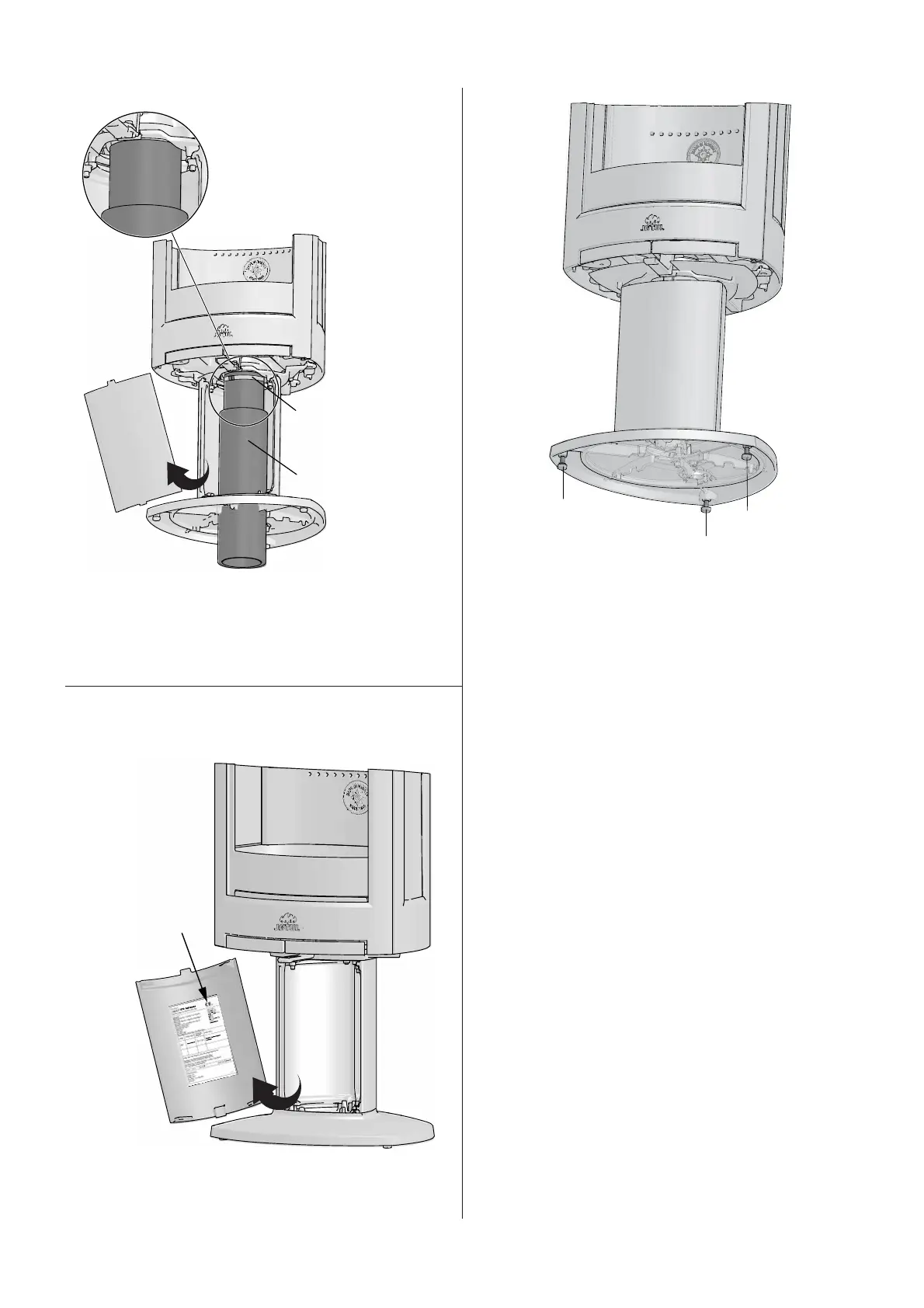

Fig. 19
If installing a
rotation set (optional extra),
do not use a hose clip
Hose clip
External air supply
2. The external air kit is attached to the external air inlet on
the underside of the burn chamber. NB: If a rotating set
is to be installed, this must be fi tted before the stove
is raised into the upright position. See the assembly
instructions included in the rotation set.
4.6 Location of approval label
Fig. 20
Approval label
1. Remove the front cover from the pedestal.
2. Attach the approval label (A), which is inside the ash pan,
to the inside of the front cover. (This label is important for
the approval of the product).
Fig. 21
A
A
A
Level the product using the 3 adjustment screws (A).
NB: If using a glass fl oor plate (cat. no. 50012994), the
product should be raised about 8-10 mm from the fl oor
using the 3 adjustment screws.
4.7 Chimney and fl ue pipe
• The fi replace must only be connected to a chimney and
fl ue pipe approved for solid fuel fi replaces with fl ue gas
temperatures as specifi ed in «2.0 Technical Data».
• The specifi ed distance to fl ammable materials, applies to
this stove.
• The stove must be installed with a CE approved fl ue.
• The distance of the fl ue pipe to combustible materials must
also be observed.
• The cross-section of the chimney must be designed to fi t
the fi replace. Use «2.0 Technical Data» to calculate the
correct chimney cross-section.
• The chimney must be connected in accordance with the
installation instructions of the chimney supplier.
• Before a hole is made in the chimney, the product should
be test-mounted in order to correctly mark the position of
the fi replace and the hole in the chimney. See fi g. 1 for
minimum dimensions.
• With a rear outlet, use a fl ue pipe bend with a sweep hatch
to allow sweeping.
• Please note that it is extremely important for connections
to have a degree of fl exibility. This is to prevent any
movement in the installation leading to the formation of
cracks.
• For recommended chimney draught, see «2.0 Technical
Data». For fl ue pipe dimension see “2.0 Technical Data”.
NB: The chimney’s diameter must be at least just as
big as the fl ue pipe.
NB! The minimum recommended chimney length is 3.5 m
from the fl ue pipe insert. If the draught is too strong, a fl ue
pipe damper can be installed and used to reduce the draught.
