16
Fig. 25
E
F

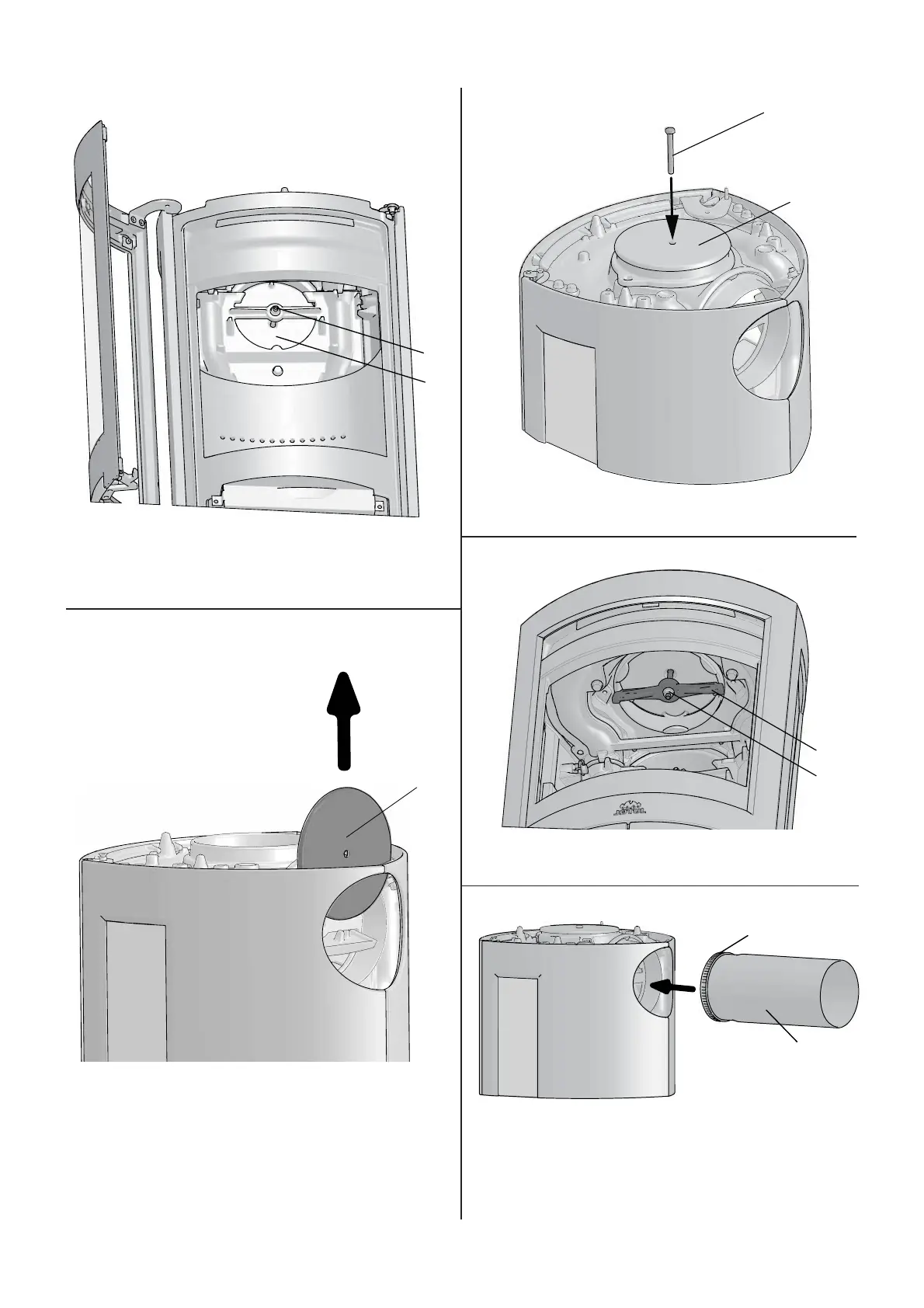

5. Unscrew the screw (E) that is holding the cover (F) in place.
Fig. 26
F
6. Pull the cover (F) up.
Fig. 27
F
G
7. Place the cover from the rear outlet in the top outlet and
screw into place.
Fig. 28
H
I
8. Attach the traverse (I) from the ash pan to the screw (G)
using the nut (H).
Fig. 29
J
K
9. Place the gasket (J) on the edge of the fl ue pipe (K).
10. Insert the fl ue pipe into the smoke outlet.
11. Put the top plate and lid back in place.
NB: It is important for the joints/fl ue pipes to be sealed
completely. Air leaks may prevent them from operating
properly.
ENGLISH
