22

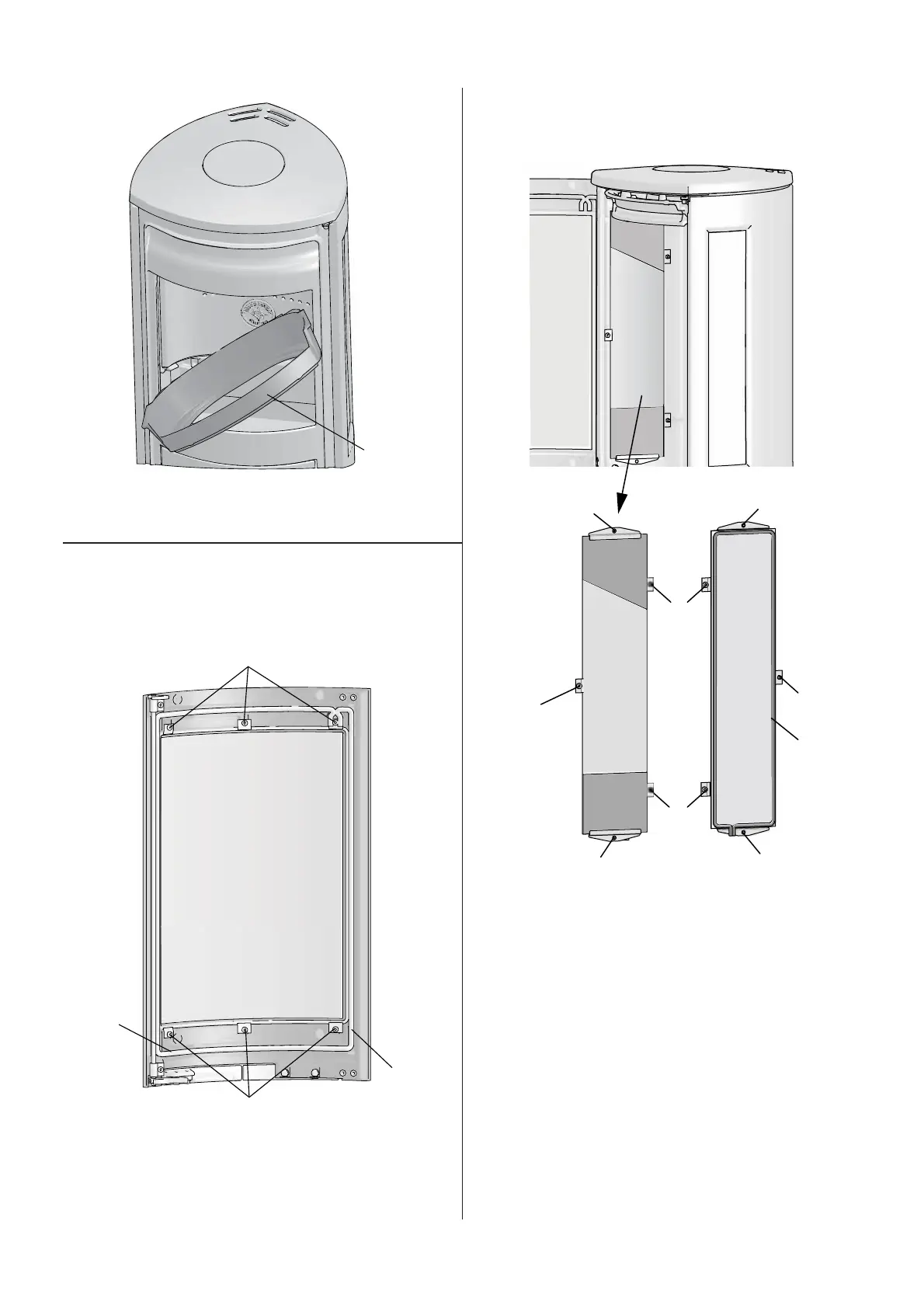

Fig. 37
H
4. Lift the inner bottom (H) and tilt it out.
When refi tting, follow the same procedure in reverse
order.
7.3 Replacing the door glass and
gaskets
Fig. 38
I
J
K
L
5. To replace the door glass, fi rst unscrew the bottom 3
screws (I). Then unscrew the top 3 screws (J). Remove
the glass.
6. Remove the damaged gaskets (inside (L) and/or outside
(K). Clean the gasket groove, apply new glue and press
the new gaskets into place.
7.4 Replacing the side glass and
gasket
Fig. 39
AA
A
A
Side glass
internal
Side glass
external
B
B
C
B
B
1. Lift the baffl e plate and turn the key (fi g. 33 B) 90° in the
baffl e plate (fi g. 33 A) and then remove the key. Lift the
rear edge of the baffl e plate and tilt it out.
2. The lower and upper exhaust defl ectors are located above the
baffl e plate. Remove the lower exhaust defl ector (fi g. 35 E)
by lifting it at the rear edge and tilting it out. Lift the upper
defl ector (fi g. 35 F) out of the grooves and remove it from
the burn chamber.
3. Remove the fi re grate (fi g. 36 G).
4. Lift the inner bottom (fi g. 37 H) and tilt it out.
5. Remove the upper and lower screws (A) and the clips (B)
that are holding the side glass.
6. Carefully lift the glass off.
7. Remove the glass and replace the gasket if necessary (C).
When refi tting, follow the same procedure in reverse
order.
ENGLISH
