For optimum room temperature control, install an
external temperature sensor above the entrance door
Make sure the external temperature sensor is always
installed on the vertical wall. There must be free flowing
air around it.

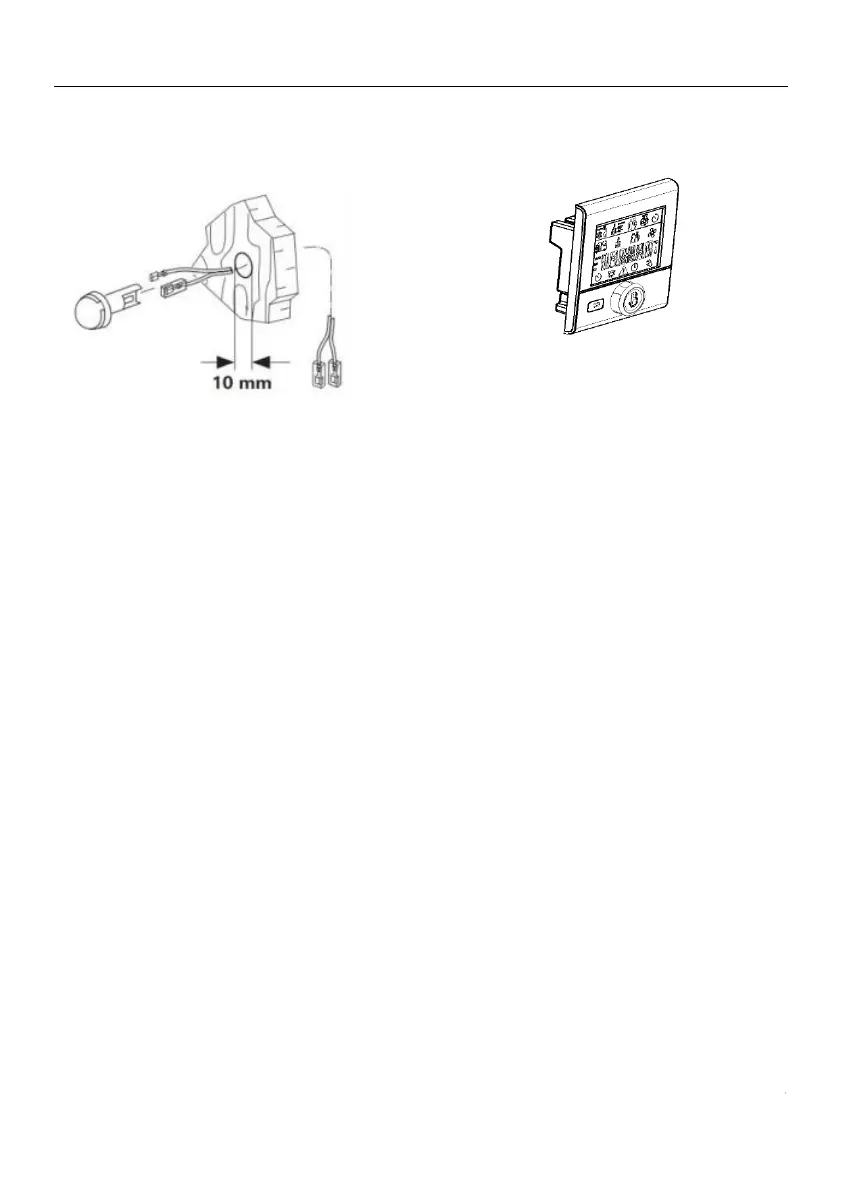

Drill a hole with a diameter of 10mm. The single-wire
terminal passes through the opening from the back and
connects the end of the cable to the sensor with an
insulated connector plug (no polarity is required). Sliding
into the outside temperature
Sensor and connect the two ends of the cable to the two
insulation connectors to the heater electronics (if
necessary, extend the cable to a maximum length of 10
meters, 2 x 0.5mm2
cable).
The external temperature sensor provided must always
be connected or the heater will switch to fault.
LCD Control Switch Installation
The gas heater must be operated with a dedicated LCD
switch. See the relevant instructions for details.
Electrical Connection
Lay the wires to avoid scratches. If there is a sharp
edge, if the metal panel is threaded, use a lead bushing
or edge protection accessory.
The connector cable must not be attached or in contact
with metal surfaces, exhaust pipes or hot air ducts.
The electrical connector is located below the controller
cover. The controller cover can be removed by pressing
and simultaneously sliding in the direction of the arrow.
When removing or installing the controller cover,
make sure that the connecting cable is not pulled
out or squeezed.
