HANDBOOK / KIT INTERFACE
4/20 mA
NC
0/10 V
NC
1/10 V
NC
4/20 mA
NO
0/10 V
NO
1/10 V
NO
8

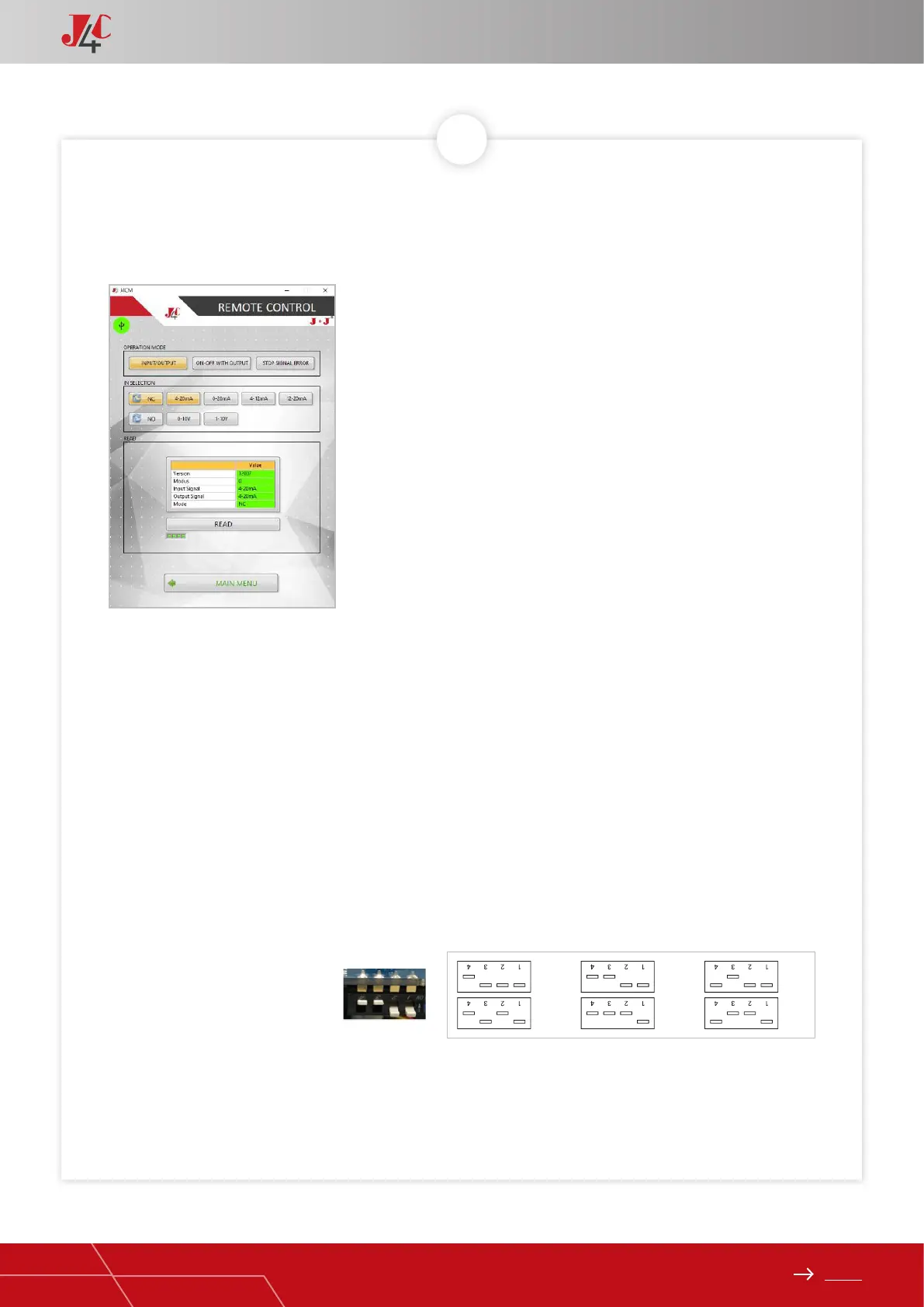

Short explanation of the different congurations:
• Version: Is the software version of the DPS PCB.
Select different options when in OPERATION MODE:
• INPUT/OUTPUT: The actuator with DPS will be positio-
ned by using an external mA or V signal. Automatically
the DPS will generate an output signal showing the
actuator position.
• ONLY OUTPUT: The actuator with DPS will work exactly
the same as an ON-OFF one. The only difference is that
the DPS generates an output mA or V signal, showing
the actuator position.
• STOP WITHOUT INSTRUMENTATION: The actuator is
working the same way as when using the INPUT/OU-
TPUT option, but in case of a mA of V signal failure, the
actuator would stop, remaining in the same position as
it was, prior to the signal failure. This conguration is
only available when the actuator works with a 4/20m,
1/10V, 4/12mA and 12/20mA signal.
Select congurations when in IN SELECTION:
• Input Signal: Chose the type of requested signal. Both
output and input signal will be the same. If you want to
work with different signals, please ask the manufactu-
rer.
• NO / NC: In case of an input signal failure, the actuator
will go to the preferential position: NO = Normally Open,
NC = Normally Close.
We recommend that both the input signal and NO/NC set up, is
made by placing the DIPs as follows:
Click on READ to know the DPS conguration (a table will show the
DPS parameters).
To go back to the home menu, click on MAIN MENU.
If we click on DPS, all the Positioner (DPS) possible conguration options will be shown on the
following screen:
