89
Index
HANDBOOK / KIT BSR

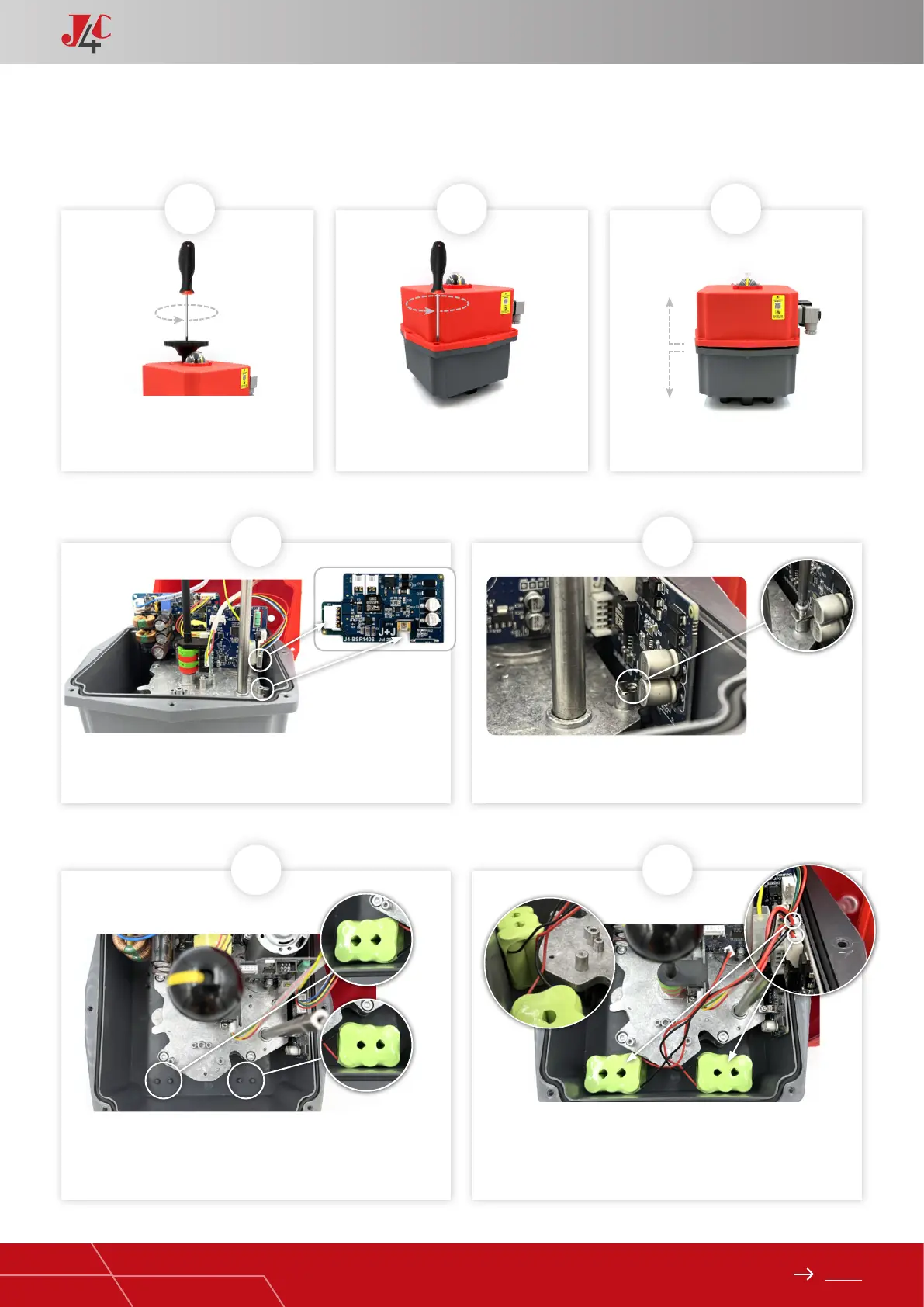

Remove the screw, which is xing the
hand wheel.
Take the BSR PCB (Element B) from the KIT and connect it to the
actuator PCB, by using the connector shown in the picture.
Place the 2 battery packs (Element C) as per picture (Fig. A & B). Place the battery cables so as they remain over the battery pack
(g. 7A). Connect the C1 battery cable to connect 1. Connect the
C2 battery cable to connect 2.
Fix it to the actuator metal plate, by using the Sheet metal xing
screw (Element D).
Remove the 8 screws, which are xing
the body to the cover of the actuator.
Carefully lift the cover.
1
4
6 7
5
2 3
KIT BSR 140/300 ASSEMBLY INSTRUCTIONS PAGE 1/2
A
B
A
Connect 2
C1 C2
Connect 1
