HANDBOOK / KIT BSR
If the WEEE (Waste Electrical and Electronic Equipment) contains batteries, they must be removed and deposited separately for proper management before being
deposited at the collection facilities. Batteries may contain hazardous substances that can harm the environment and human health if mishandled or disposed
of improperly. Therefore, it is important to deposit them in specic containers for recycling and proper treatment. In some countries, there are selective collection
programs for used batteries in supermarkets, electronic stores, or other establishments.
Num: RII-AEE: 8760

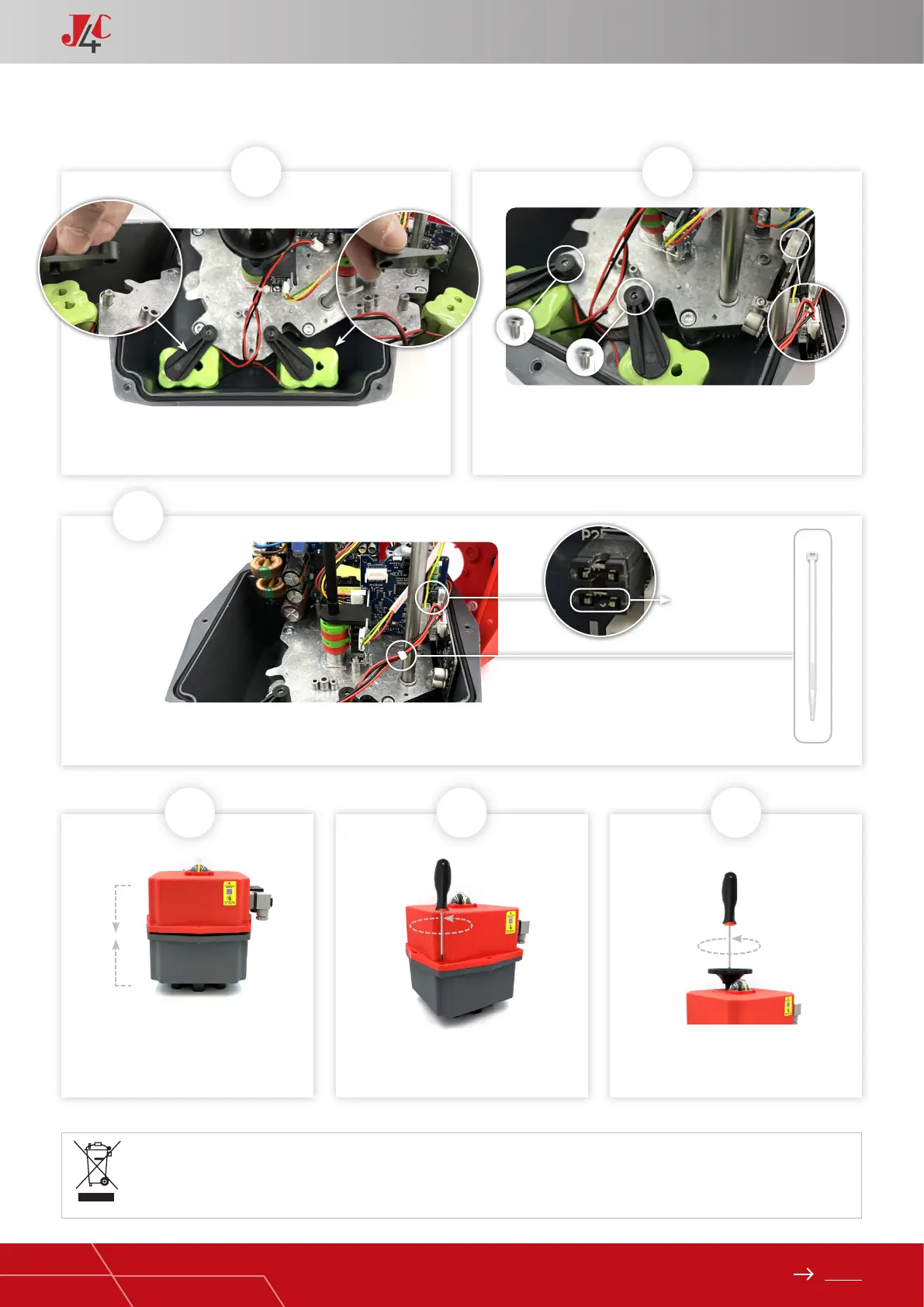

Place the 2 battery supports (Element B) as per picture
(Fig. A & B).
Put both battery cables (Element C) together with the plastic clamp (Element E) (Fig. 8D).
Cut the remaining part of the plastic clamp (Element E).
Fix the battery supports (Element B), with the sheet metal xing
screws (Element D). Connect the battery cables to the BSR PCB
(Element A), as per (Element C).
8 9
10
KIT BSR 140/300 ASSEMBLY INSTRUCTIONS — PAGE 2/2
Carefully replace the cover and be sure
that the joint is correctly lodged in its
place. Be sure that any cable is not
trapped between the cover and the body.
Fix the cover to the body by using the 8
screws.
Reassemble the hand wheel and x it
with the screw.
11 12 13
A
B
SELDIR
jumper
