J+J J4C S300 User Manual

Quick Start Guide J4C S20-S300
a
ctuatedvalvesupplies.com
Actuated Valves Supplies Ltd
Tel:
+44(0)3300535750

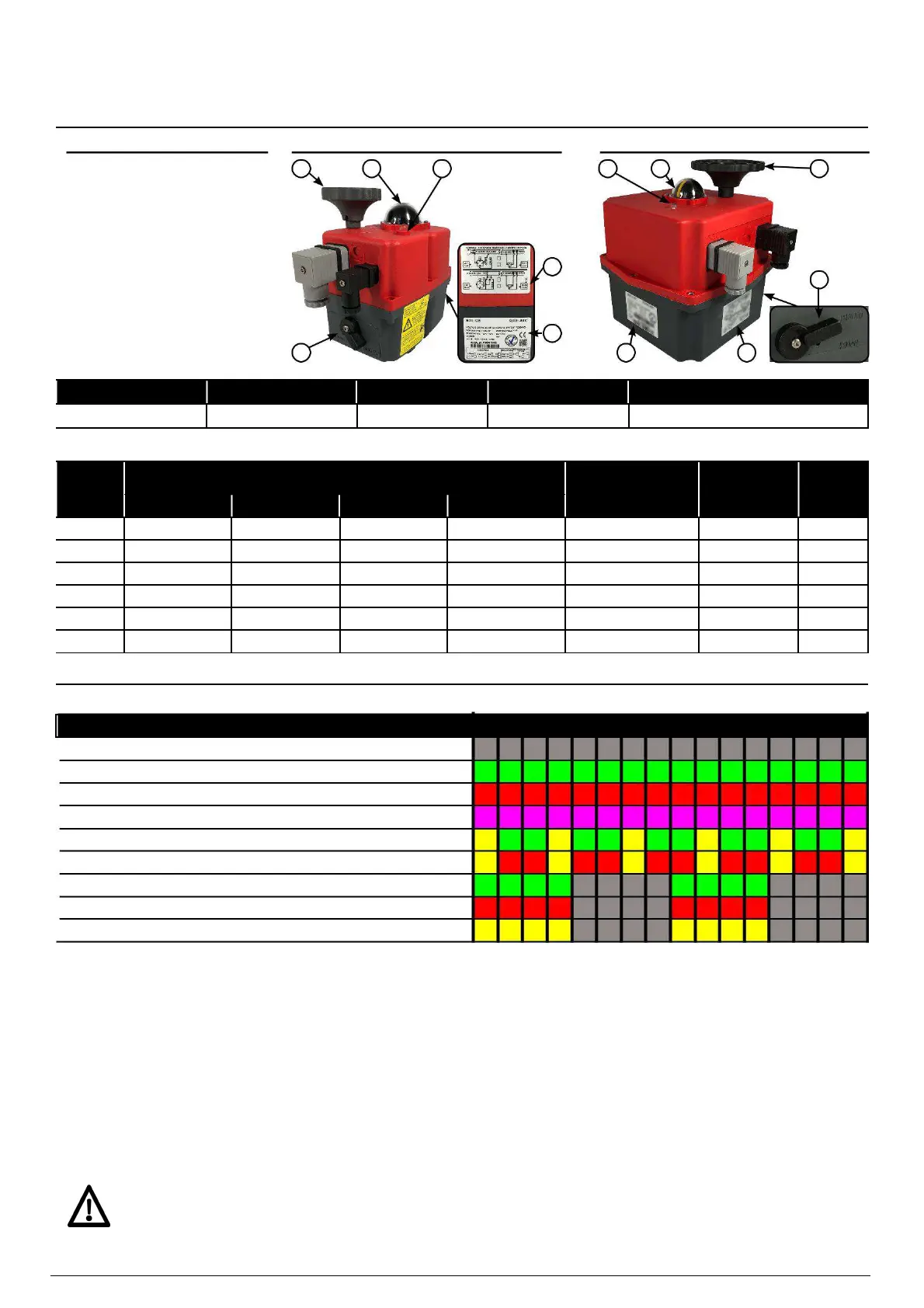

Overview
140
-
300
Version:
20
-
35
-
55
-
85
B C D D C B
A Manual Override Switch
B Handwheel
C Dome indicator
E D Status LED
A
E Wiring Diagram
F Nameplate
A
F
F
E
Mode
l Comparison
:
Duty Operating Temp. Heater Power Ingress (IEC60529) 2x End of Travel Sw.
Rating= 75% -20°C - +70°C 3.5 W IP67 SPST NO 5A 125VAC / 3A 250VAC
M
odel
S
pecific
:
Optional 0,1A 30VDC (See Page 1)
Current consumption at max. torque
Runtime
Working
/
Without Load
Modell 24V AC 24V DC 110V AC 230V AC Break Torque s/90° ±10% Weight
S 20 1.3A / 30.7W 1.0A / 23.4W 0.3A / 32.7W 0.2A / 46W 20Nm / 25Nm 10s (5.5s) 1.8kg
S 35 1.7A / 40.2W 1.4A / 32.8W 0.4A / 41.9W 0.2A / 46W 35Nm / 38Nm 10s 1.9kg
S 55 2.0A / 47.5W 1.6A / 39.0W 0.4A / 47.0W 0.2A / 46W 55Nm / 60Nm 13s 2.4kg
S 85 1.5A / 36.0W 1.2A / 29.3W 0.3A / 36.5W 0.2A / 46W 85Nm / 90Nm 29s 3.0kg
S140 3.3A / 79.2W 2.5A / 60.7W 0.7A / 78.7W 0.4A / 105.6W 140Nm / 170Nm 25s 5.2kg
S300 3.3A / 79.2W 2.7A / 64.7W 0.8A / 84.7W 0.5A / 113.5W 300Nm / 350Nm 48s 5.2kg
Operation
Status Light
(D)
Operating Status
LED
Flash Sequence
No power supply
Unit is in open position
Unit is in closed position
Unit is in stop position
Unit is moving to open position
Unit is moving to closed position
Torque protection stopped move to open
Torque protection stopped move to closed
Manual Override Engaged
Manual override (A/B)
All J4C models have a manual emergency override for manual operation in the event of a power failure. To activate the
manual override, the "AUTO-MAN" switch (A) must set to "MAN", this declutches the engine from the transmission.
Once in manual you can turn the drive with the handwheel (B).
After about four times the expected actuation time, the engine is automatically stopped by the electronics.
If the drive is to be put back into autonomous operation, switch the switch (A) back to the "AUTO" position and the motor will be
coupled again.
If the motor has switched off automatically, it can be reactivated either by driving in the other direction or by power cycling
the device.
The change-over switch must not be over-tightened.
If the switching is difficult, the gear can be synchronized by means of a handwheel. The screw of the
switch must never be loosened!
-PAGE 3-
