J+J J4C Series User Manual

16
Index
HANDBOOK / J4C SERIES

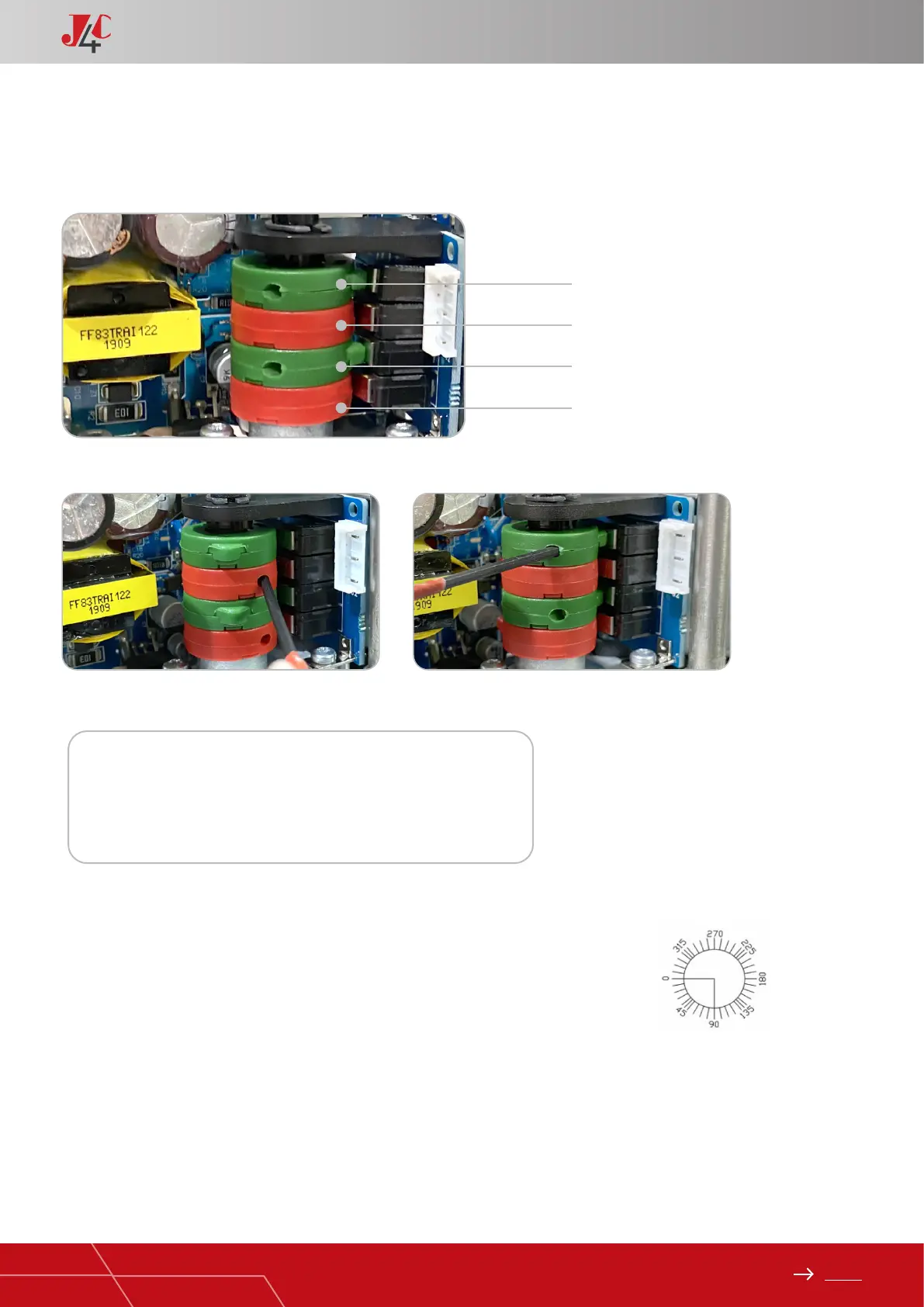

POSITION OF THE CAMS
CAM
1
Cams 1 and 3 Cams 2 and 4
2
3
4
1. Cam 1 is to adjust the close position.
2. Cam 2 is to adjust the open position.
3. Cam 3 is to adjust the close position conrmation.
4. Cam 4 is to adjust the open position conrmation.
To ensure that the position conrmation works, adjust the conrmation cams
(3 and 4) 3° (+/-1º) before the motor stop.
The standard actuators are always adjusted at 0º (close) and 90º (open).
1
2
4
3
