HANDBOOK / KIT BSR
If the WEEE (Waste Electrical and Electronic Equipment) contains batteries, they must be removed and deposited separately for proper management before being
deposited at the collection facilities. Batteries may contain hazardous substances that can harm the environment and human health if mishandled or disposed
of improperly. Therefore, it is important to deposit them in specic containers for recycling and proper treatment. In some countries, there are selective collection
programs for used batteries in supermarkets, electronic stores, or other establishments.
Num: RII-AEE: 8760

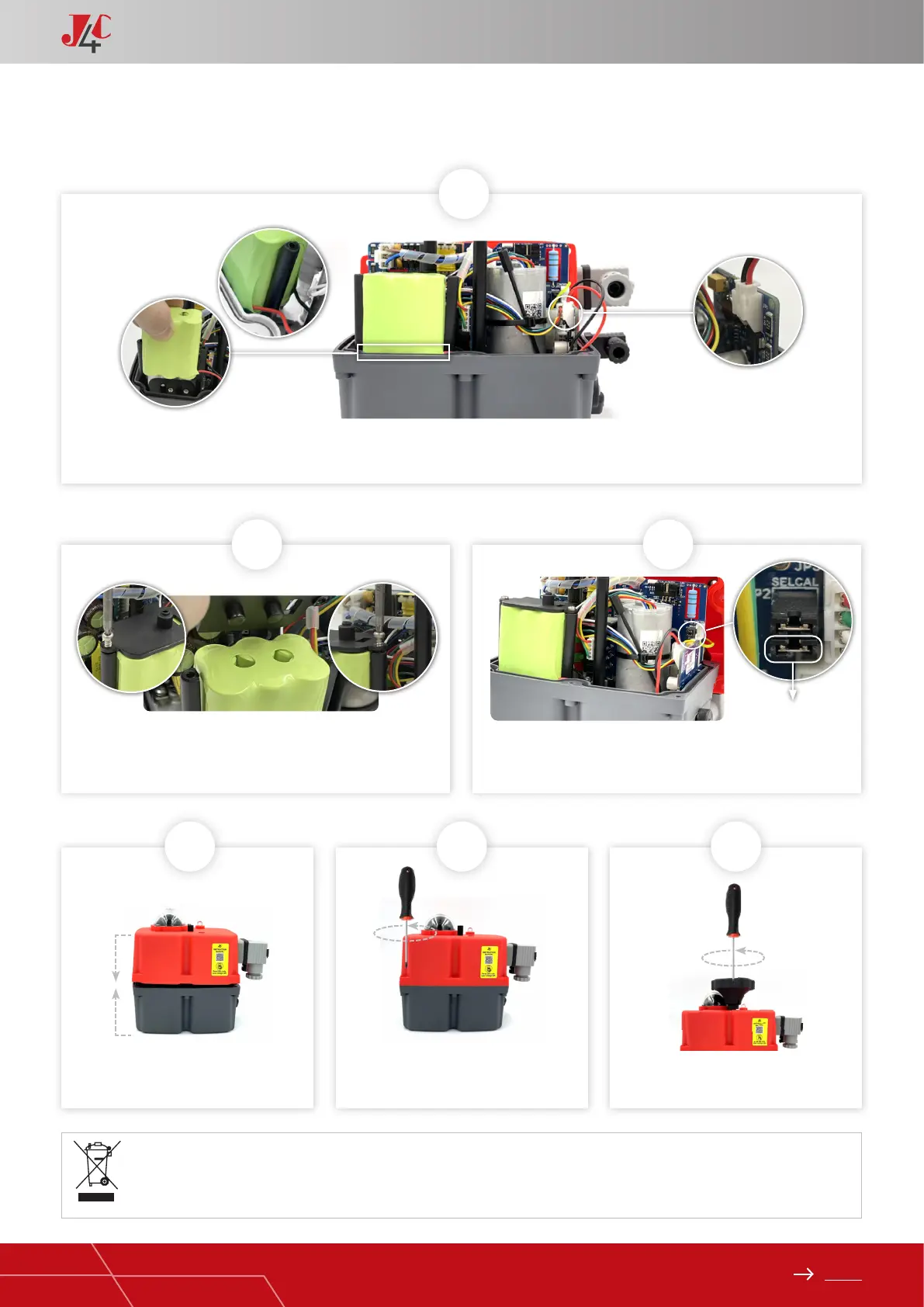

Place the battery pack (Element C) on the lower battery support (Element B) (Fig.7B). The battery cables should remain on the bottom part.
Put the cables, as shown in the picture (Fig.7A). Connect the battery cables to the BSR PCB (Element A), as per (Fig.7C).
Place the upper battery support and x it to the columns of the
lower battery support (Element B), by using the Plastic xing
screws (Element F).
BSR Conguration NO or NC:
NC (normally close) SELDIR jumper ON.
NO (normally open) SELDIR jumper OFF.
7
8 9
Carefully mount the cover, minding the
cables not to be pressed.
Fix the cover to the body by using the 6
screws.
Mount the hand wheel on the shaft and
x it by using the screw.
10 11 12
KIT BSR 20/85 ASSEMBLY INSTRUCTIONS — PAGE 2/2
A
C
B
A
B
SELDIR jumper
