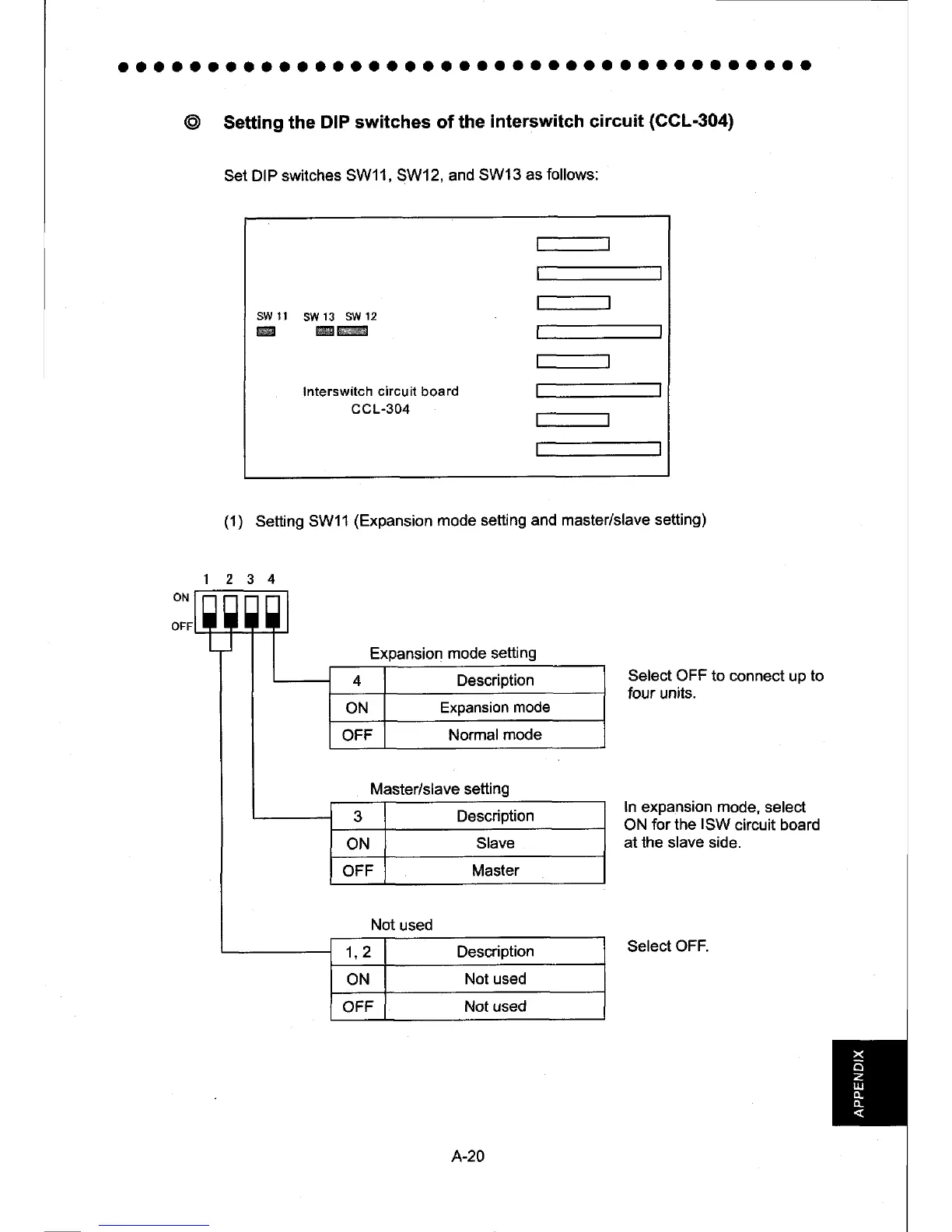

Setting
the
DIP switches of the
interswitch circuit
(CCL'304)
Sei DIP switches
SW11,
SW12,
and
SW13
as
follows:
sw 1l
sw
13 sw
12
@
@w
Interswitch
circu it
board
ccL-304
(1)
Setting SW11
(Expansion
mode setting
and
masterislave
setting)
Select OFF to connect
up
to
four units.
In
expansion
mode,
select
ON
for the
ISW
circuit board
ai the slave side.
Select
OFF.
@
Expansion
mode setting
A-20
