Power: push to turn the transmitter on. When the transmitter is on, push and
hold for 2 seconds to turn it o.
Mute: while the transmitter is on, switch Mute up to talk and down to mute. If
the transmitter is o, switch the Mute up to turn the unit on. The transmitter
turns itself o automatically after 1, 10 or 30 minutes of muting depending on
setting.
Ultrasonic receiving unit: it receives pairing signals from the ultrasonic
transmission unit at the receiver end.
Battery holder: it holds UM3, AA 1.5V battery or rechargeable battery x 2.
LED indicator: it shows the transmitter’s status, including battery level, mute and
pairing indication.

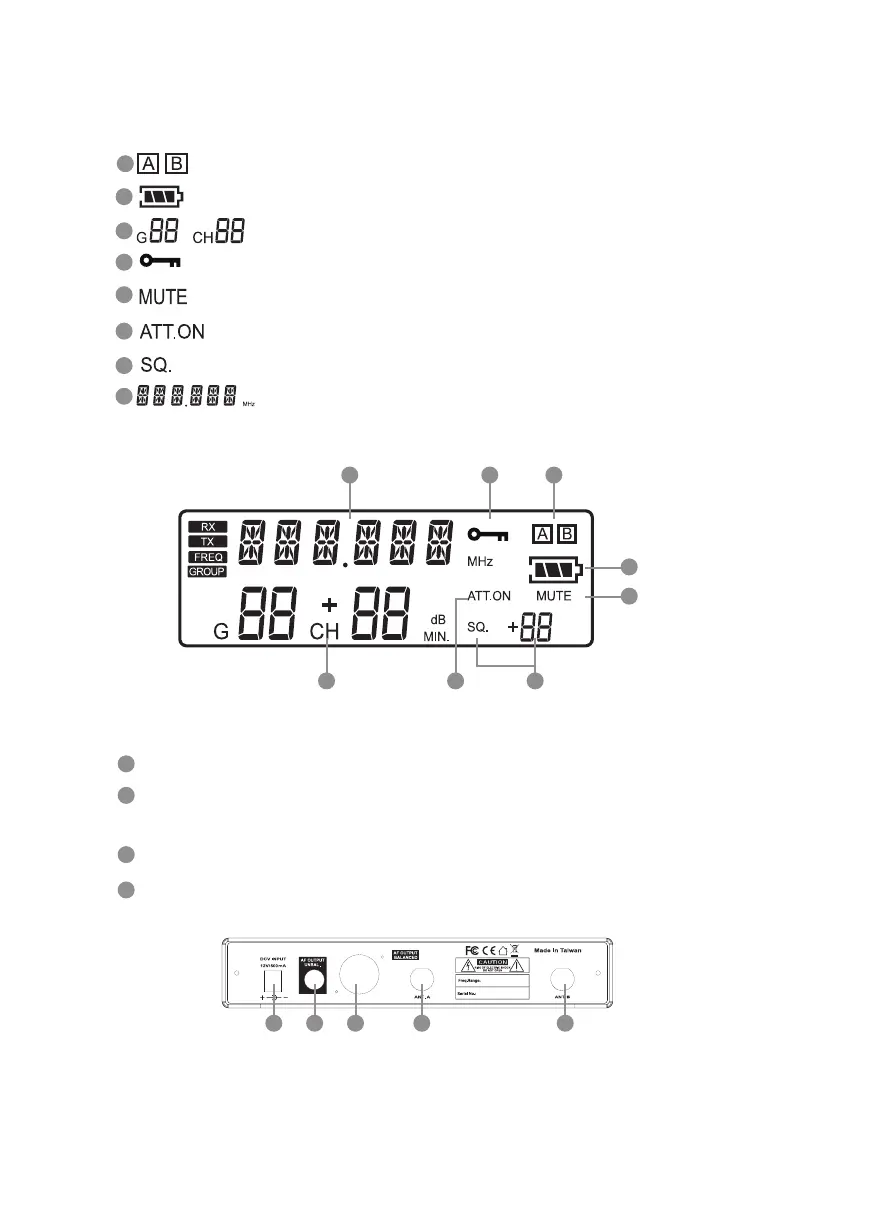

LCD display: it shows the parameter settings in the transmitter.
SET: it allows parameter settings, including frequency, group, channel, sensitivity,
transmission power, auto o countdown and machine code.
▲/▼: these are used with “SET” to change the parameter settings.
: push and hold the “LOCK” button for 2 seconds to lock the buttons. Push and
hold again for 2 seconds to unlock.
Charging contact: if rechargeable batteries are used, this microphone can be
recharged with an optional charger.
56
58
55
57
54
59
61
60
62
63
62
59
58
56
54
55
60
61
57
63
4-5 UHF PLL hand-held transmitter //
