MINIATURE MUSIC INSTRUMENT WIRELESS SYSTEM
5. Preparing Procedures & Basic Operation
5-1 Receiver

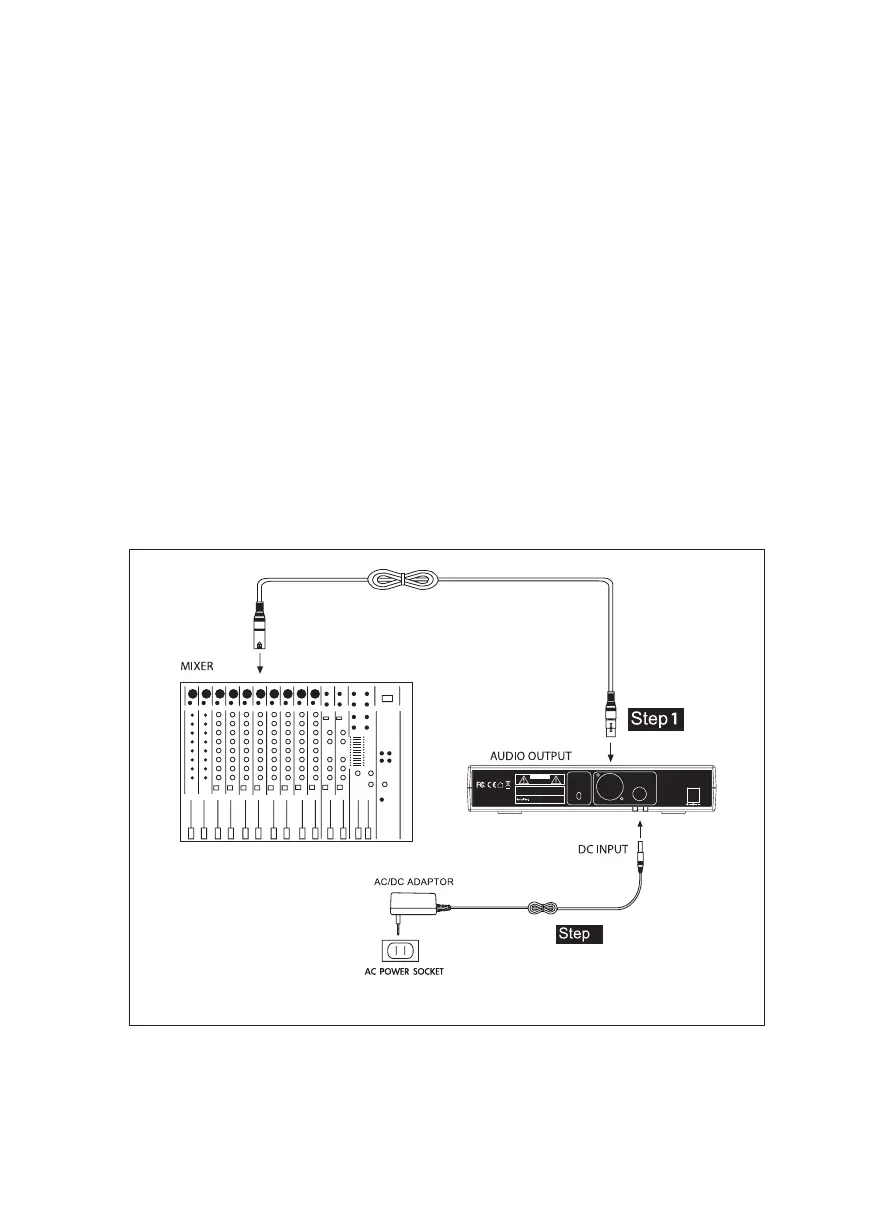

(1) Connect to the subsequent unit (e.g. mixer, or amplier)
Connect one end of a proper AF cable to the AF Output or Balanced
XLR Output socket, then plug another end to the “MIC IN” input socket of
a mixer or a amplier (Step 1)
(2) Connect the power supply unit
Plug in one end of AC/DC adaptor cable to Power Supply Jack in the rear
panel of receiver, and plug another end into an AC outlet (Step 2)
Caution
To prevent accidental disconnection of the plug from the jack, lead the
cable around the hook of the strain relief.
