34

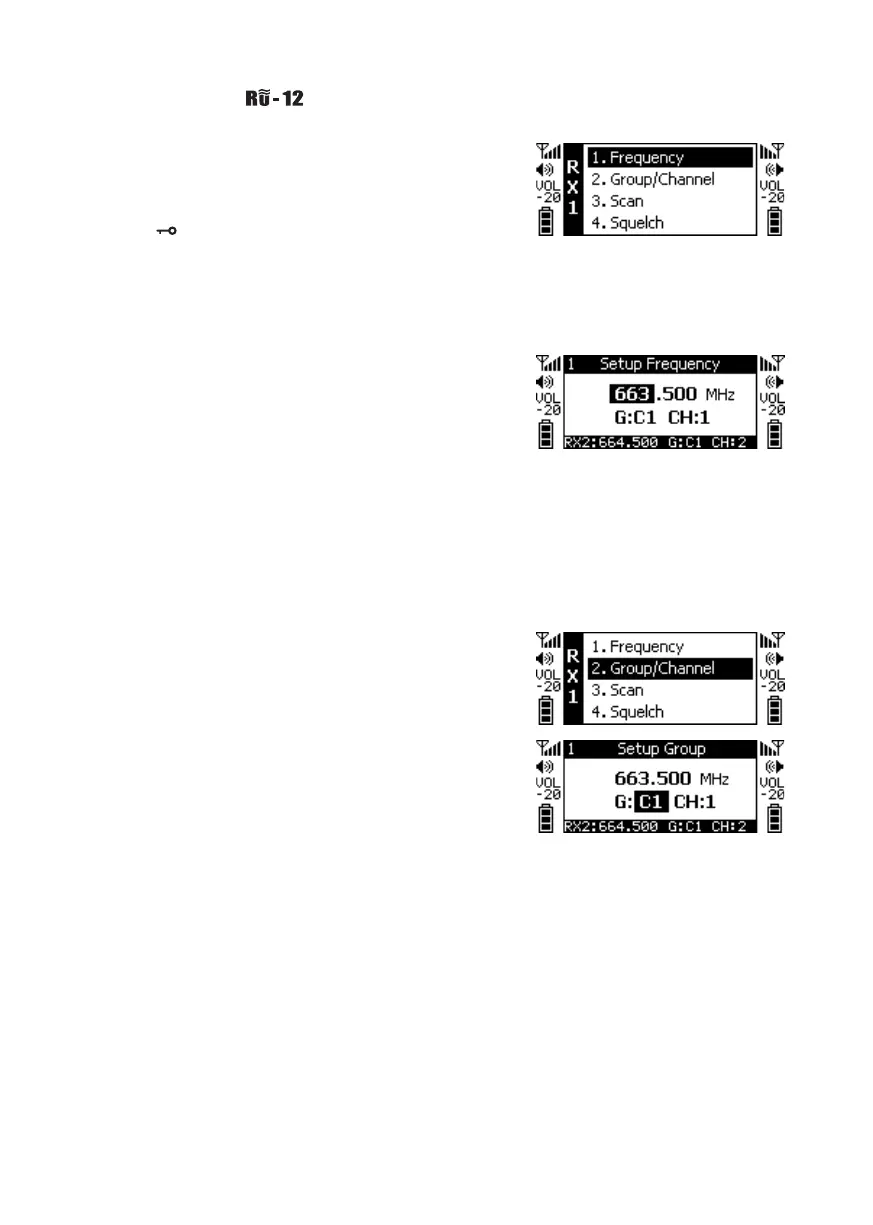

Parameter setting
◎ FREQ: frequency setting
In 1MHz Select frequency with ▲/▼
In 0.025MHz Select frequency with ▲/▼
◎ Group / channel
G: group Select default group 1~6
CH: channel Select default channel, 1~22
maxSelect default channel,
1~22 max
Select the number for group and
then the number for channel.
Select the number of frequency
rst in MHz and then in 0.025MHz.
◎ ATT microphone audio input attenuation
Att oFF No attenuation at audio input
Att on 20dB attenuation at audio input
It shows the audio
input attenuation at
20dB.
Only for PT-850L
6-5 How to use // /
