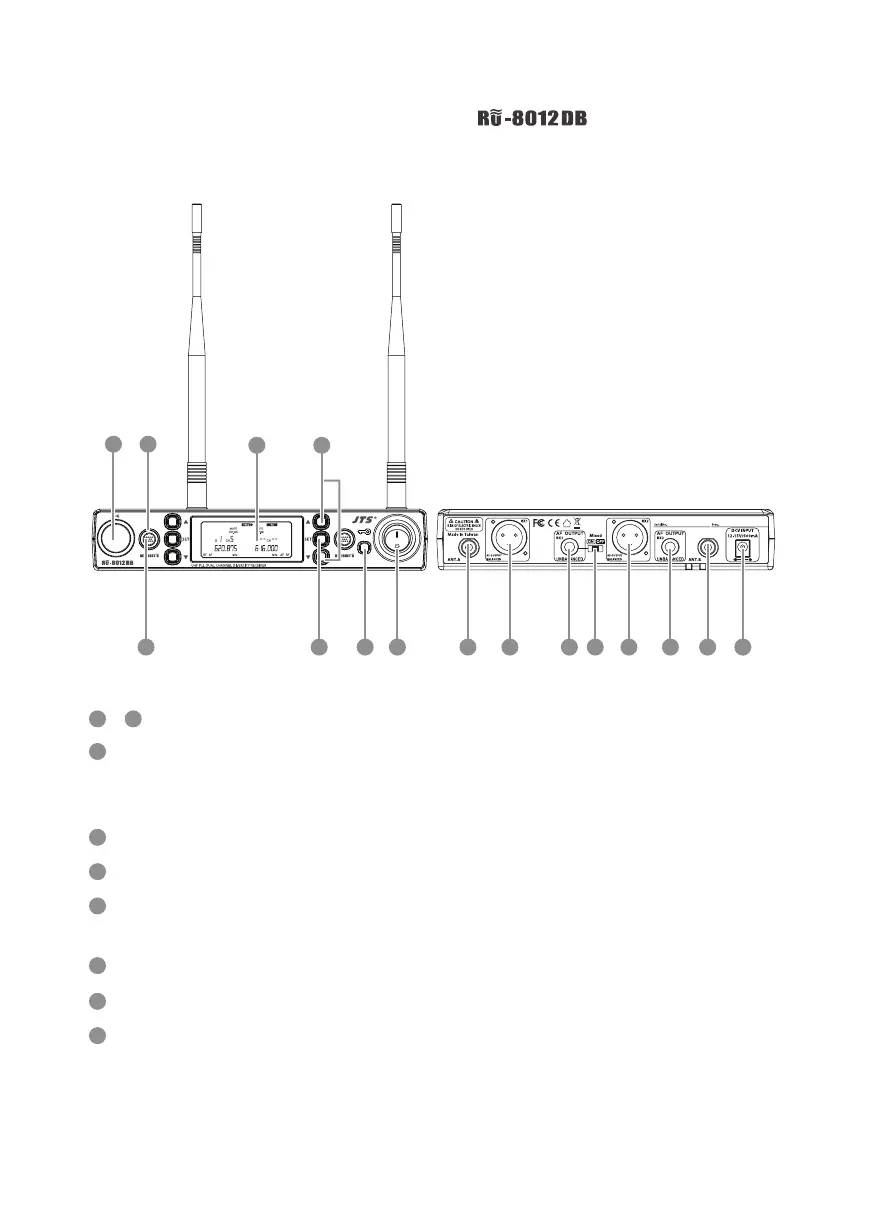

Front panel Rear panel
1
3
2 5
4
9
10 13 15
11
1412
Female BNC antenna port: the 50Ω BNC antenna is connected here. It
also provides a booster power of 12~15 DC / 100mA for an external
antenna booster.
Male XLR (RX1): RX1 balanced audio output jack
Male XLR (RX2): RX2 balanced audio output jack
Mixing: it allows the unbalanced audio signals from RX1 and RX2 to be
mixed to RX1.
6.3mm phone jack (RX1): RX1 unbalanced audio output jack
6.3mm phone jack (RX2): RX2 unbalanced audio output jack
DC power socket: for 12~15V DC / 500mA power supply
9
10
11
12
13
14
15
1 8
~ : See page 8.
78
6 9
4-3 UHF PLL dual-channel diversity receiver //
