24 JUDO QUICKSOFT-DUO
Data Sheet
9.4 Installed dimensions
9.5 Scope of supply
– Softener (control unit)
– Salt container
– Accessories bag
– Installation and operating instructions
– Built-in rotary flange
JQE 1" with threaded fitting
– Backup overflow hose
– Wall support
9.6 Accessories
– Bypass valve JQX (order no. 8735210)
– Hardness measuring equipment JGHP
0-37.5°e (order no. 8742120)
– Extension quick set JQR for series
connection of two JUDO units (e. g. filter
and softener) to a pipe connection
(order no. 8250041)
– Wall bracket for salt container
(order no. 8733066)
9.6.1 Protective measures against
corrosion
If water has a water hardness of 0 °e plastic
pipes or corrosion resistant pipes should be
laid. In the case of water with partial
softening (approx. 10 °e), zinced pipes and
copper pipes can be laid.
Our recommendation:
Install a JUDO JULIA metering pump in the
mixed water pipe downstream of the
softener, in order to proportionately enrich
the water with a JUL mineral solution.
The JUL mineral solutions contain active
components, which stabilise the residual
carbonate constituents and create the pre-
requisites for developing a homogeneous
protective layer in downstream pipe sys-
tems. These active ingredient components
correspond to the prescribed type, quality
and quantity in Art 11 TrinkwV 2001 treat-
ment substances and disinfection methods.

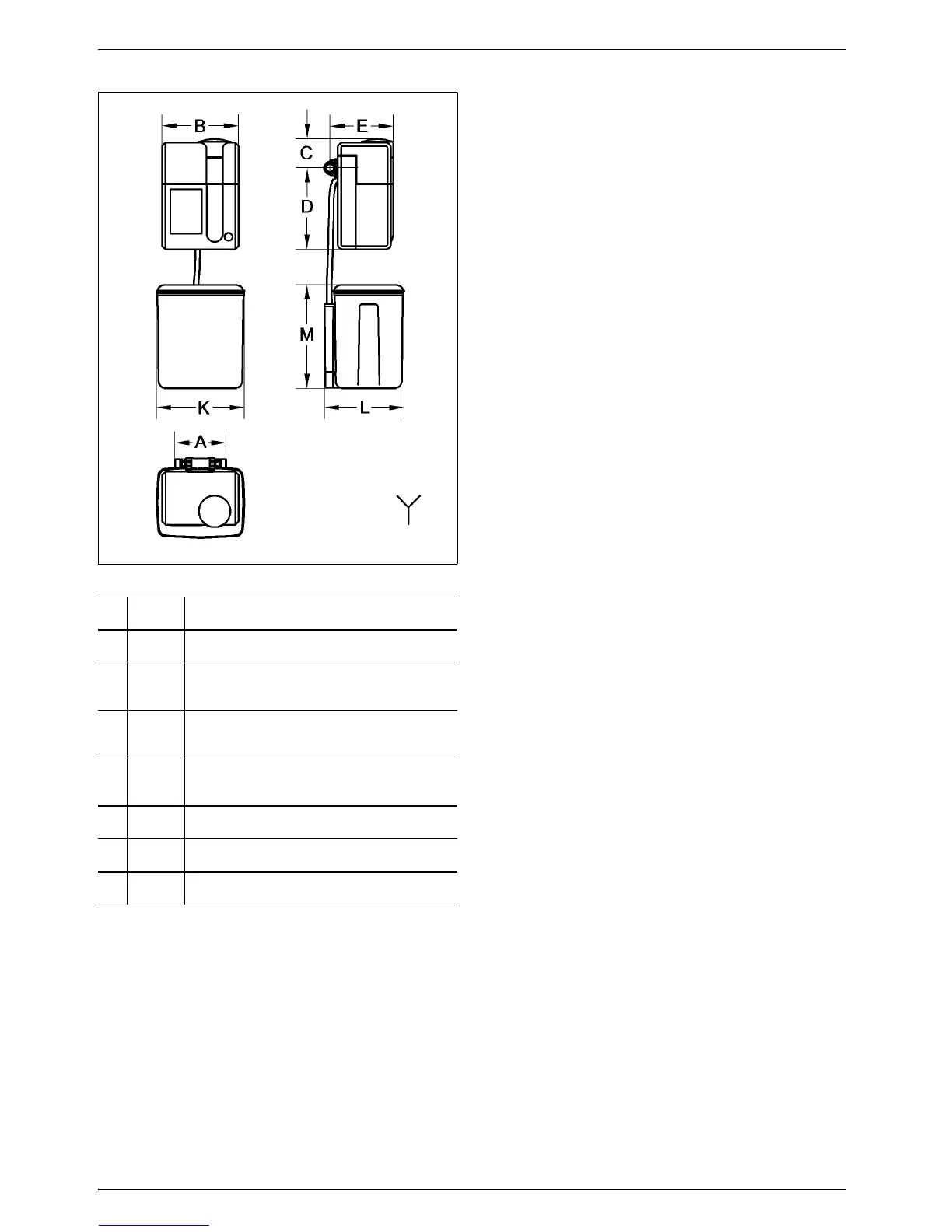

Fig. 17: Installing dimensions
A 195
Installation length
B 340 Width of the control unit
C 130
Height of the control unit
above pipe centre
D 360
Depth of the salt container
below pipe centre
E 275
Installation depth without
bypass valve up to pipe centre
K 390 Width of the salt container
L 360 Depth of the salt container
M 460 Height of the salt container
All dimensions in [mm](see Fig. 17)
