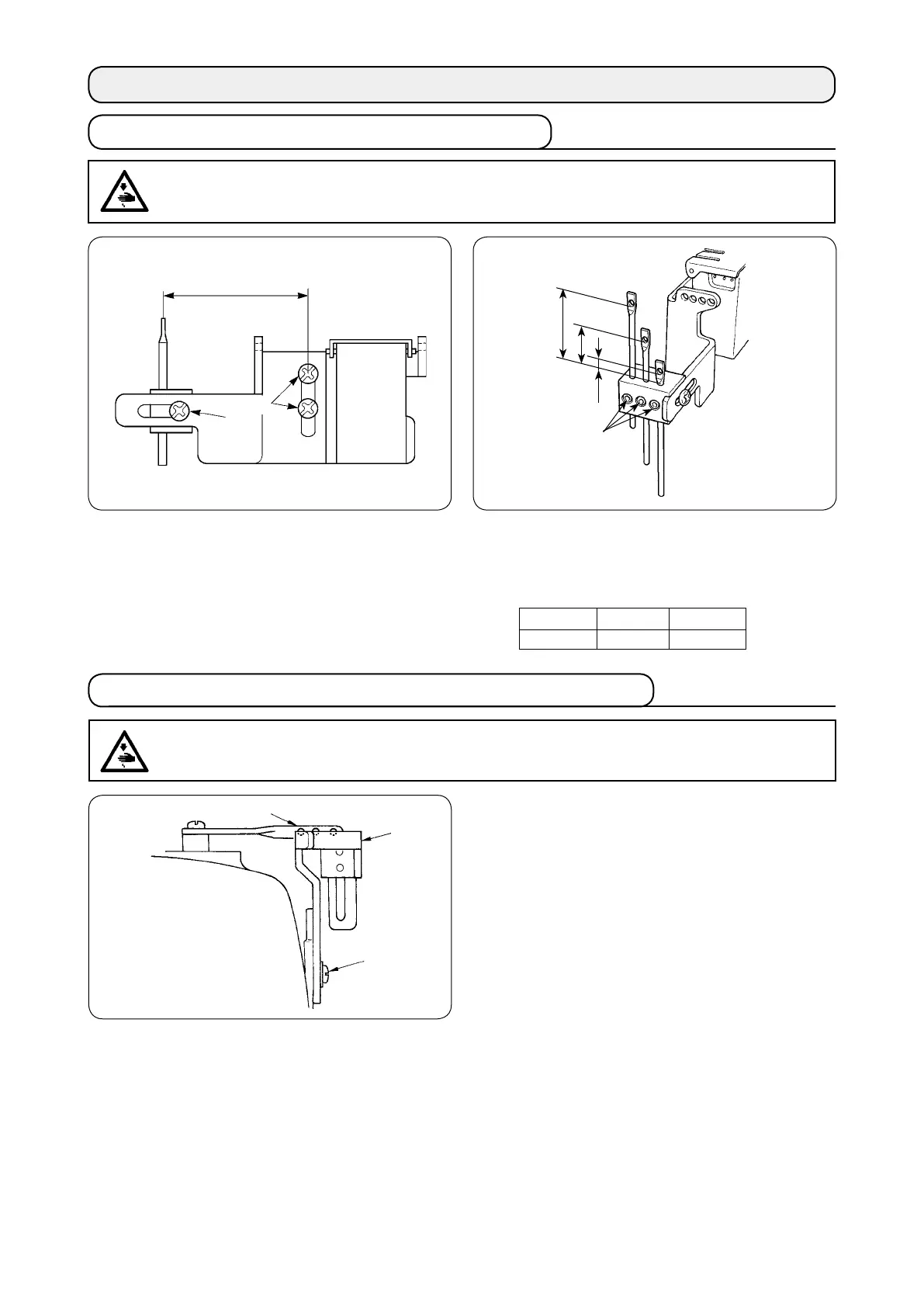

ADJUSTING THE SEWING MACHINE
1) Loosen setscrews
and shift them to the lower-
most position. Then, tighten setscrews
.
2) Loosen setscrew
. Move the needle thread guide
bar to adjust so that a distance of 29 mm is provid-
ed between its center and the center of screws
.
Then, x the needle thread bar at that position with
setscrew
.
1. Adjusting the silicon container thread guide
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the follow-
ing work after turning the power off and ascertaining that the motor is at rest.
3) Loosen setscrews
and adjust so that the heights
of the respective needle thread guide rods are the
dimensions as shown in the illustration. Then tight-
en screws
to x the thread guide rods.
A B C
29mm 17mm 5mm
Loosen setscrew
and adjust so that the bottom end to
the center of the thread hole of needle bar thread take-
up
aligns with the top end of needle bar thread take-
up thread receiver
when the needle bar is in its lowest
position. Then tighten screw
to x the needle bar thread
take-up thread receiver.
2. Adjusting the needle bar thread take-up thread receiver
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the follow-
ing work after turning the power off and ascertaining that the motor is at rest.
C
B
A
29 mm
