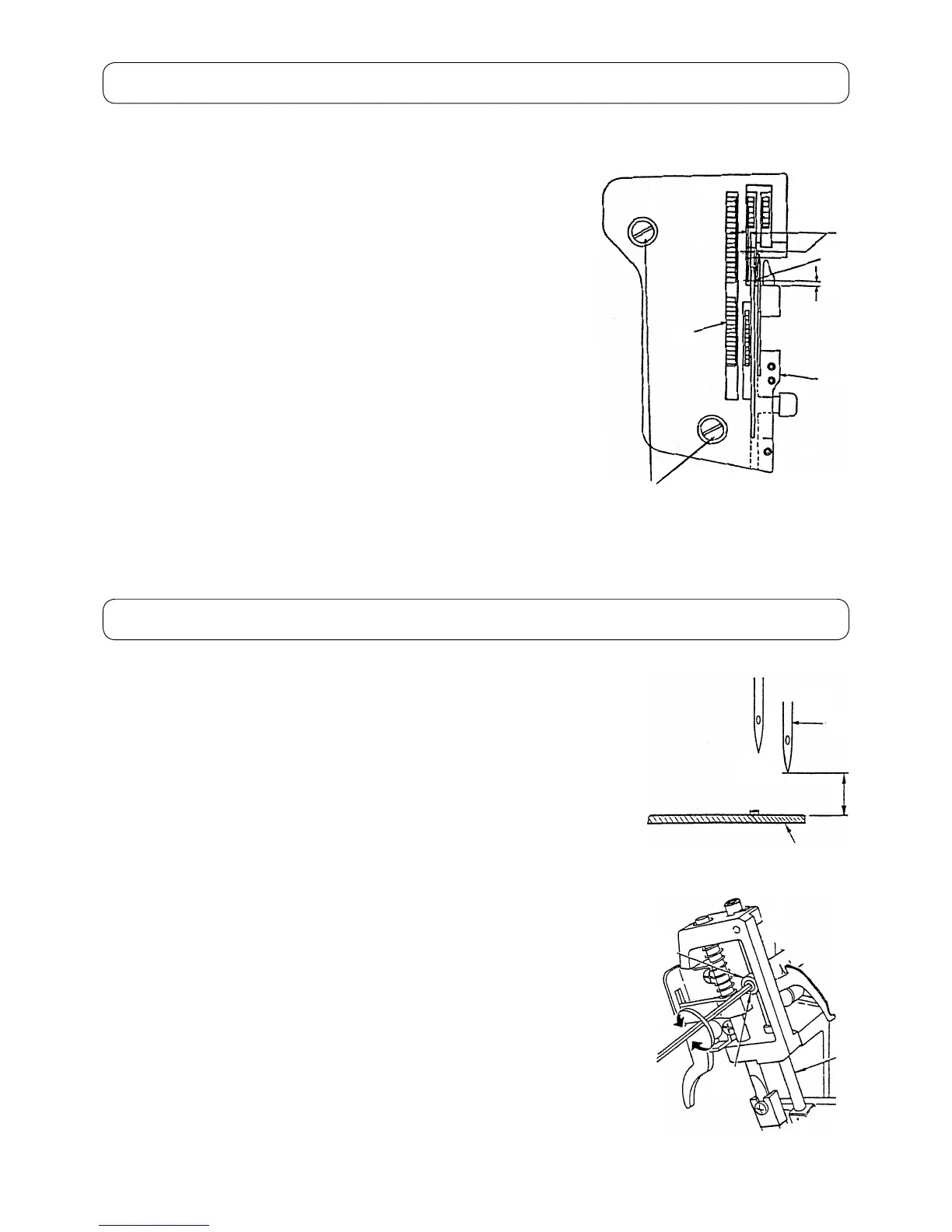

3. Installation of throat plate
4. Height of needle bar
[Checking items]
1
Throat plate
2
Setscrew
3
Feed dog
4
Center of needle entry
* Check that all needles are laterally equidistant with respect to the nee-
dle slot
A
in the throat plate
1
.
* Check that the distance between the needle center and the front edge
of the needle slot
A
in the throat plate
1
is 1.4 mm
B
.
[How to perform adjustment]
○ Loosen the setscrew
2
. Carry out the adjustment by moving the throat
plate
1
as described below:
a) The feed dog
3
teeth are parallel to the slots in the throat plate
1
.
b) The needles are spaced equidistantly with respect to the needle
slot
A
in the throat plate
1
.
c) The distance between the needle center and the front edge of the
needle slot
A
in the throat plate
1
is 1.4 mm
B
.
○ Tighten the setscrews
2
.
[Checking items]
1
Needle
2
Throat plate
* Check that the distance between the top surface of throat plate
2
and the
needle
1
point with the needle bar at the highest point of its stroke is 10.1 ±
0.15 mm
A
.
[How to perform adjustment]
○ Loosen the setscrew
B
of the needle bar connection
C
slightly.
(The needle bar should not slip down.)
○ Turn the handwheel to allow the needle bar
D
to reach the highest point of
its stroke.
○ Move needle bar
D
up and down by hand to adjust dimension
A
is obtained.
○ Tighten the setscrew
B
.
* Check the position of needle entry of the left needle and right needle to the
throat plate
2
.
* Check the clearance between the needle
1
and the looper, and the clear-
ance between the needle
1
and the needle guard.
* The right needle is at the center position of the needle bar, but the left needle
is offset on the left side from the center of the needle bar.
The position of the left needle moves back and forth by turning the needle
bar.
4
B
A
3
2
1
D
C
B
2
1
A
