1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
29
24
25
26
27
283031323334
36
37
35
38
39
40
44
43
45
46 47 48
41
42
23
22
21
20
19
18
69
65
68
67
64
6362
61
60
59
58
57
56
55
54
53
52
51
50
49
66
16
17
No.
Description
No.
Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
Caster
Base
Compressor Shim
Nut
Compressor
#1 Gas-outlet Pipe
Anti-shake Rubber for Gas-outlet Pipe
#2 Gas-inlet Pipe
#1 Gas-inlet Pipe
Four-way Valve
Anti-shake Rubber for Gas-inlet Pipe
Pipe
Air Duct (Left）
Fan Motor Wheel
Air Duct (Right）
Fan Motor （E）
Wire Clip
Drainage Plug
Water-containing Tray
Water-level Switch
Water-splashing Wheel
Holder for Water-splashing Wheel
Water-splashing Motor
Cover for Water-containing Tray
Foam
Condenser Unit
Capillary
Filter
Side Panel for Exchanger (Left)
Side Panel for Exchanger (Right)
Evaporator Unit
Coil Clip
Safety Net
Foam
Driven coupler
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
Step Motor
Air Exhaust Duct
Connector for Reflective Sheet
Driven coupler
Shaft Sleeve
Front Panel
Supporting Bar
Reflective Sheet (Bottom)
Reflective Sheet (Middle)
Reflective Sheet (Up)
Film
Control Panel
Display Panel
Baffle board for air duct
Electric Box
Separator
Electronic control board
transformer
Electric control box cover
Sensor assembly
Fan Motor Fixture
Capacitor Fixture
Compressor Capacitor
Back Panel
Power Cord
Power Cord Holder
Filter （Small）
Filter （Big）
Air-inlet Grill
Remote Control
Flat Nozzle
Air Exhaust Duct
Air Exhaust Duct Connector
Slide bar

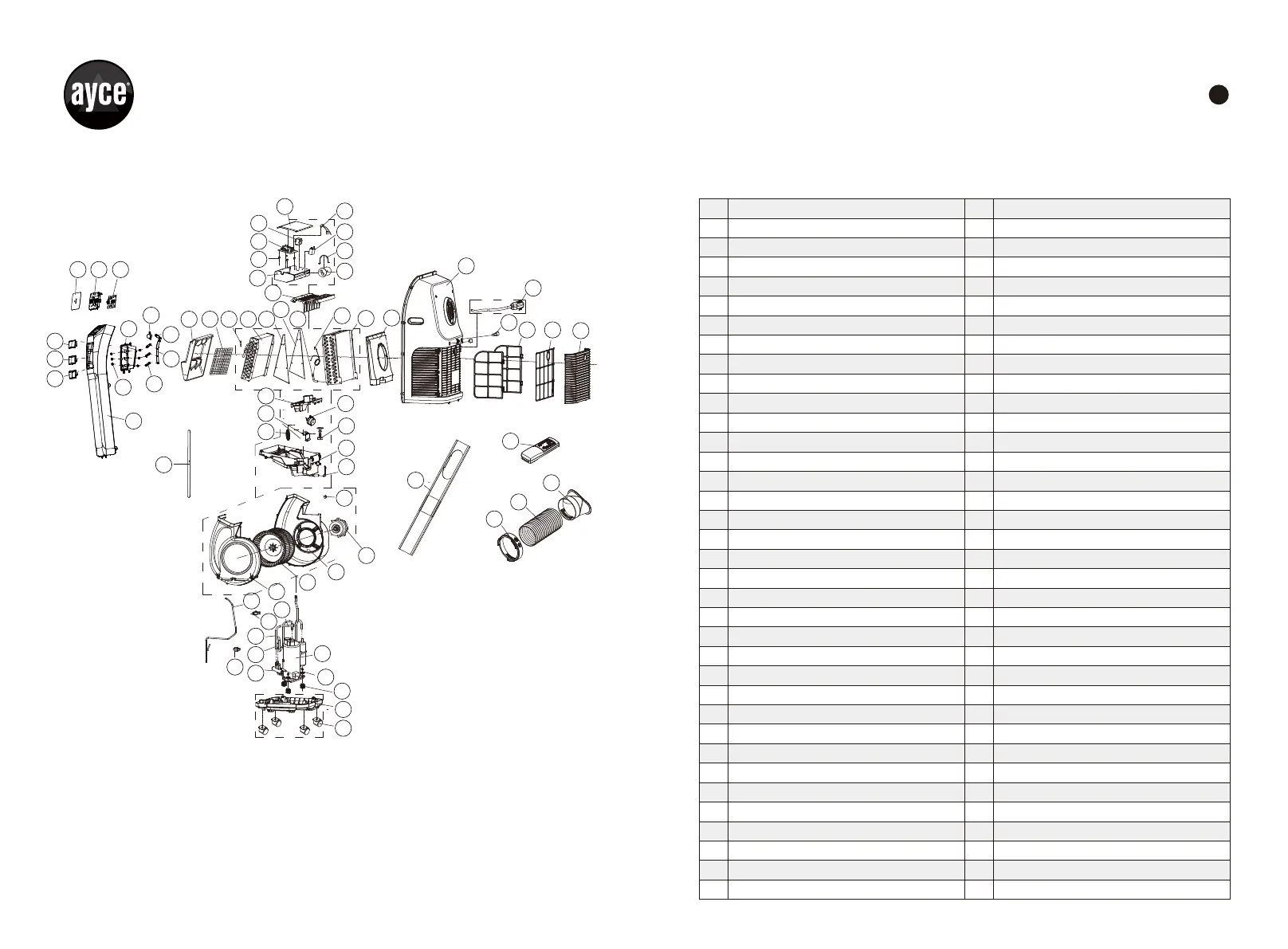

SPARE PARTS LISTTECHNICAL DRAWING
GB
78 | 79
