INSTALLATION
Do not install and use the portable air conditioner in the bathroom or
other humid environments.

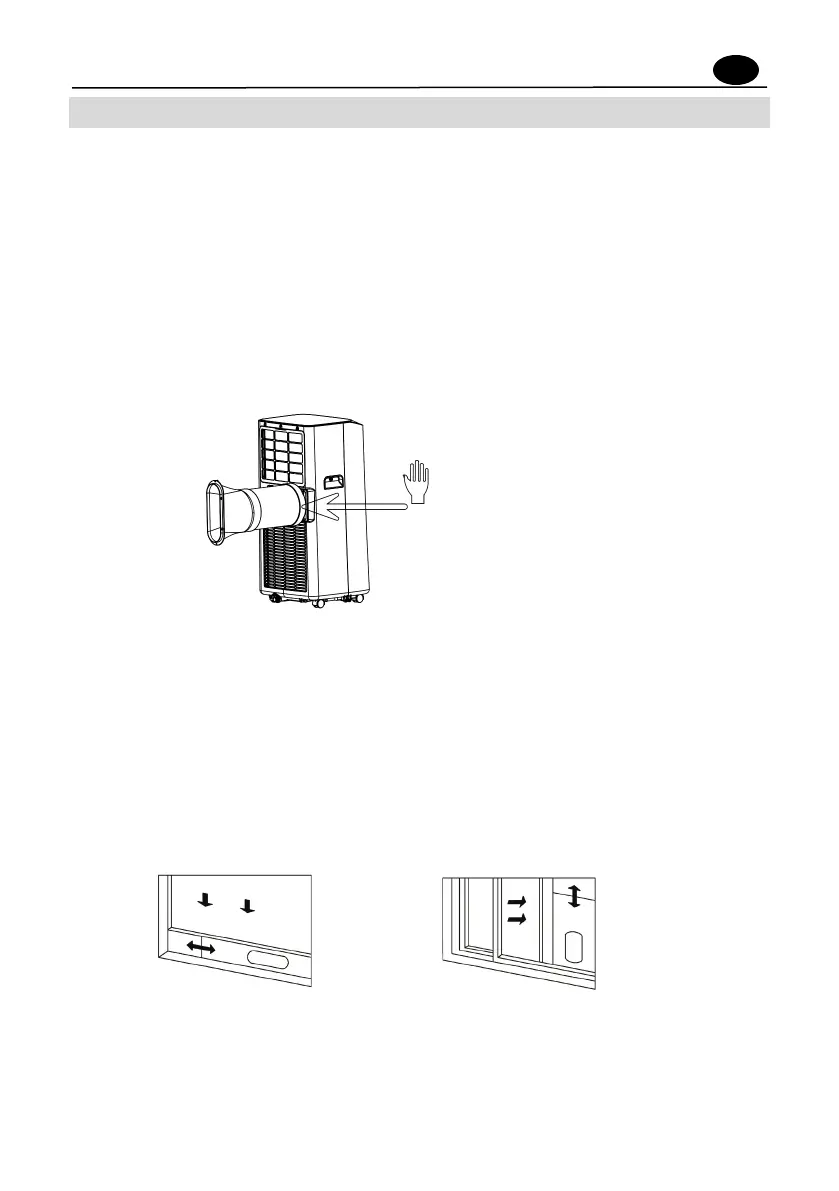

1. Install the Exhaust pipe assembly (as shown in Fig.1)
1.) Spin Window sealing plate connector into exhaust hose first,
then spin the exhaust hose into exhaust connector (counter-
clockwise).
2.) Insert the exhaust pipe assembly (the end of the exhaust joint)
into the back-panel vent slot (push to the left) and complete the
assembly.
PUSH
Fig. 1
2. Install the window sealing plate assembly
1.) Half open the window, and mount the window sealing plate
assembly to the window (as shown in Figure 2 and Figure 3), the
assembly can be placed in horizontal and vertical direction.
2.) Pull various components of the window sealing plate assembly
open, adjust their opening distance to bring both ends of the
assembly into contact with the window frame, and fix various
components of the assembly.
Fig 2 Fig 3
3. Install the body
1.) Place the machine on flat and dry ground, and keep it far from
around things at least 50cm. (as shown in Fig 4)
