Instruction manual
69 11/2019

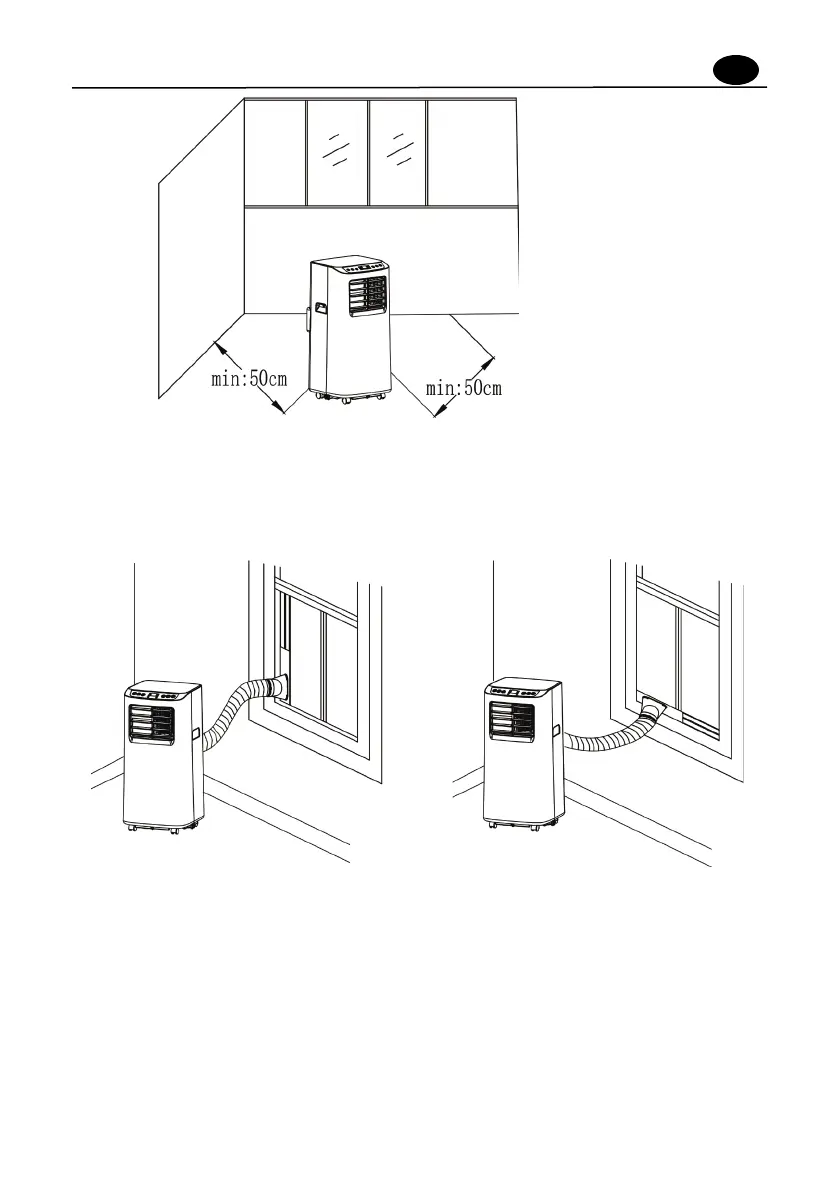

Fig 4
2.) Insert the air exhaust hose into the window sealing plate, adjust
opening width of window so that the window can match with
the sealing plate properly, length of the sealing plate is
adjustable. (as shown in Fig. 5 and Fig. 6)
Fig.5 Fig.6
Warning:
1. Length of exhaust pipe according to the machine features, please
don’t replace or lengthen it freely, otherwise errors will be easily
caused.
2. While adjusting the upper and lower wind-guide strips of the air
outlet, pluck it with hands gently to avoid damaging wind-guide
strips.
