8

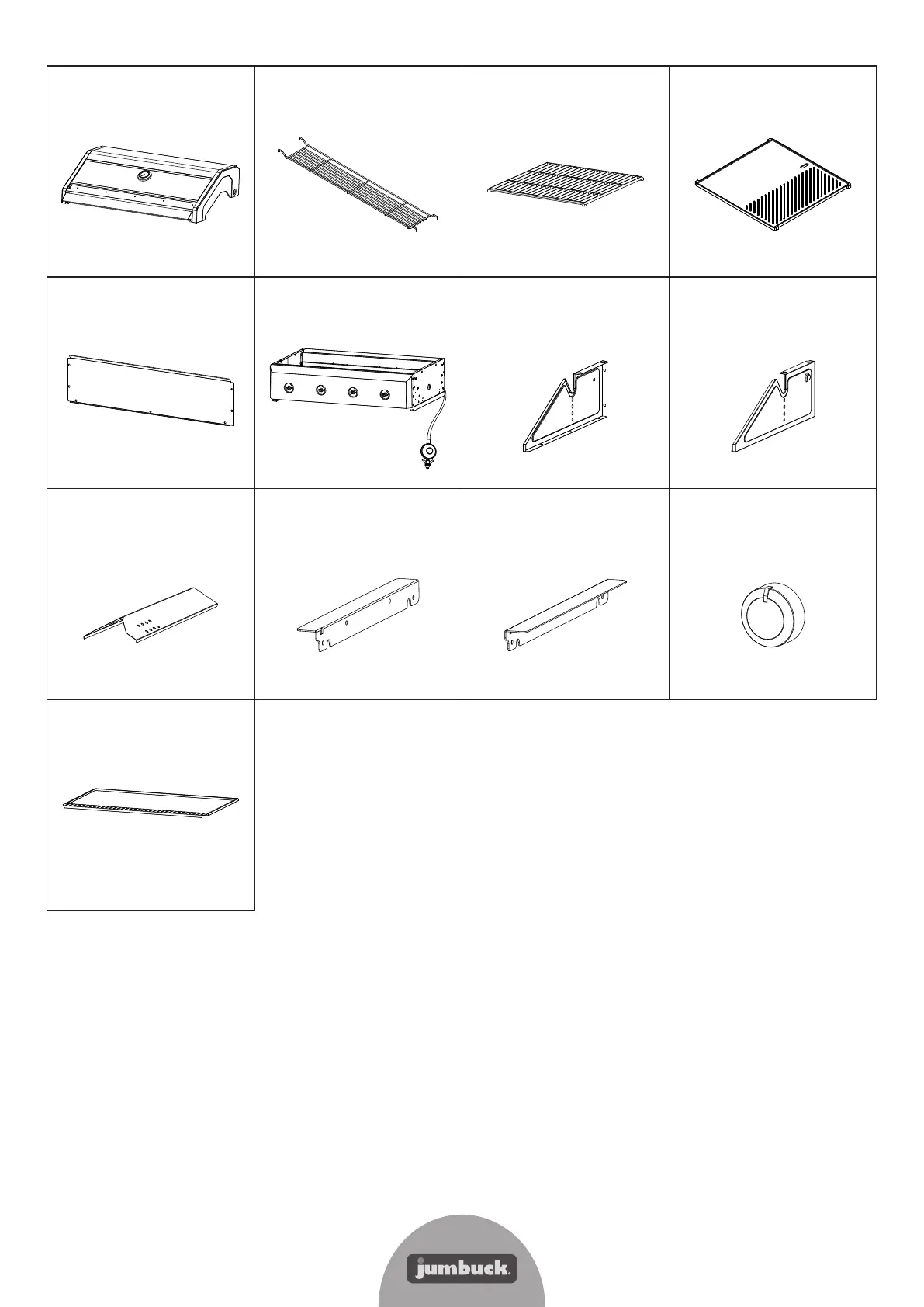

1 Hood 2 Warming rack 3 Cooking grill 4 Hotplate
5 Firebox rear panel 6 Firebox
7 Firebox side panel
- left
8 Firebox side panel
- right
9 Flame tamer X 2 12 Control knob X 4
13 Grease tray
10 Support plate
- left
11 Support plate
- right
