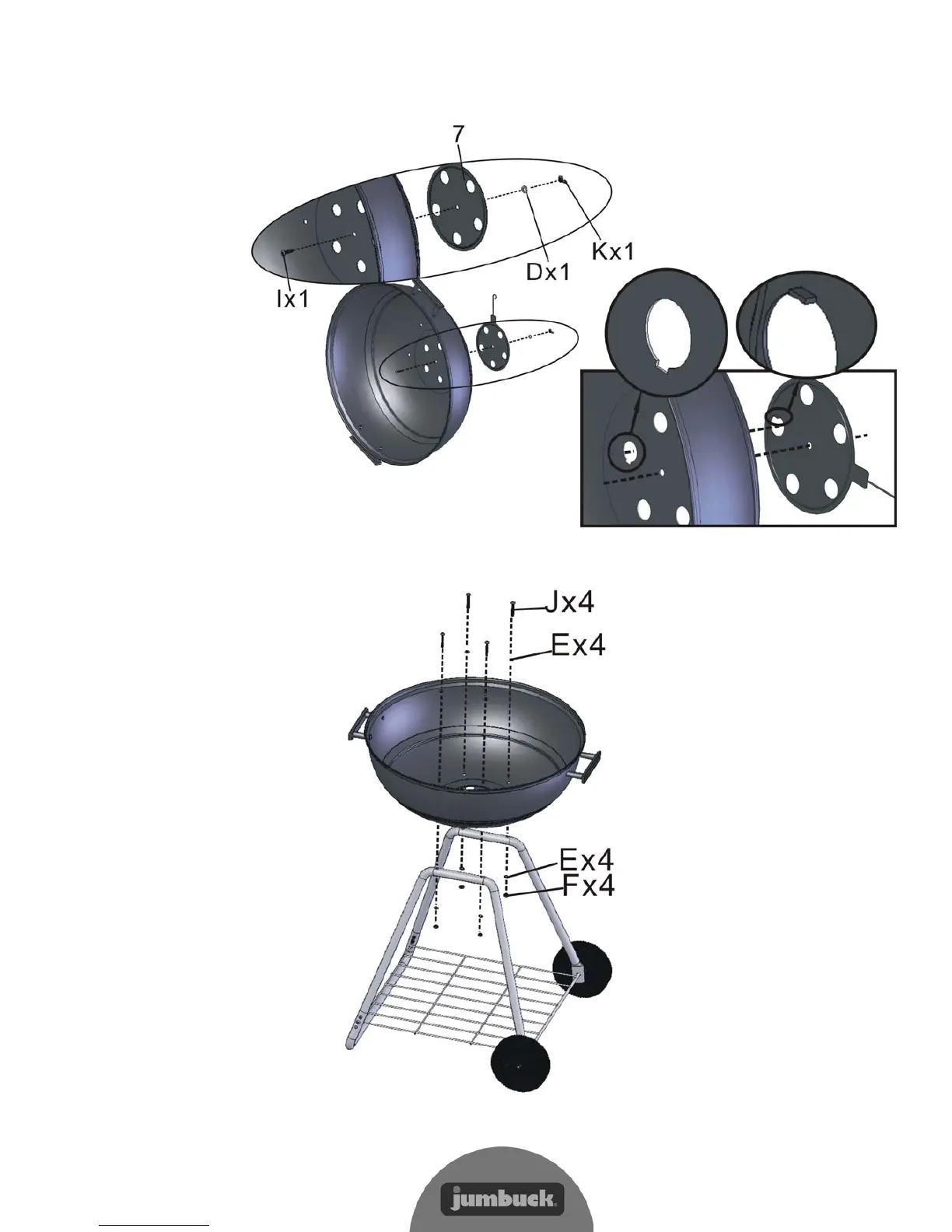

STEP 4
Assemble Air valve (Par
t 7) to the Pa
n as shown, use bolt, nut to tighten.
STEP 5
Assemble Pan to the legs as shown, use Lock washer C (x, 4), Nut F(x, 4), Flat
washer E(x, 4), Bolt J(x, 4) to tighten.
7
9
4
