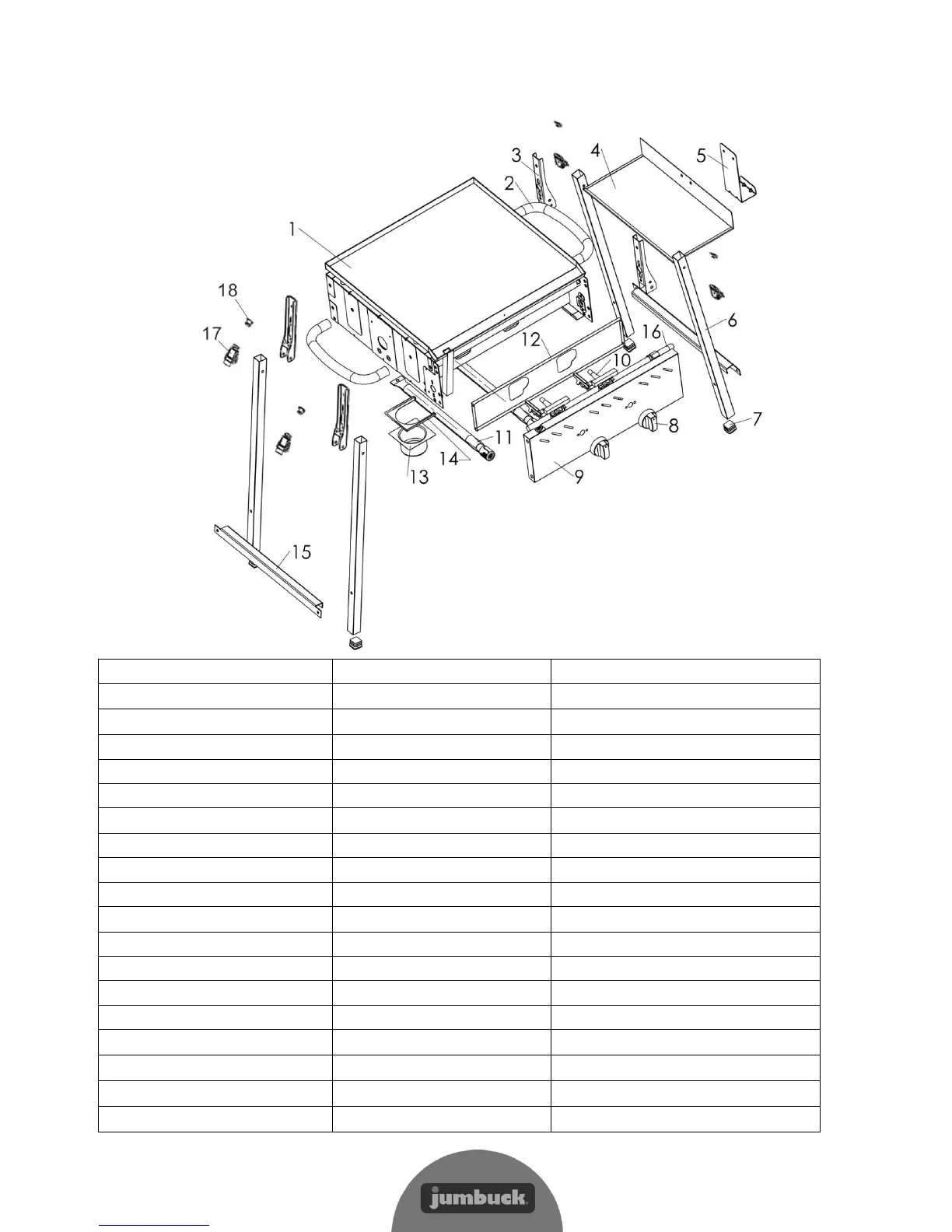

EXPLODED VIEW AND PARTS CODE
Parts Number
Parts Name
Parts Code
1
BBQ Body
GG007JB01
2
Body Handle
GG007JB02
3
Leg Support 1
GG007JB03
4
Cylinder Shield
GG007JB04
5
Cylinder Hook
GG007JB05
6
Leg
GG007JB06
7
Leg Plastic Insert
GG007JB07
8
Knob
GG007JB08
9
Control Fascia
GG007JB09
10
Gas Valve
GG007JB10
11
Burner
GG007JB11
12
Fixing Plate
GG007JB12
13
Oil Cup
GG007JB13
14
Oil Cup Support
GG007JB14
15
Leg Support 2
GG007JB15
16
Gas Manifold
GG007JB16
17
Buckle
GG007JB17
18
Buckle Lock Support
GG007JB18
