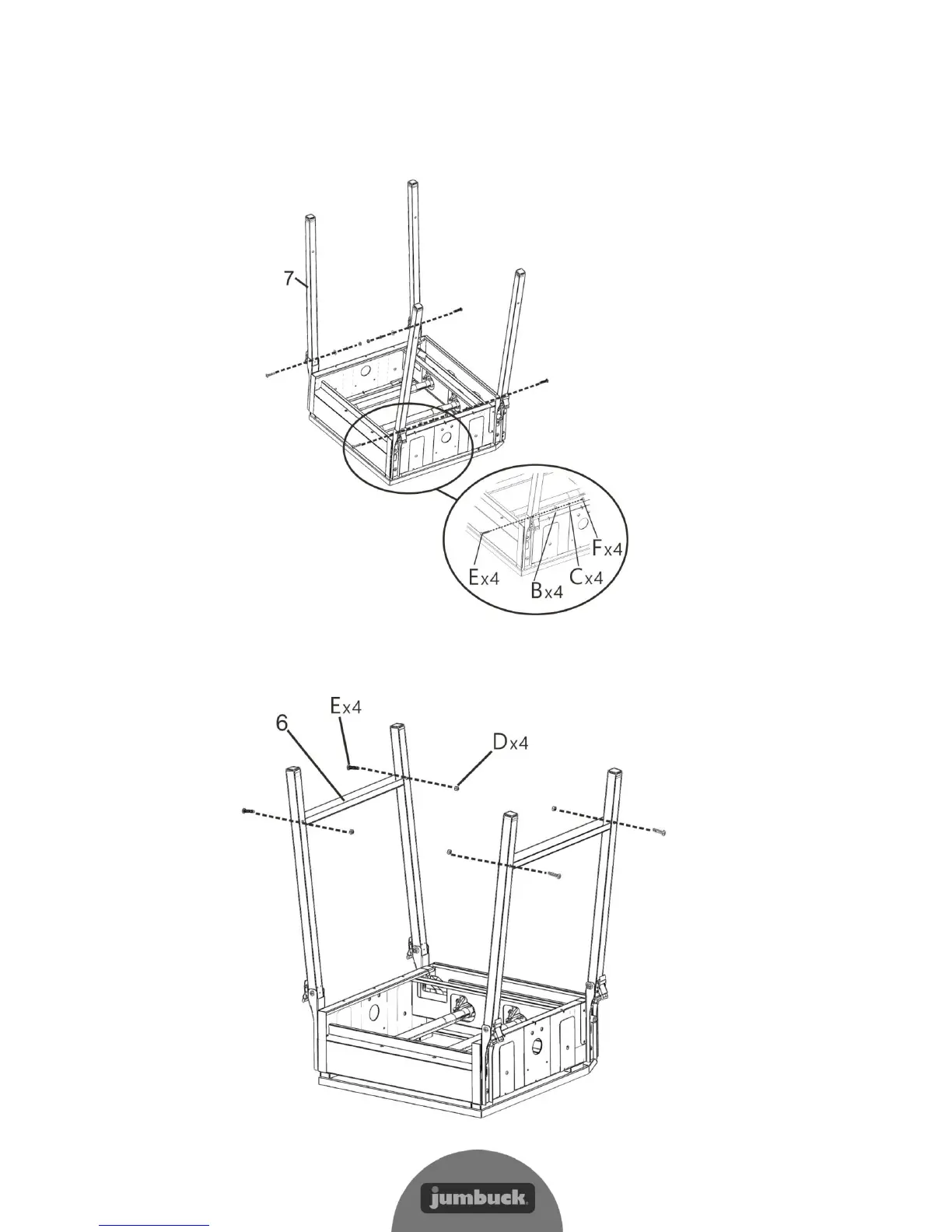

Step 2

Attach Leg (Part 7) onto Leg Support 1 (Part 5) by using M6x40 bolt (Part E x 4), flat washer (Part B x 4), lock

washer (Part C x 4) and lock nut (Part F x 4), as per illustration below.

Step 3

Attach Leg Support 2 (Part 6) onto Leg (Part 7) by using M6x40 bolt (Part E x 4) and nut (Part D x 4).
