Step
Step Step
Step 3
33
3

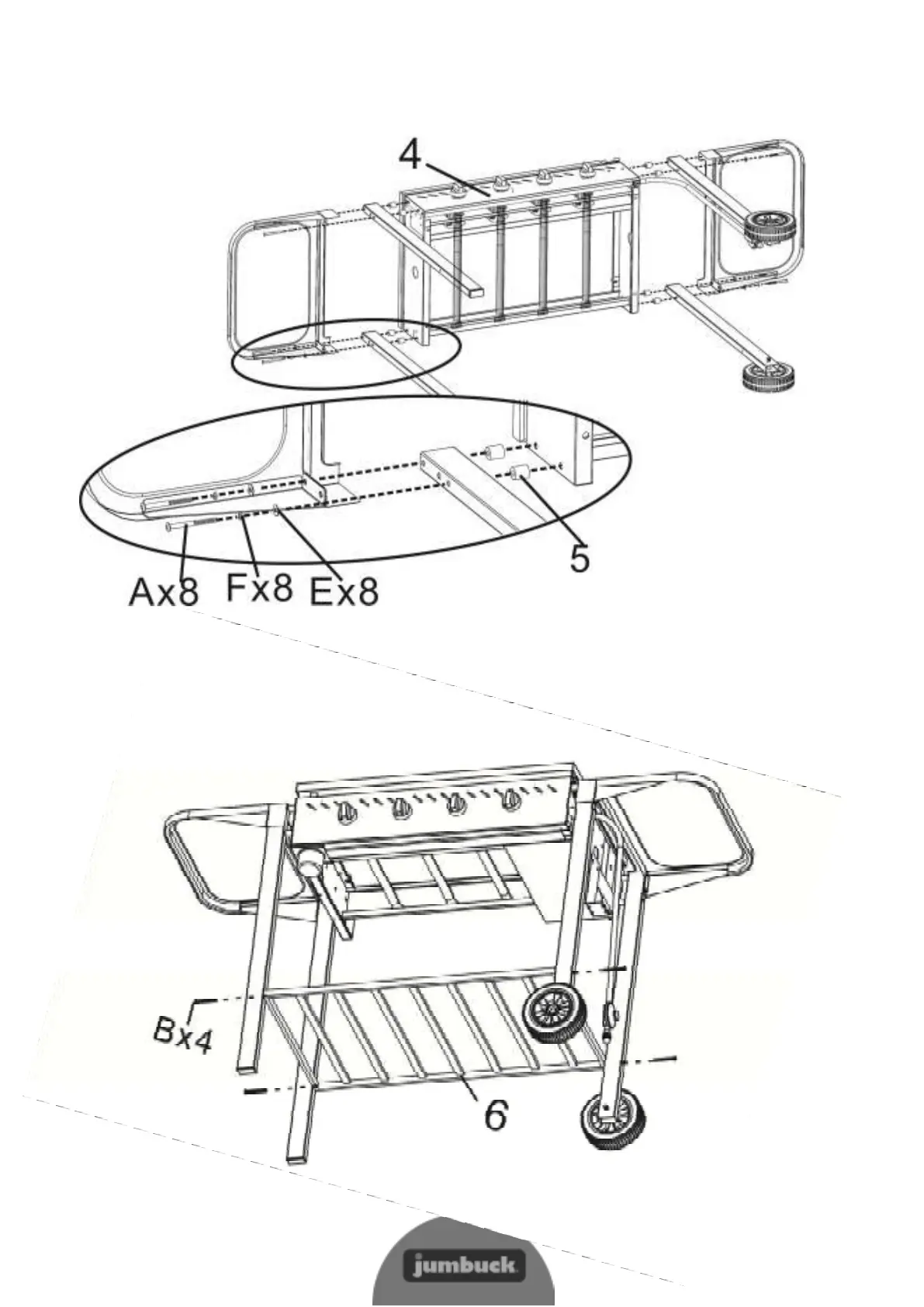

Assemble side shelves and legs to the BBQ body (part 4) as per illustration below.
Step
Step Step
Step 4
44
4
Assemble bottom shelf (part 6) as per illustration below.
