Step
Step Step
Step 5
55
5

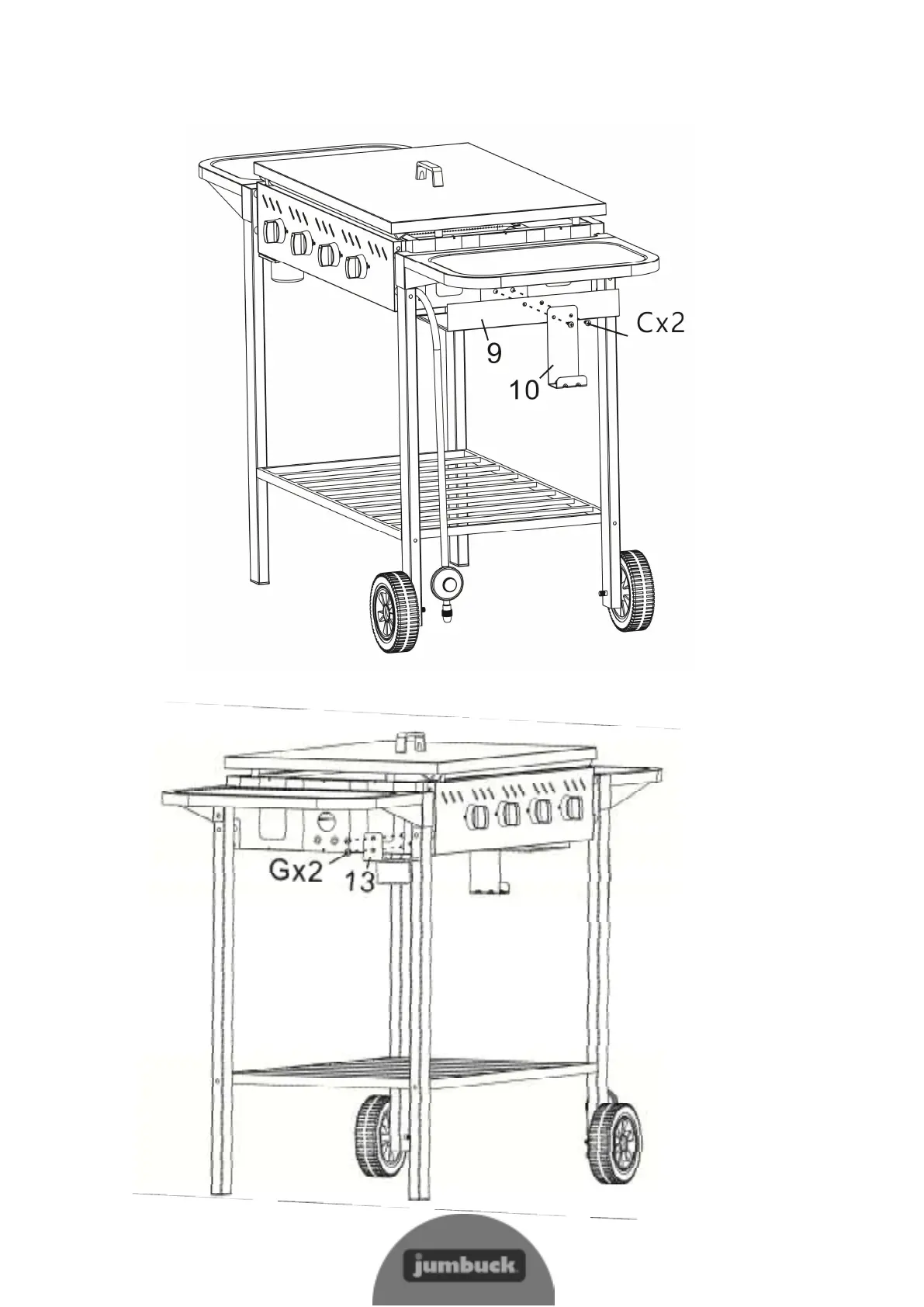

Assemble cylinder insulation (part 9) and cylinder hook (part 10) as per illustration below.
Step
StepStep
Step
6
66
6
Assemble the oil cup support (13) to the BBQ body as per illustration below.
