Jumbuck HS-Gens-310 - Page 4

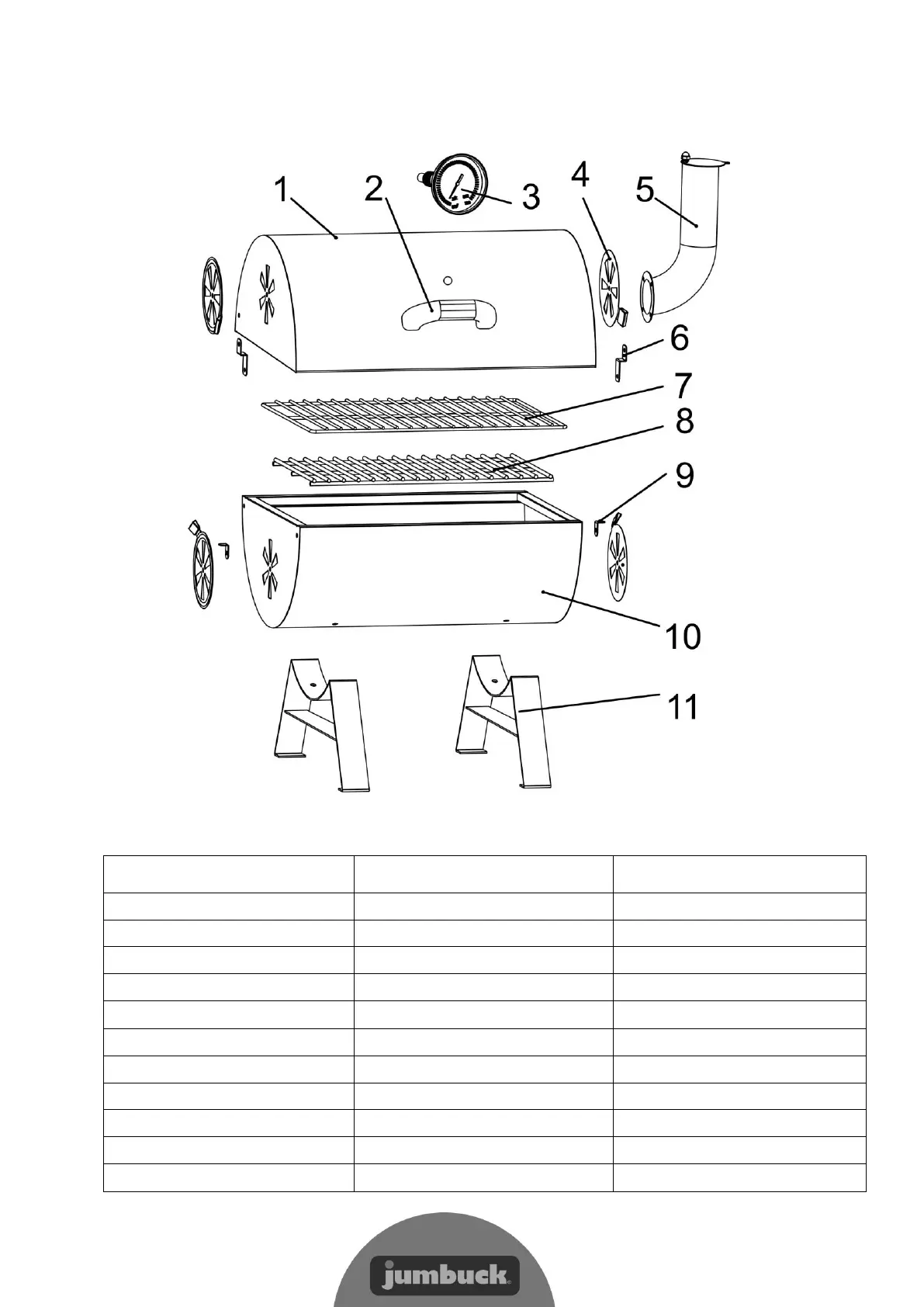

EXPLODED VIEW
PARTS CODE
Parts Number
Parts Name
Parts Code
1
Hood
GEN-310-01
2
Hood Handle
GEN-310-02
3
Temperature Gauge
GEN-310-03
4
Air Vent
GEN-310-04
5
Chimney
GEN-310-05
6
Hood Hinge
GEN-310-06
7
Cooking Grill
GEN-310-07
8
Charcoal Grid
GEN-310-08
9
Hood Hinge Support
GEN-310-09
10
BBQ Body
GEN-310-10
11
Leg
GEN-310-11
