Jumper T8SG Lite - Page 2

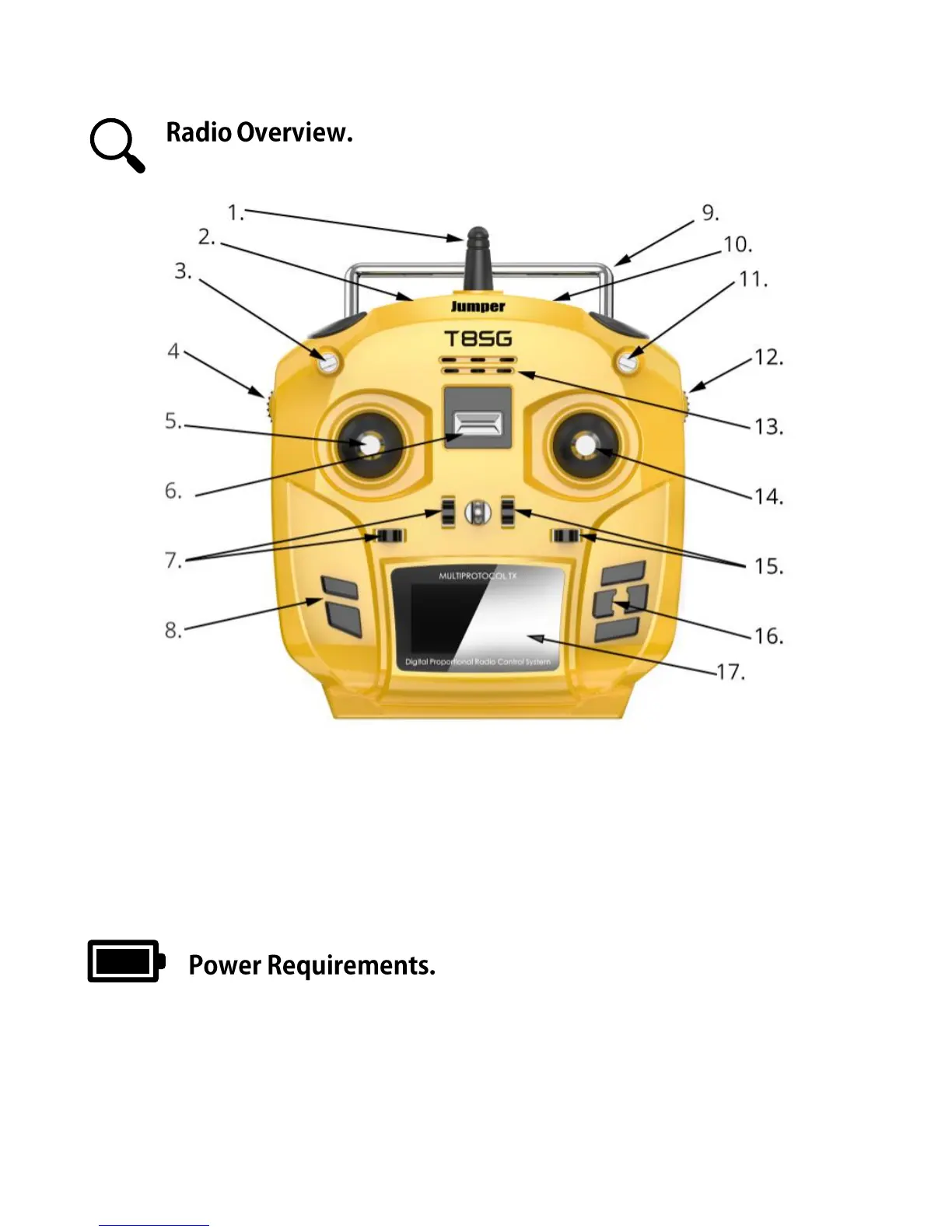

1: Antenna
2: 3.5mm Trainer port
3: 3 Pos Switch
4: Left Scroll wheel
5: Left Gimbal
6: Power on/off
7: Left Gimbal Trims
8: Enter & Select
9: Handle
10: USB Port
11: 3 Pos Switch
12: Right Scroll wheel
13: LED Status
14: Right Gimbal
15: Right Gimbal Trims
16: Menu keys
17: LCD Screen
The T8SG lite uses 4 x AA Batteries (Batteries not included). Alkaline, Nicad or NiMH batteries are suitable for use in this
radio. If Using Alkaline batteries, it is recommended to remove the batteries if the radio will not be used frequently or for
any length of time to avoid any corrosion damage from leaking batteries.
