14
L
LM
M

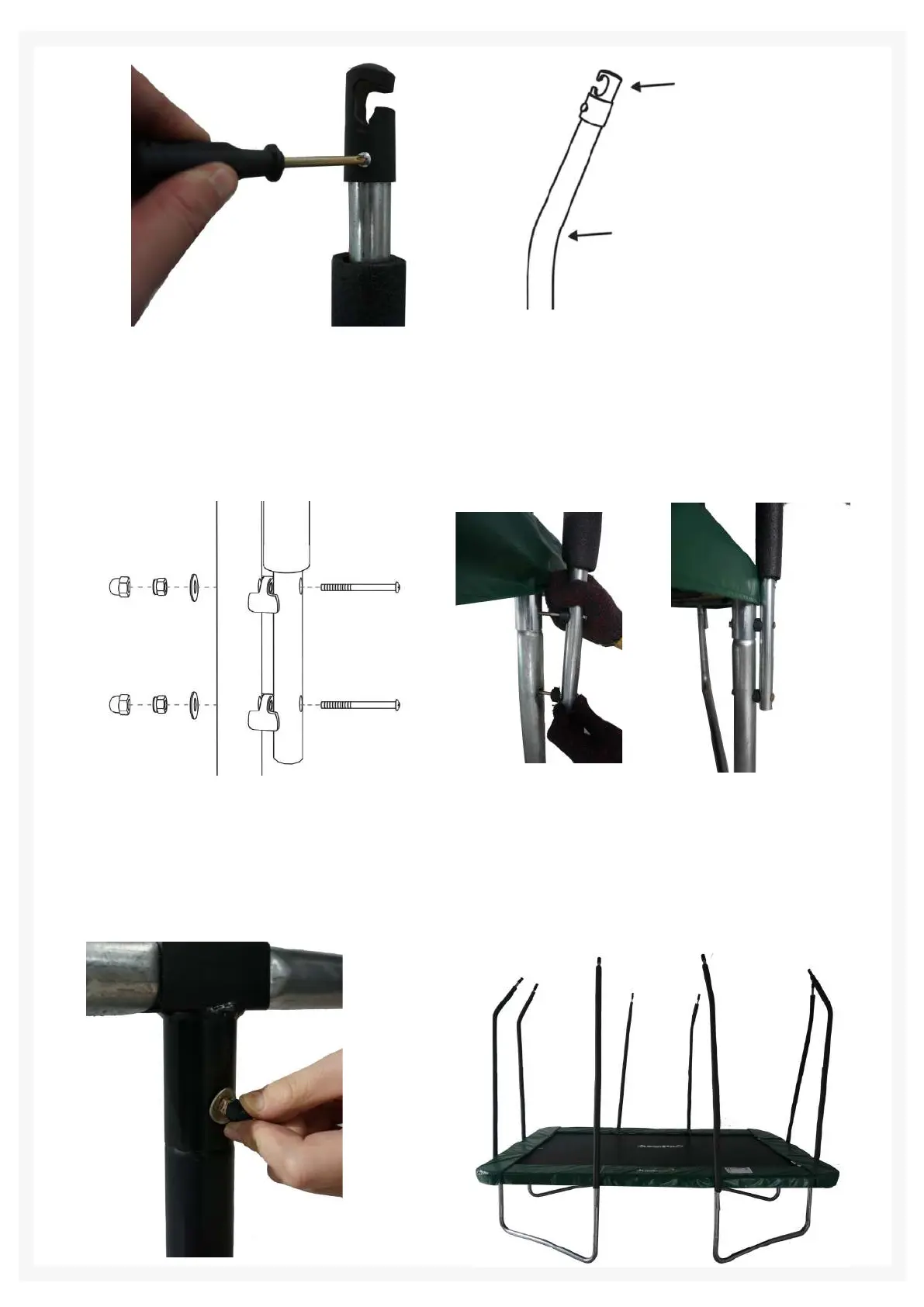

15. Attach the top enclosure pole caps (U) to the top of the enclosure poles (S), fasten with the
screws (T) and screwdriver (O).
IMPORTANT: Refer to the picture (IMAGE (A) above, to clearly see which way round to attach
the pole caps, the opening of the pole cap has to be on the same side as the outside bend of
the top enclosure pole facing outwards.
IMAGE (A)
16. Insert the fork screws (L) through the bottom enclosure poles (R). Use the plastic spacer,
supplied with the fork screws in between the bottom pole tubes and leg extensions. Tighten the
nuts of each fork screw with the bolts and spanners provided. Screw the screw caps (M) onto the
back of each nut of fork screws for protection.
